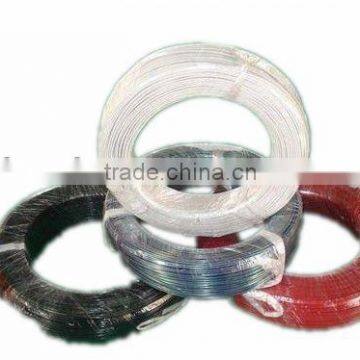

Solar PV Cable / VDE TUV certified DC solar cable

Specifications

Solar PV Cable
1. TUV certified & VDE
2. XLPE double insulated
3. 0.6/1KV & -40~+90 deg C
4. Tinned copper strand



PV1-F 35mm2  Specification

• Rated temperatur: 90°C
• Max. temperature: 120°C
• Rated Voltage: 0.6 ~ 1.0 kv
• Color: Inner white outer black
• Conductor: Tinned copper 266/0.40 stranded 8.54±0.25mm
• Inner Insulation: XLPE white, thickness: 0.66~0.93mm
• Inner Dia.: 10.4±0.3mm
• Outer Insulation: XLPE black, thickness: 0.50~0.70mm
• Outer Dia.: 11.8±0.4mm
• Application: Connection wiring for solar PV power system and PV inverter, and also can be used as underground feeder cable.
• Reference Standard: TUV 2 Pfg 1169/08.2007

Electrical Characteristics:

• Max DC Conductor Resistance at 20°C (Ω/km):  0.565
• Min. Insulation DC Resistance(Mohm.km):  10.0
• Dielectric Strength(KV/min):  AC6.5/DC15



Mechanical Characteristics:



Test Object: Insulation

• Test Material: XLPE
• Before Tensile Strength (N/mm2) ≥6.5
• Aging Elongation (%) ≥125
• Aging Condition (°C) 150±2°C×168H
• After Tensile Strength (N/mm2) ≥70% of original
• Aging Elongation (%) ≥70% of original



Test Object: Jacket

• Test Material: XLPE
• Before Tensile Strength (N/mm2) ≥8.0
• Aging Elongation (%) ≥125
• Aging Condition (°C) 150±2°C×168H
• After Tensile Strength (N/mm2) ≥70% of original
• Aging Elongation (%) ≥70% of original
