Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > VDE H05S-K High Temperature Silicone Wire

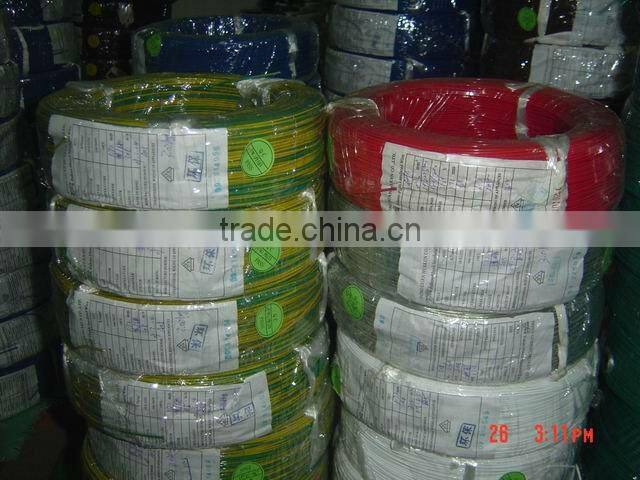

VDE H05S-K High Temperature Silicone Wire
US$ 0.1 - 5
MOQ: 6100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
VDE H05S-K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flexible PVC Parallel Wire UL 2800US$ 0.03 - 6MOQ: 6100 Meters -
Solar PV Cable / VDE TUV Certified DC Solar CableUS$ 4.86 - 4.89MOQ: 3000 Meters
-
Solar Cable / UL Certified 16AWGUS$ 0.98 - 1.12MOQ: 5000 Meters
-
Solar Cable / UL Certified 20AWGUS$ 0.98 - 1.12MOQ: 5000 Meters
-
Solar Cable / UL CertifiedUS$ 0.98 - 1.12MOQ: 5000 Meters
Place of Origin
Guangdong, China
Brand Name
Haerkn
Model Number
VDE H05S-K
Type
Insulated
Application
Overhead
Conductor Material
Copper
Conductor Type
Other, Solid or Stranded
Insulation Material
Other, Silicone Rubber
Specifications
VDE H05S-K High Temperature Silicone Wire1.Rated Voltage:300/500V
2.VDE&RoHS compliant
3. Widely used for headlamp, etc
VDE H05S-K High Temperature Silicone Wire
Specification
Rated voltage:300V/500V
Rated temperature:180°C
Specification range
Conductor specification:0.5~2.5mm2
Color:According to customer requirements.
Core:1 Core.
Application
They are widely used for headlamp, home appliance, industrial machine, instrument products.
Standard
VDE 0282
|
(Conductor) |
(Insulator) |
(Electrical Characteristic) |
(Packaging) |
|||
|
Section mm2 |
(Comps.n.x) φmm |
(Diameter) φmm |
(Insulation Thickness) /mm |
( Over diameter)/ φmm |
(Realest, max Cu, c 20°C) Ohm/km |
Mt/coils |
0.5 |
16/0.20 |
0.92 |
0.80 |
2.52 |
40.1 |
400 |
0.75 |
24/0.20 |
1.13 |
0.80 |
2.73 |
26.7 |
400 |
1.0 |
32/0.20 |
1.31 |
0.80 |
2.91 |
20.0 |
400 |
1.5 |
30/0.254 |
1.61 |
0.90 |
3.41 |
13.7 |
300 |
2.5 |
51/0.254 |
2.10 |
1.00 |
4.10 |
8.21 |
200 |
