Two Colour Rotary Type Rain Boots Automatic Injection Moulding Machine

Two Colour Rotary Type Rain Boots Automatic Injection Moulding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
kou yi
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Taiwan, China
Brand Name kou yi
Model Number NSK-375-2C
After-sales Service Provided Engineers available to service machinery overseas

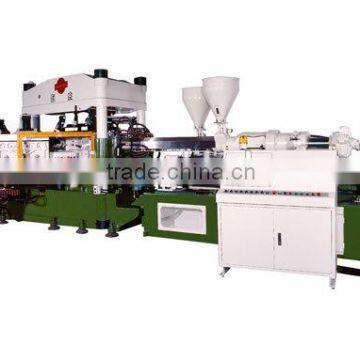

Two Colour Rotary Type Rain Boots Automatic Injection Moulding Machine  NSK-375-2C

Plastic Injection Molding Machines



Fixing quantity by computer and auto ejection control assistant equipment make ejection quantity more precise and it is easier to operate. The whole machinery is working by hydraulic system. Powerful mould locking and exact mould clamping make products no burr.



The molds of the former vertical injection molding machine for rain boots was liable to wear down. The quality of rain boots was not good, and the machine was not easy to operate. Therefore, we imported the latest technique to develop the "Auto rotary injection molding machine for rain boots". The molds of NSK-375 can open and close automatically, which can save manpower and make it easy to operate the machine. With the "Wind pressure auto molding system", the operators can easily remove finished products from the molds without damaging the lasts so that the molds can last longer.

The NSK-375 adopts direct-pressure injection which generates high pressure. It can produce boots of different sizes at the same time.The high clamping pressure ensures the quality of products. The machine can produce boots of different sizes or heights simultaneously, whichreduces production time. Furthermore, the machine also can produce sandals by changing the molds.



Two Colour Rotary Type Rain Boots Automatic Injection Moulding MachineTwo Colour Rotary Type Rain Boots Automatic Injection Moulding MachineTwo Colour Rotary Type Rain Boots Automatic Injection Moulding Machine

Two Colour Rotary Type Rain Boots Automatic Injection Moulding Machine

Two Colour Rotary Type Rain Boots Automatic Injection Moulding MachineTwo Colour Rotary Type Rain Boots Automatic Injection Moulding Machine



Product Character
  • Fixed quantity by computer and auto ejection control assistant equipment make ejection
        quantity more precise and it is easier to operate.

  • Multiple security protection system ensures operators and moulds.

  • The whole machinery is working by hydraulic system.Powerful mould locking and exact mould
        clamping make products no burr.

  • With special logical oil way design,it is high speed,high efficiency and high capacity.

  • With hydraulic shifting equipment,it is stable,noiseless and located exactly.

  • Refined temperature control system and preheating mould equipment make products
        bright without waste.

  • Auto monitoring system makes it easy to maintain.

  • Single-color and two-color production can be done at the same time.

  • Auto operation system coordinating with robot arm saves manpower.

  • It is easy to put on inner lining for the special structure of mould case, and the worth
        of finished products is great.

  • Unique fold type ejecting equipment makes great output and best moulding effect.

  • The equipment of mould case makes long duration of mould and it is need not to
        maintain.



Product Specifications
Item NSK-375-2C
Mould dimension 800 x 800 x 188m/m
Mould Station 8 stations
Mold Clamping force 300 Tons (Max.)
Ejective Capacity 2125gm +770gm
Heater 40kw
Pump Horsepower 30HP x2 +10 HP x1
Total Electric 90kw
Machine Size 9070 x 4240 x 2590m/m
Machine Weight 33000kgs
