Three Colour Rotary Type Automatic Soles Jointing & Ejecting Machine

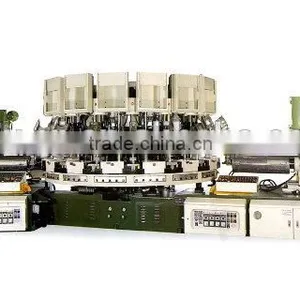

Three Colour Rotary Type Automatic Soles Jointing & Ejecting Machine thumbnail-1
Three Colour Rotary Type Automatic Soles Jointing & Ejecting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
kou yi
Contact Supplier Request Quote Chat Now
Kou Yi Iron Works Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Taiwan, China
Brand Name kou yi
Model Number NSK-393
After-sales Service Provided Engineers available to service machinery overseas

Three Colour Rotary Type Automatic Soles Jointing & Ejecting Machine -sports shoes injection machine



Plastic Injection Molding Machines-injection moulding machine-plastic injection machines

Single-color, two-color, and three-color molds are suitable for this machine. Furthermore, this machine can produce single-color, two-color, and three-color shoes simultaneously. The unique screw rod design makes it easy to change the color of materials without any leftovers.



To meet the market requirement, we have applied our years of experience and adopted techniques and concepts from Europe and America to improve the NSK-294. We finally developed the NSK-393-3C three color automatic rotary soles joirting & ejecting machine. This machine has photoelectric digit control system which has three patents from the national Bureau of Standard, Taiwan, The system is not only easy to control, but also durable, thus improving production efficiency.

The special screw rod makes it easy to feed material evenly and speedily. It is also easy to change the color of materials. The computer synchizes operation thus the machine works precisely. The joint of soles is excellent-no separation, no permeation of colors. High quality products increases ones market competitiveness. P.V.C. canvas,P.U., and leather are suitable for this machine.

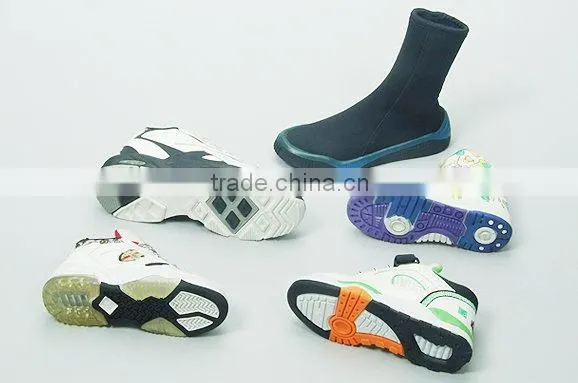

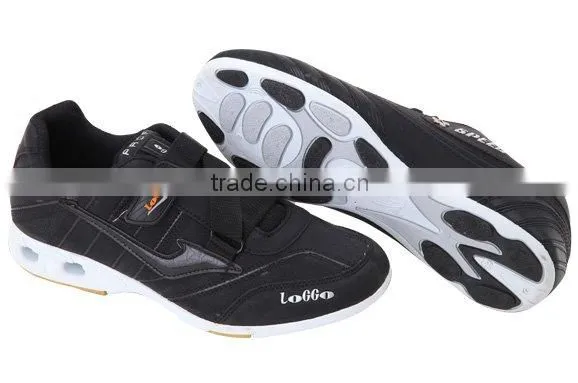

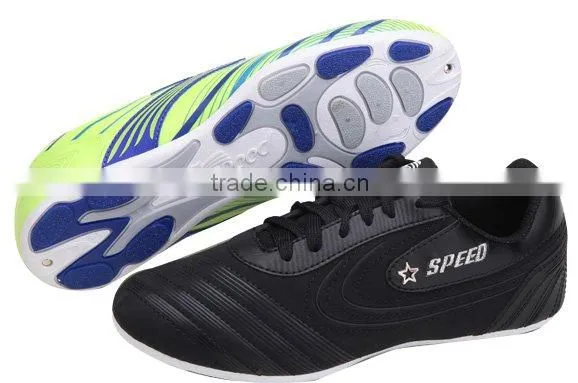

Three Colour Rotary Type Automatic Soles Jointing & Ejecting MachineThree Colour Rotary Type Automatic Soles Jointing & Ejecting MachineThree Colour Rotary Type Automatic Soles Jointing & Ejecting Machine

Product Character
  • It produces three color sport shoes in one step to replace the former complicated procedures
        of lasting,gluing,sole attaching.

  • It can use P.V.C.,N.B.R., T.P.R.and P.U.

  • The photoelectric digital control system with three patents divides the ejection quantity into
        sixteen sections,thus making the ejection precise.

  • The machine is controlled by the computer.

  • The computer controlled disc completely safe guards the system and ensures protection of
        the molds.

  • Molds shift automatically and no operators are needed,therefore improving safety and reducing
        damages to the molds that might be caused by manual operation.

  • Auto material passage clamping system reduces manpower and improves safety of the machine.

  • The disc is driven by the hydraulic system with hydraulic brakes, which enables the disc to move
        steadily and position accurately.

  • The hydraulic mold clamping system generates great clamping power, which results in no burrs
        and no permeation of colors.

  • The height of molds is adjustable, so this machine can produce sport shoes, canvas shoes,
        snow boots and safety boots.

  • Feeding screw is run by the hydraulic motor, the machine works speedily, noiselessly and
        is breakdown free.

  • Powerful ejection joins three colors of materials perfectly-no permeation of colors and
        great joint.

  • The unique screw rod design makes it easy to change the color of materials without any
        left-overs.

  • Lat pulling and California pulling can be produced at the same time.

  • Single-color, two-color, and three-color molds are suitable for this machine. Furthermore,
        this machine can produce single-color, two-color, and three-color, shoes simultaneously.

  • The hydraulic system and electric circuit system are separated. It is easy to maintain this
        machine.



Product Specifications
Item UNIT SIXTEEN MOLDS
Screw rod diameter mm 72x1 60x2
Ejective capacity cm ³/shot 680x1 480x2
Screw revolution r.p.m. 60-110
Stroke of mold clamping mm 100
Size of mold available mm 180 x 380
Motor of oil pressure pump kw/pole 4P x 75HP /6P x 20HP x2
Oil-pressure motor for screw rod driving cc/rev 230
Electric heating capacity kw 23
Acting oil capacity L 300/200
Machine weight ton 14 + 43
Machine volume mm 9400 x 3200 x 2700
Gross weight ton 17S +5S
Packing dimention mm 6600 x 3400 x 3000
3500 x 3200 x 1700
