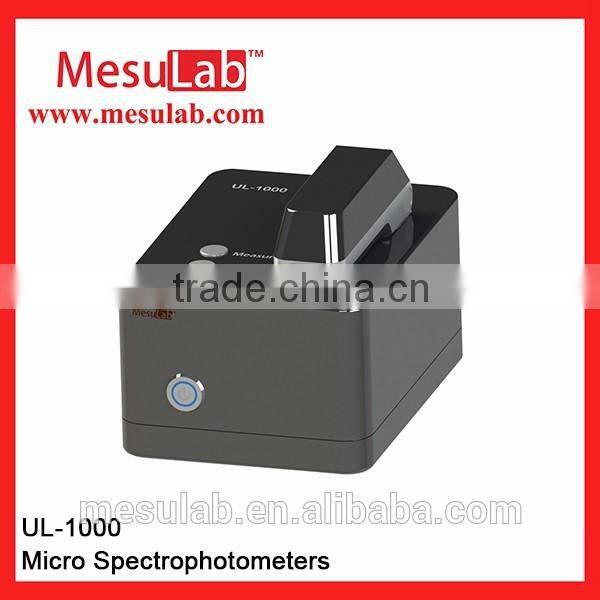

190-850nm/l nm Spectrophotometer UL-1000

Name: 190-850nm/l nm Spectrophotometer UL-1000
Brand: MesuLab
SKU: 133442617
Availability: InStock

US$ 1 - 9,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MesuLab

Model Number:

UL-1000

Mesu Lab Instruments (Guangzhou) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MesuLab

Model Number UL-1000

Size 200mm *130mm * 136mm

Weight 2.0kg

Focal Length 1 mm/0.2mm

Wavelength Range 190-850nm

Measurement Range 190-850nm

190-850nm/l nm spectrophotometer UL-1000

Spectrophotometer is an important analysis instrument wildly applied

in research of physics, chemistry, biology, medicine, material, environment

and modern production management of chemistry, medicine, environment

test, metallurgy. Spectrophotometer is the instrument for quantitative and

qualitative research by spectrophotometry. It is usually used in quantitative

research of nucleic acid,proteins and bacterial concentration.

Feature

l Micro scale sample test, minimum 0.5u1

l Wildly test area, 100 times of the traditional spectrophotometer

l No need to dilute for most samples

l Test directly, no need to warm-up, container test and daily consumption test

l Whole wavelength 190-1100nm, accuracy 1nm, auto scanning wavelength 190-850nm

l Compact size and portable package fit-able for on-site test

l More accurate and flexible test is realized by PC control

Specification

Model	UL-1000
Minimum sample capacity	0.5UL
Optical distance	1 mm/0.2mm
Wavelength band	190-850nm
Wavelength accuracy	l nm
Wavelength resolution	≤0.3nm(FWHM at Hg 253.7nm)
Absorbance accuracy	2%(0.76 at 257nm)
Absorbance resolution	0.002Abs(1mm)
Absorbance area	0.02~80(10mm)
Test accuracy	0.1~5 Abs. ±0.1 Abs 5~80 Abs. ±2%
Sample test platform material	304 stainless steel and quartz
Detector	3648 pixel linear CCD array
Light source	mini HID
Text time	8s
Size	200mm 130mm 136mm(LWH)
Weight	≤2.0kg
Voltage	AC100~240V 50~60Hz
Power	24W
