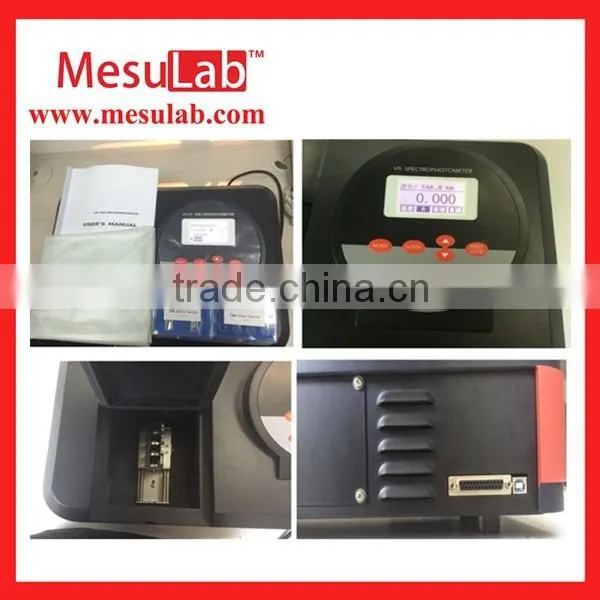

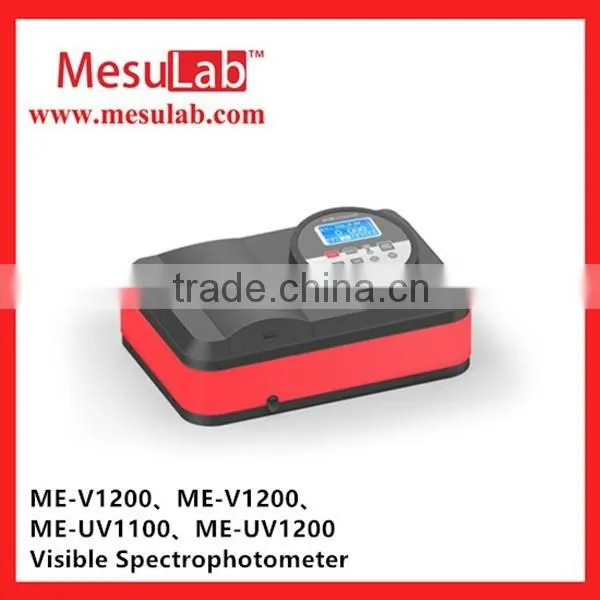

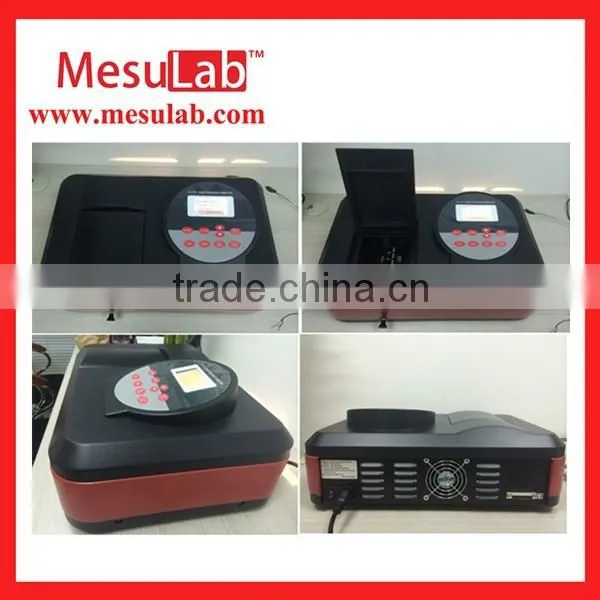

ME-V1200/1300/1500 VIS Spectrophotometer
Advantage:
l Single-chip microcomputer control, LCD Screen (128*64 Dots)
l Large LCD screen, can display multiple sets of data.
l Large memory space ,can store multiple sets of data and curve.
l Auto zero,100% adjustment function, Auto wavelength adjustment
l Auto filter changing, large sample pool (0.5mm ~ 100mm)
l Up to 10 standard sample for measure function of standard curve establish
l Direct input K, B factor for quantitative measurement of standard curve
l Can be directly input standard sample and the corresponding concentration values to establish the standard curve for
quantitative measurement
l Switch off power save standard curve parameter measuring set
l Can be done any standard curve editor, convenient for use.
l With general parallel printer interface or printer interface, can print title bar, measurement data, curve of standard sample
curve, and the curve.
l With USB interface
l Can achieve more accurate and flexible measurement with PC control (optional) Technical Specifications
Specifications:
Model |
ME-V1200 |
ME-V1300 |
ME-V1500/V1500PC |
Wavelength Range |
325-1000nm |
320-1100nm |
320-1000nm |
Band Width |
2nm |
4nm |
2nm |
Wavelength Accuracy |
±1.0nm τ |
±0.5nm τ |
|
Wavelength Repeatability |
0.2nm τ |
||
Photometric Accuracy |
±0.5% τ |
||
Photometric Repeatability |
0.2% τ |
||
Stray Light |
≤0.05% τ (340nm NaNO2) |
||
Stability |
0.001A/30min@500nm |
||
Photometric Mode |
T,A,C,E |
||
Wavelength Setting |
Automatic |
||
Photometric Range |
-0.3~3A |
||
Detector |
Import Silicon Photodiode Detector |
||
Light Source |
Import Tungsten Lamp |
||
Power Requirement |
120W , AC 220V/50Hz 110V/60Hz |
||
Dimensions(W*D*H) |
46*33*21cm&11KG |
48*35*22cm&11KG |
|
