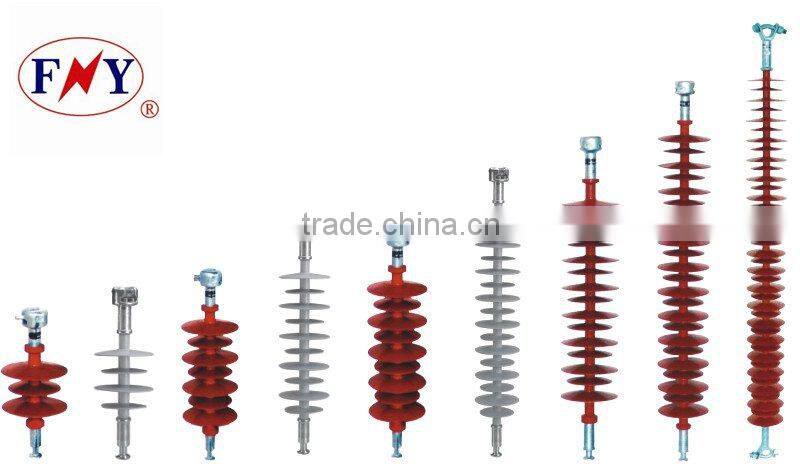

Composite Insulator
Negotiable
/ Piece
10 Pieces(Min. Order)
- Tianjin or Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FaYun | |
| Model Number | FXBW | Type | Insulator | |
| Material | Other, Composite Polymer, Composite Polymer | Application | High Voltage | |
| Rated Voltage | - | Tensile Strength | - |
Product Description
Specifications
Composite Polymer Insulator1.Rated voltage kV:750
2.Total Height mm:4030/4450
3.can be well pollution resietant
Composite Polymer Insulator
Usage:The product are suitable for the innovation of urban electical network where it can increase the voltage and transport the electricity effectively by using the narrow street.And it can reduce the necessary height of the pole/tower.Due to it’s high stength of bending,it will comepletely avoid the crack case that happened on porcelain crossarm.Moreover,it can be well pollution resistan.
| NO. | Mode | rated voltage kV | rated mechanical tensile load kN | Connection structure mark | Height H.mm | Min.distance ArcL. Mm | Min.rated creepage distance mm | Min. lightnigng full-wave impulse withstand voltage(peak) | swiching impilse voltage | Min.wet withstand voltage per minute at power frequency | |
| Dry | Wet | ||||||||||
| 31 | FXBW-750/160 | 750 | 160 | 20 | 6660±50 | 6000 | 24000 | 2700 | 1800 | 1200 | 1125 |
| 32 | FXBW-750/210 | 750 | 210 | 20 | 6660±50 | 6000 | 24000 | 2700 | 1800 | 1200 | 1125 |
| 33 | FXBW-750/300 | 750 | 300 | 24 | 6660±50 | 6000 | 24000 | 2700 | 1800 | 1200 | 1125 |
| 34 | FXBW-750/400 | 750 | 400 | 28 | 6660±50 | 6000 | 24000 | 2700 | 1800 | 1200 | 1125 |
| 35 | FXBZ-750/160 | 750 | 160 | 20 | 5440±50 | 4900 | 18025 | 2550 | 1550 | 1000 | |
| 36 | FXBZ-750/210 | 750 | 210 | 20 | 5440±50 | 4900 | 18025 | ||||
| 37 | FXBZ-750/300 | 750 | 300 | 24 | 5440±50 | 4900 | 18025 | ||||
| 38 | FXBZ-750/400 | 750 | 400 | 28 | 5440±50 | 4900 | 18025 | ||||
