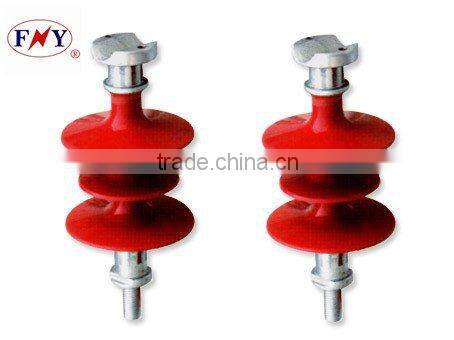

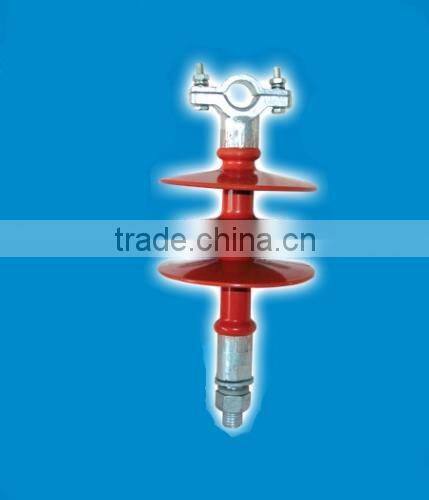

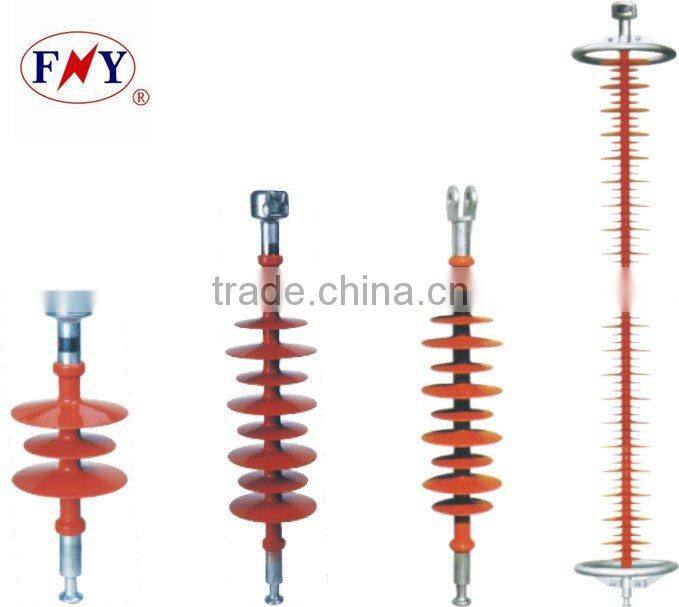

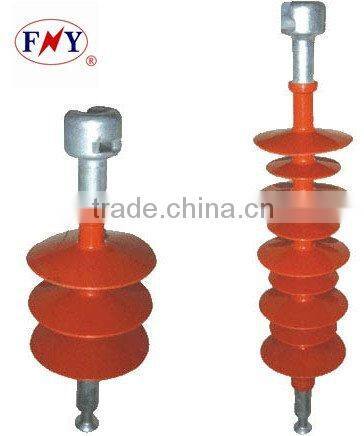

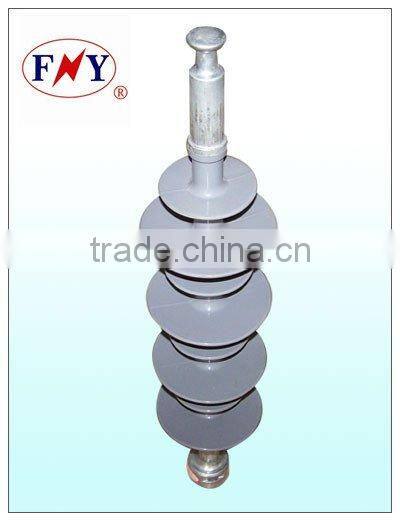

Hot Sales!!! Pin Type Insulator
- Tianjin or Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FaYun | |
| Model Number | FXBW | Type | Insulator | |
| Material | Other, Composite Polymer, Composite Polymer | Application | High Voltage |
Product Description
Specifications
Pin type insulator1.Rated voltage kV:10-66
2.Total Height mm:310-940
3.Can be well pollution resietant
4.Colour:red,grey
Pin type insulator
Usage:The product are suitable for the innovation of urban electical network where it can increase the voltage and transport the electricity effectively by using the narrow street.And it can reduce the necessary height of the pole/tower.Due to it’s high stength of bending,it will comepletely avoid the crack case that happened on porcelain crossarm.Moreover,it can be well pollution resistan.
Insulator Mode Rated Voltage kV Rated mechanical tensile load Kn Link structure marker Structure Height mm Minimum distance ArcL. Minimum nominal Creepage distance mm Full-wave Lightning Impulse withstand voltage (peak) Min.wet withstand voltage per minute at power frequency Dry Wet FXBW-10/70 10 70 16 310±15 130 350 75 47 42 FXBW-10/100 10 100 16 350±15 130 350 75 47 42 FXBW2-35/70 35 70 16 650±15 470 810 230 108 95 FXBW4-35/70 35 70 16 650±15 470 1015 230 108 95 FXBW2-35/100 35 100 16 670±15 450 810 230 108 95 FXBW4-35/100 35 100 16 670±15 450 1050 230 108 95 FXBW1-66/70 66 70 16 880±15 700 1450 410 200 185 FXBW2-66/70 66 70 16 940±15 760 1450 410 200 185 FXBW3-66/70 66 70 16 880±15 700 1900 410 200 185 FXBW4-66/70 66 70 16 940±15 760 1900 410 200 185 FXBW2-66/100 66 100 16 940±15 720 1900 410 200 185 FXBW4-66/100 66 100 16 940±15 720 1900 410 200 185
