Help CenterSilicon Rubber Insulator
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
FaYun
Model Number:
FXBW
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
FaYun
Model Number
FXBW
Type
Insulator
Material
Other, Composite Polymer, Composite Polymer
Application
High Voltage
Specifications
Silicon rubber insulatorRated voltage kV:330
Total Height mm:2930-2990
Min.distance:2600
Colour:red and grey

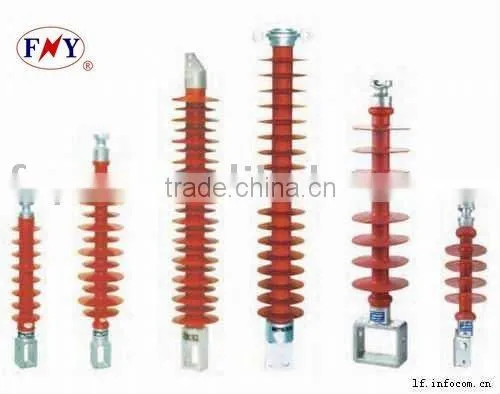

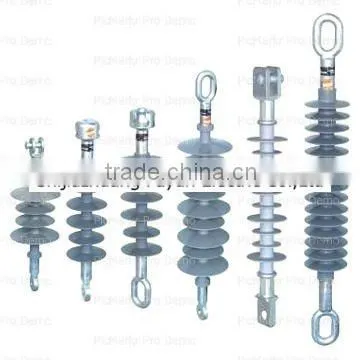

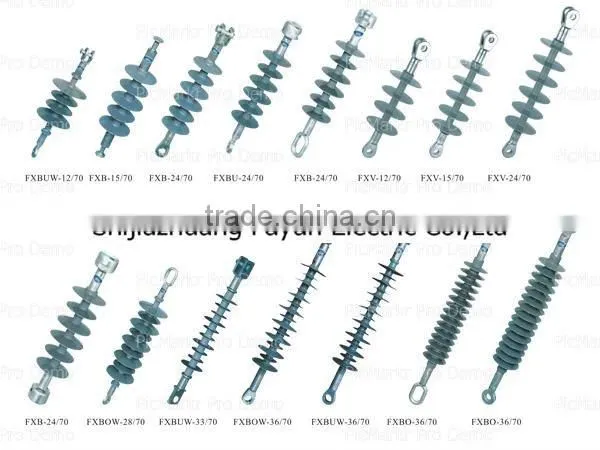

Silicon rubber insulator
Usage:The product are suitable for the innovation of urban electical network where it can increase the voltage and transport the electricity effectively by using the narrow street.And it can reduce the necessary height of the pole/tower.Due to it’s high stength of bending,it will comepletely avoid the crack case that happened on porcelain crossarm.Moreover,it can be well pollution resistan.
| Mode | rated voltage kV | rated mechanical tensile load kN | Connection structure mark | Height H.mm | Min.distance ArcL. mm | Min.rated creepage distance mm | Min. lightnigng full-wave impulse withstand voltage(peak) | swiching impilse voltage | Min.wet withstand voltage per minute at power frequency | |
| Dry | Wet | |||||||||
| FXBW1-330/100 | 330 | 100 | 16 | 2930±40 | 2600 | 7260 | 1425 | 950 | 630 | 570 |
| FXBW2-330/100 | 330 | 100 | 16 | 2990±40 | 2600 | 7260 | 1425 | 950 | 630 | 570 |
| FXBW3-330/100 | 330 | 100 | 16 | 2930±40 | 2600 | 9075 | 1425 | 950 | 630 | 570 |
| FXBW4-330/100 | 330 | 100 | 16 | 2990±40 | 2600 | 9075 | 1425 | 950 | 630 | 570 |
| FXBW1-330/160 | 330 | 160 | 20 | 2930±40 | 2600 | 7260 | 1425 | 950 | 630 | 570 |
| FXBW2-330/160 | 330 | 160 | 20 | 2990±40 | 2600 | 7260 | 1425 | 950 | 630 | 570 |
| FXBW3-330/160 | 330 | 160 | 20 | 2930±40 | 2600 | 9075 | 30 | 950 | 630 | 570 |
| FXBW4-330/160 | 330 | 160 | 20 | 2990±40 | 2600 | 9075 | 1425 | 950 | 630 | 570 |
| FXBW2-330/210 | 330 | 210 | 20 | 2990±40 | 2600 | 7260 | 1425 | 950 | 630 | 570 |
| FXBW4-330/210 | 330 | 210 | 20 | 2990±40 | 2600 | 9075 | 1425 | 950 | 630 | 570 |
