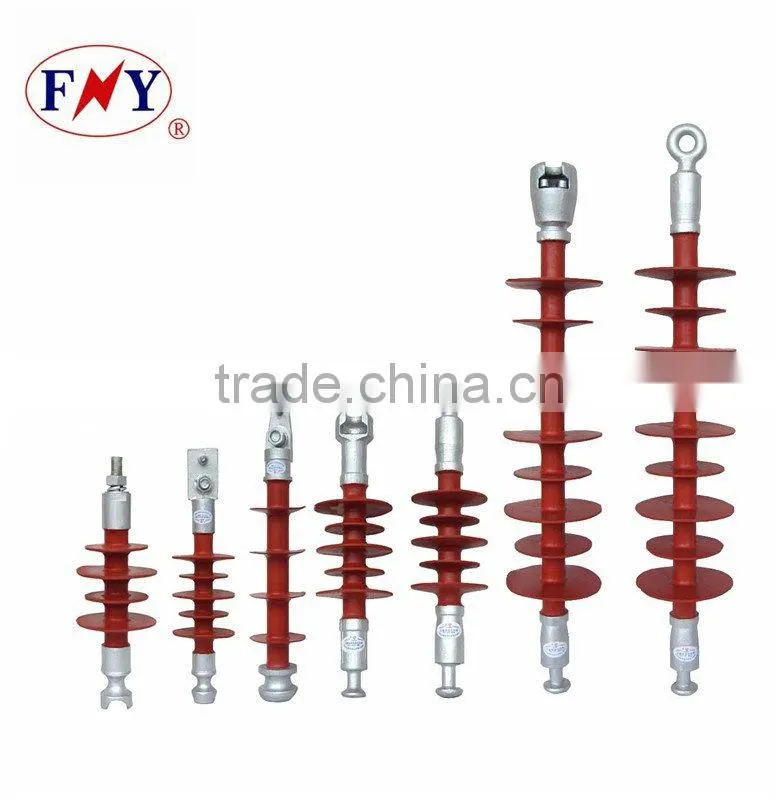

Help CenterPin Insulator
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
FY
Model Number:
FPQ
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
FY
Model Number
FPQ
Type
Insulator
Material
Composite Polymer
Application
High Voltage
Specifications
Product: Pin InsulatorType: FPQ
Rated Voltage: 10kv to 36kv
Can produce by users' special requirements
Product: Pin insulator
Type: FPQ
This product has the following characters:
1) The silicon rubber rain shed, dsigned according to the aerodynamics principle, use the whole-moulding method, to make sure the validity of total creepage distance under every climate and nasty conditions, as well as improved the pollution discharge of the insulators.
2) The fiber rod uses the ECR high-temperature and acid-proof material.
3) The end fitting connection adopts the zinc cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality.
The following are detail specifications:
| Type | Rated Voltage | Rated Failing Load | Section Length | Dry arcing distance | Min. creepage distance |
| KV | KN | mm | mm | mm | |
| FPQ-10/4T20 | 10 | 4 | 223 | 135 | 310 |
| FPQ4-10/4T20 | 10 | 5 | 260 | 165 | 460 |
| FPQ-20/12.5 | 20 | 12.5 | 370 | 265 | 700 |
| FPQ-36/6 | 36 | 6 | 460 | 350 | 980 |
