YT Series 6 color multicolour printing machine/flexo printing machine
Introduction:
The flexo printing mahcine adopts flexographic printing technology, letterpress type printing machine which is stack type, roll to roll printing machine.
It applys sensitization resin as flexible printing plate, suitable for printing such packing materials as PE,PP,BOPP,OPP,Paper, Non Woven Fabric bag or PE,PP,BOPP,OPP,Paper, Non Woven Fabric ,Aluminum roll .
It is a kind of ideal printing equipment for producing plastic packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
Main Technical Variables:
Type |
YT-6600 |
YT-6800 |
YT-61000 |
YT-61200 |
Max. Effective Printing Width |
560mm |
760mm |
960mm |
1160mm |
Max. Web Width |
600mm |
800mm |
1000mm |
1200mm |
Max. Printing Speed |
50m/min |
50m/min |
50m/min |
50m/min |
Max. Mechanical Speed |
60 m/min |
60 m/min |
60 m/min |
60 m/min |
Max. Diameter of Roll Material |
450mm |
450mm |
450mm |
450mm |
Internal Diameter of Roll Core |
76mm |
76mm |
76mm |
76mm |
Rang of Repeat Printing Length |
191-914mm |
191-914mm |
191-914mm |
191-914mm |
Accuracy of Registration |
±0.5mm |
±0.5mm |
±0.5mm |
±0.5mm |
Plate Thickness(Both side adhesive included) |
2.38mm |
2.38mm |
2.38mm |
2.38mm |
Heating Power |
9Kw |
13.5Kw |
18Kw |
19Kw |
Total Power |
15Kw |
19.5Kw |
24Kw |
26Kw |
Weight of Machine |
3500kg |
4200kg |
5000kg |
6000kg |
Overall Dimension(L*W*H) MM |
4300×1700×2950 |
4300×1900×2950 |
4300×2100×2950 |
4300×2300×2950 |

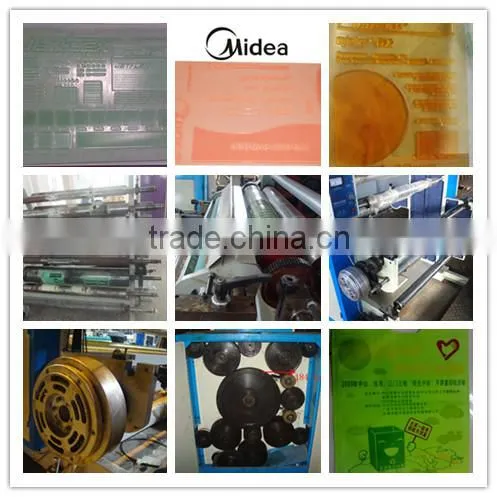

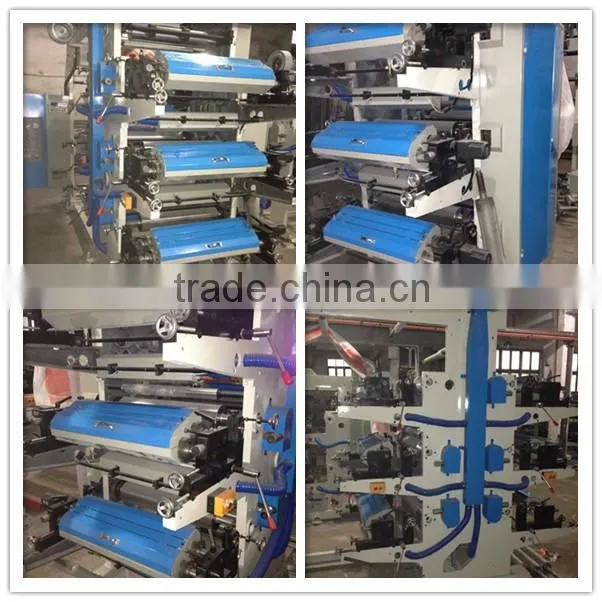

Pictures of Machine:
