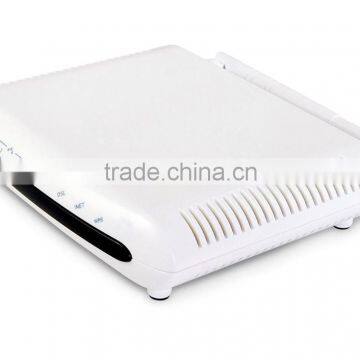

SC-8849 Wireless ADSL2+ Router
|
802.11n Wireless ADSL Router, SC-8849, applies 1T1R antenna technology and provides office and residential users with the ideal solution for sharing a high-speed ADSL broadband connection and four-10/100Mbps Fast Ethernet backbone. The SC-8849 is developed with three core networking technologies: IEEE 802.11b/g/n, Ethernet and ADSL2/2+ Via ADSL2/2+ technology, the SC-8849 offers very high performance access to Internet, up to 24Mbps for downstream data transmission and 3.5Mbps for upstream data transmission. Benefit: High-Speed & Superior Coverage SunComm ADSL2+ 802.11n Router integrates the ADSL2+ and wireless 802.11n draft 2.0 technologies, offering a high-speed wireless data rate up to 150Mbps and superior wireless coverage. Enhance Network Security 11N Router supports the latest wireless security standards features of WEP, WPA, and WPA2 etc and utilizes the Dual Active Firewalls (SPI and NAT) to prevent potential attacks from across the Internet. Easy-Install & Configure Easy-Install & Configuration software can make user easily configuring modem and monitoring modem’s status without accessing modem’s configuration page.
|
SC-8849 Wireless ADSL2+ Router Features
|
|
||
| |||||
| |||||
|
Standards > Full-rate ANSI T1.413 issue 2 > ITU-T G.992.1 (G.dmt), supporting Annex A or B > ITU -TG.992.2 (G.lite), supporting Annex A or B > ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M > ITU-T G.992.4 (G.lite.bis), supporting Annex A or B > ITU-T G.992.5 (ADSL2+), supporting Annex A or B, Annex L and Annex M > ITU-T G.994.1 (G.hs) > Data Transmission Rate > Upstream: Up to 3.5Mbps Downstream: Up to 24 Mbps. > Rate Adaptive at 32 Kbps steps > Interoperable with all major DSLAM equipments
Network Protocols: > Static IP, Dynamic RIPv1, RIPv2 support > MTU Adjustment > Network Address Translation (NAT) > PVC Port Mapping (Ethernet ports) > Port Forwarding > NAT Application Level Gateway for popular applications > DHCP Server/Relay/client > DNS Relay Agent > DMZ support > DDNS support > SNMPv1, v2 support > UPnP (Universal Plug and Play) > TR069 CWMP > PPP Auto Reconnect and configurable timeouts > PPP Auto Reconnect on WAN Access/PPP on Demand > IGMP v.1/v.2 snooping and SupportIGMP Multicast > ALG for SIP and H.323
VPN Pass-through: > IPSec/PPTP/L2TP Pass-through
QOS: > Priority Queuing > Classification Rules > 802.1p
Environment: > Operating Temperature: 0°C~40°C > Storage Temperature: -30°C~60°C > Operating Humidity: 10%~90% non-condensing > Storage Humidity: 5%~90% non-condensing
Accessories: > RJ11 cable x 1 > RJ45 cable x 1 > External splitter x 1 > Power Adapter x 1 > Installation Manual x 1
| |||||
Wireless Features:
> Complies with IEEE802.11n, IEEE 802.11g and IEEE 802.11b
> 11n: Up to 150Mbps (dynamic)
> Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and
TKIP/AES encryption security
> Multi SSID
> Access Control List
> Provides 64/128-bit WEP encryption security
> Wireless operating range: Indoor up to 100m, Outdoor up to 300m
> Wireless transmit power: 20dBm
> External 3DBi Antenna
ATM and PPP Features
> RFC2684 Bridge and Routed LLC& VC
> RFC2364 PPP over ATM ALL5
> RFC2516 PPP over Ethernet
> RFC2225/RFC1577 Classical IP over ATM
> RFC1483 Transparent Bridge
> RFC 1483/2684 Bridged Ethernet
> ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5
> VPI Range (0-255) and VCI range (32-65535)
> UBR, CBR, VBR-rt, VBR-nrt
> F4/F5 OAM Loopback
> Supports 16 PVCs
Management Support:
> Web Based GUI
> Upgrade or update via FTP/HTTP
> Command Line Interface via serial interface or Telnet
> Diagnostic Test
> Firmware upgrade-able for future feature enhancement
> Supports Remote Access Control
Security Support:
> PAP/CHAP Authentication for PPP mode
> NAT for basic Firewall support
> State Packet Inspection (SPI) for Firewall with denial-of-service (DoS) protection
> ALG (Application-level gateway) for NAT/PAT support
> 2 Level (User/Admin) Password Authentication to Router
> IP Filtering and MAC Filtering
> Parental control
Operation System Support:
> Windows 98 / 98 SE, 2000, ME, XP, VISTA,7,8
> Macintosh
> Linux
LED Indicators:
> Power, ,LAN1,LAN2,LAN3,LAN4,WLAN,DSL,
INET,WPS
|
