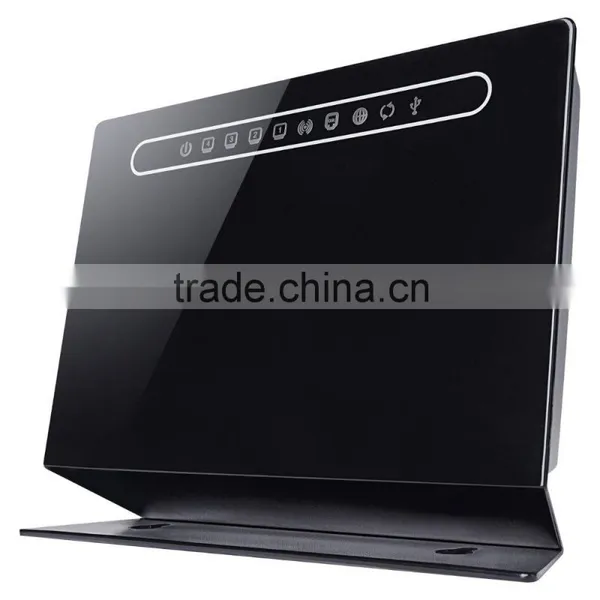

SC-8848 Wireless ADSL Router
|
802.11n Wireless ADSL Router, SC-8848, applies 1T1R antenna technology and provides office and residential users with the ideal solution for sharing a high-speed ADSL broadband connection and four-10/100Mbps Fast Ethernet backbone. The sc-8848 is developed with three core networking technologies: IEEE 802.11b/g/n, Ethernet and ADSL2/2+. Via ADSL2/2+ technology, the SC-8848 offers very high performance access to Internet, up to 24Mbps for downstream data transmission and 3.5Mbps for upstream data transmission.
Features > ADSL2/2+ up to 24Mbps >Annex M upstream up to 3.5Mbps >1T1R wireless transmission speed up to 150Mbps/300Mbps ( Option) >WPS Button for users to easily connect to wireless network >Built-in 4-Port Switch to extent LAN >TR-069 remote management >IPv4/IPv6 dual stack
|
SC-8848 Wireless ADSL Router
Physical Interface
|
|
||
| |||||
| |||||
|
Standards > Full-rate ANSI T1.413 issue 2 > ITU-T G.992.1 (G.dmt), supporting Annex A or B > ITU -TG.992.2 (G.lite), supporting Annex A or B > ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M > ITU-T G.992.4 (G.lite.bis), supporting Annex A or B > ITU-T G.992.5 (ADSL2+), supporting Annex A or B, Annex L and Annex M > ITU-T G.994.1 (G.hs) > Data Transmission Rate > Upstream: Up to 3.5Mbps Downstream: Up to 24 Mbps. > Rate Adaptive at 32 Kbps steps > Interoperable with all major DSLAM equipments
Network Protocols: > Static IP, Dynamic RIPv1, RIPv2 support > MTU Adjustment > Network Address Translation (NAT) > PVC Port Mapping (Ethernet ports) > Port Forwarding > NAT Application Level Gateway for popular applications > DHCP Server/Relay/client > DNS Relay Agent > DMZ support > DDNS support > SNMPv1, v2 support > UPnP (Universal Plug and Play) > TR069 CWMP > PPP Auto Reconnect and configurable timeouts > PPP Auto Reconnect on WAN Access/PPP on Demand > IGMP snooping and SupportIGMP Multicast > ALG for SIP and H.323
VPN Pass-through: > IPSec/PPTP/L2TP Pass-through
QOS: > Priority Queuing > Classification Rules > 802.1p
Environment: > Operating Temperature: 0°C~40°C > Storage Temperature: -30°C~60°C > Operating Humidity: 10%~90% non-condensing > Storage Humidity: 5%~90% non-condensing
Accessories: > RJ11 cable x 1 > RJ45 cable x 1 > External splitter x 1 > Power Adapter x 1 > Installation Manual x 1
Operation System Support: > Windows 98 / 98 SE, 2000, ME, XP, VISTA,7,8 > Macintosh > Linux |
|
Wireless Features: > Complies with IEEE802.11n, IEEE 802.11g and IEEE 802.11b > 11n: Up to 150Mbps (dynamic) > Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security > Multi SSID > Access Control List > Provides 64/128-bit WEP encryption security > Wireless operating range: Indoor up to 100m, Outdoor up to 300m > Antenna power: 3dBi
ATM and PPP Features > RFC2684 Bridge and Routed LLC& VC > RFC2364 PPP over ATM ALL5 > RFC2516 PPP over Ethernet > RFC2225/RFC1577 Classical IP over ATM > RFC1483 Transparent Bridge > RFC 1483/2684 Bridged Ethernet > ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5 > VPI Range (0-255) and VCI range (32-65535) > UBR, CBR, VBR-rt, VBR-nrt > F4/F5 OAM Loopback > Supports 16 PVCs
Management Support: > Web Based GUI > Upgrade or update via FTP/HTTP > Command Line Interface via serial interface or Telnet > Diagnostic Test > Firmware upgrade-able for future feature enhancement > Supports Remote Access Control
Security Support: > PAP/CHAP Authentication for PPP mode > NAT for basic Firewall support > State Packet Inspection (SPI) for Firewall with denial-of-service (DoS) protection > ALG (Application-level gateway) for NAT/PAT support > 2 Level (User/Admin) Password Authentication to Router > IP Filtering and MAC Filtering > Parental control
LED Indicators: > Power, ,LAN1,LAN2,LAN3,LAN4,WLAN,DSL, INET,WPS |
|||
|
