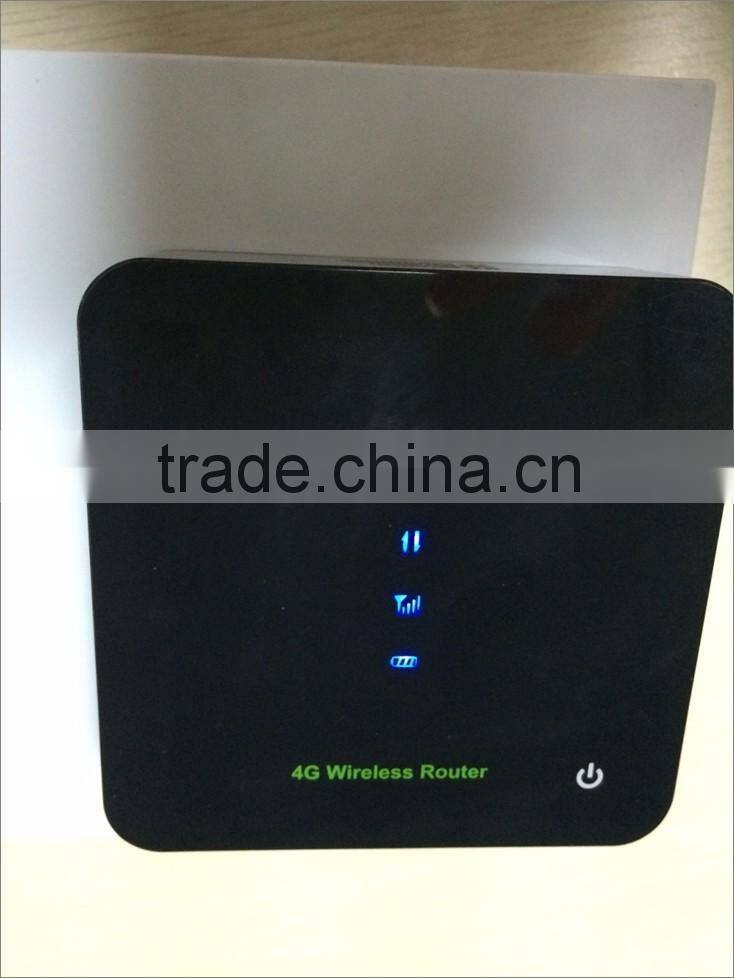

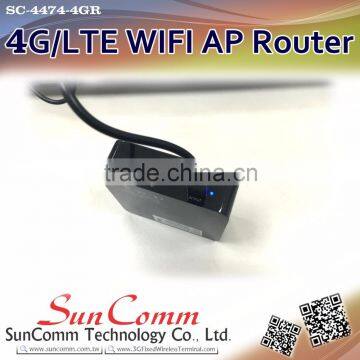

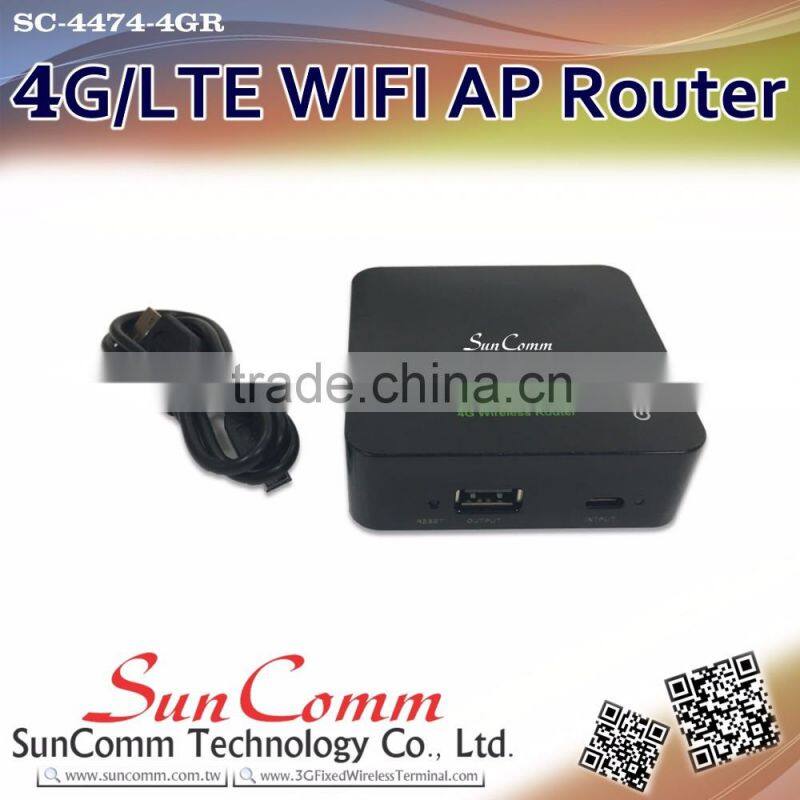

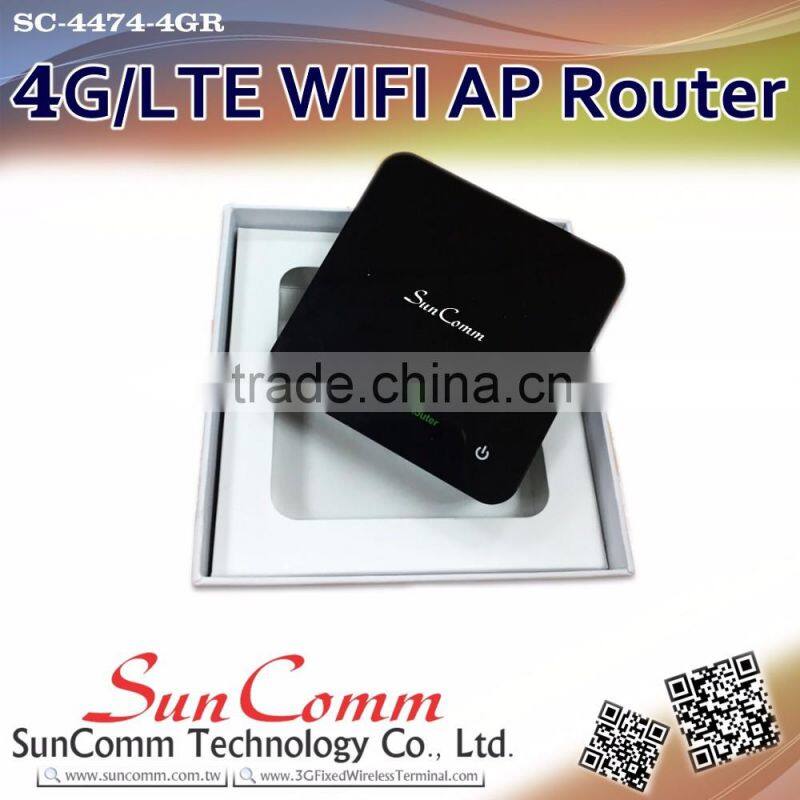

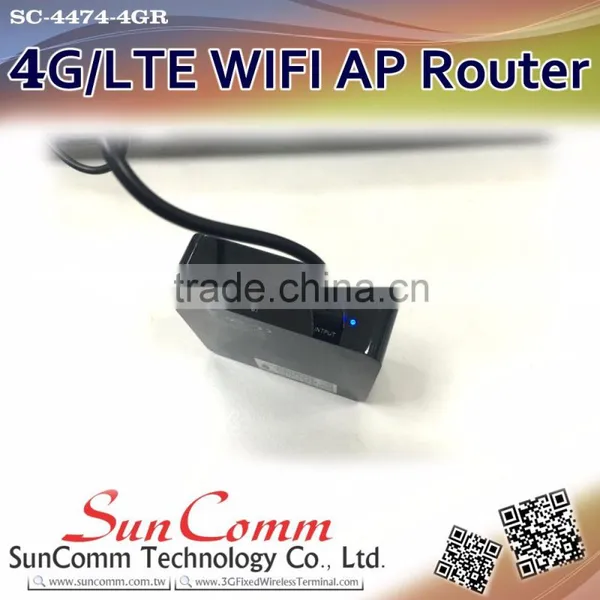

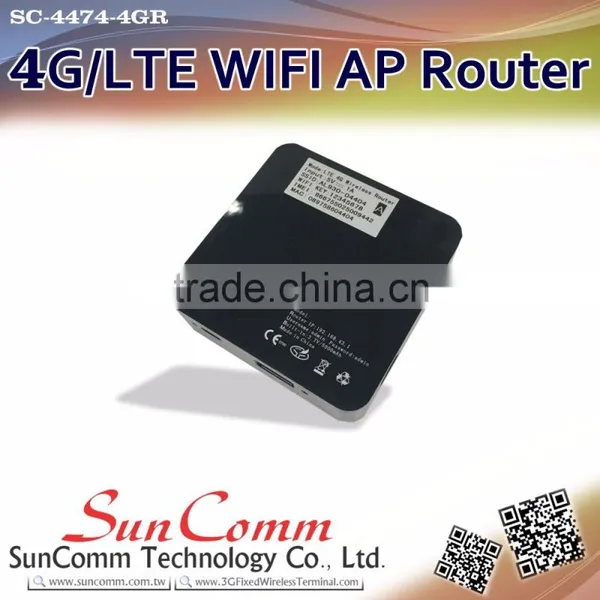

4G LTE WIFI AP Router SC-4474-4GR

4G LTE WIFI AP Router SC-4474-4GR thumbnail-1
4G LTE WIFI AP Router SC-4474-4GR thumbnail-2
4G LTE WIFI AP Router SC-4474-4GR thumbnail-3
4G LTE WIFI AP Router SC-4474-4GR thumbnail-4
4G LTE WIFI AP Router SC-4474-4GR thumbnail-5
4G LTE WIFI AP Router SC-4474-4GR photo-1
4G LTE WIFI AP Router SC-4474-4GR photo-2
4G LTE WIFI AP Router SC-4474-4GR photo-3
4G LTE WIFI AP Router SC-4474-4GR photo-4
4G LTE WIFI AP Router SC-4474-4GR photo-5
US$ 1 - 120 MOQ: 1000 Units
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Other
Contact Supplier Request Quote Chat Now
Suncomm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/TaiWan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wireless
Application Other
Function Other
LAN Ports Other
WAN Ports Other
Certification CE FCC
Brand Name SunComm
Model Number SC-4474-4GR
Place of Origin Guangdong, China

SC-4474-4GR 4G/ LTE WIFI AP Router



4G LTE WIFI AP Router SC-4474-4GR

4G LTE WIFI AP Router SC-4474-4GR



1Features

Main


Features

• Support 4G/3G/2G turn WLAN access Internet

• Support USB modem

• Support power bank(output:5V/1A)

•SupportLTEFDDBand1/Band3/Band7,TDDBand38/Band39

/Band40,DCHSPA+/HSPA+/UMTSBand1/Bnad5/Band8,

TD-SCDMA Band34/Band39,GSM850/900/1800/1900MHz

• Support LTE FDD 1800,2100/2600 5M/10M/15M/20M bandwidth

• Support LTE FDD cat.3 downlink 100Mbps/uplink

50Mbps@20M bandwidth

• Support LTE TDD cat.3 downlink 68Mbps/uplink

17Mbps@20M bandwidth

• LTE 2*2 MIMO DL

• DC-HSPA+ data service of up to 43.2Mbps

• HSPA+ data service of up to 21.6Mbps(64QAM)

• HSPA data service of up to 14.4Mbps

• HSUPA data service of up to 5.76Mbps

• UMTS PS domain data service of up to 384kbps

• TD-SCDMA data service of up to 2.8Mbps

• EDGE packet data service of up to 236.8kbps

 on downlink with MSC12

• GPRS packet data service of up to 85.6kbps

on downlink with MSC12

• WALN 802.11b up to 11Mbit/s

• WALN 802.11g up to 54Mbit/s

• WALN 802.11n  supporting MCS0~MCS7,up to 72.2Mbit/s

• LTE/UMTS/GSM SMS over SGs service

• Automatic installation

• Windows XP SP3, Windows Vista SP1/SP2, Windows 7,

Windows 8(Does not support Windows RT),

Windows 8.1; Mac OS x 10.7,10.8 and 10.9

with latest upgrades,Linux OS and Android OS





Technical Specifications--Hardware

Technical
standard

• IEEE802.11 a/ b/g/n  IEEE Std 802.11nTM-2009

• LTE Rel 8 Cat 3

• WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7

• HSPA+(cat 14), Rel 8 DC-HSPA+(cat 24)

• TD-SCDMA  3GPP R5 1.28 TDD

• GSM/GPRS/EDGE Rel 99

Operating


frequency

• LTE FDD 1800MHz:1710MHz~1785MHz(Uplink)/

1805MHz~1880MHz(Downlink)

• LTE FDD 2100MHz:1920MHz~1980MHz(Uplink)/

2110MHz~2170MHz(Downlink)

• LTE FDD 2600MHz:2500MHz~2570MHz(Uplink)/

2620MHz~2690MHz(Downlink)

• LTE TDD 2600MHz:2570MHz~2620MHz

• LTE TDD 1900MHz:1880MHz~1920MHz

• LTE TDD 2300MHz:2300MHz~2400MHz

• HSPA+/HSPA/UMTS 2100MHz: 1920MHz~1980MHz(Uplink)

/2110MHz~2170MHz(Downlink)

• HSPA+/HSPA/UMTS 900MHz: 880MHz~915MHz(Uplink)

/925MHz~960MHz(Downlink)

• HSPA+/HSPA/UMTS850MHz: 824MHz~849MHz(Uplink)

/869MHz~894MHz(Downlink)

• TD-SCDMA 2000MHz:2010MHz~2025MHz

• TD-SCDMA 1900MHz:1880MHz~1920MHz

• GSM/GPRS/EDGE 850MHz:824MHz~849MHz(Uplink)/

869MHz~894MHz(Downlink)

• GSM/GPRS/EDGE 900MHz:880MHz~915MHz(Uplink)/

925MHz~960MHz(Downlink)

• GSM/GPRS/EDGE 1800MHz:1710MHz~1785MHz(Uplink)/

1805MHz~1880MHz(Downlink)

• GSM/GPRS/EDGE 1900MHz:1850MHz~1910MHz(Uplink)/

1930MHz~1990MHz(Downlink)

• WLAN 2.4GHz:2400MHz~2483.5MHz

External
interfaces

•Standard USB 2.0 High Speed

• Micro USB 2.0 High Speed

• SIM/USIM card

• MicroSD card Slot

• LAN/WAN

Display

• LED  display the working status

Antenna

• 4G/3G/2G:Internal antenna

• WLAN:Internal antenna

• Diversity:support,internal antenna

Maximum
transmitter
power

• LTE FDD 1800/2100/2600MHz,TDD1900/2300/2600MHz:

Power Class 3 (23dBm)

• WCDMA/HSPA+ 2100/900/850MHz: Power Class 3 (24dBm)

• TD-SCDMA 1900/2000MHz: Power Class 3 (24dBm)

• EV-DO/CDMA2000 1X 800MHz: Power Class 3 (24dBm)

• GSM/GPRS 900MHz/850MHz: Power Class 4 (33dBm)

• GSM/GPRS 1800MHz/1900MHz: Power Class 1 (30dBm)

• EDGE 850MHz/900MHz:Power Class E2 (27dBm)

• EDGE 1800MHz/1900MHz: Power Class E2 (26dBm)

• WLAN:  802.11g: 11 (+/-3)dBm
           802.11b: 14 (+/-3)dBm
           802.11n: 7 (+/-3)dBm

Static receiver
sensitivity

• LTE FDD 1800/2100/2600MHz,TDD1900/2300/2600MHz:

Accorded with 3GPP TS 36.101(R8)

• WCDMA/HSPA/HSPA+ 2100/900MHz:Compliant

with 3GPP TS 25.101(R8)

• GSM/GPRS/EDGE 850/900/1800/1900MHz:

Compliant with 3GPP TS 05.05 (R99)

Power supply

• Battery build-in  3.7/5000mAh

• Input: +5±0.25V,≥1000mA

• Output:5V/1000mA

Working Time

• 16H (4G data service)

Standby Time

•48H

Charging Time

• About 6H

Dimensions

• 76mm x76mm x 24mm (D × W × H)

Weight

• About 165g

Temperature

• Operating: –10℃ to +50℃
• Storage:  –20℃ to +85℃

Humidity

•10% to 90%





Technical Specifications--Software

Basic

 specifications

• Driverless

• WebUI

• Auto connect, auto reconnect

• Display the device information by website

PIN management

• PIN unlock

Device information
display

• Signal

• Network mode

• WLAN user

• SMS status

• Battery cap

• Operator name

• Traffic statistics

• Duration time

SMS

• Writing/Sending/Receiving

• Sending/Receiving extra-long messages

• Group sending

• Storage: The messages are saved in the hard disk of the PC

or in (U)SIM card.

• Sorting

• New message prompt (visual prompt/audio prompt)









Network connection
setup

• APN management

• Set up network connection

Language

• English,Chinese,more languages could be supported upon

 requesed

WPS

• Support (Need the accessing WLAN device support)

Software installation

• Automatic installation

WLAN setting

  • Channel:1~13

  • Wireless standard:11a,11b,11b/g,11n,11b/g/n

  • WEP-OPEN,WPA-PSK,WPA2-PSK,WPA/WPA2-PSK

security encrypt

  • Up to 10 WLAN users

  • Custom SSID

  • Custom WLAN KEY



4G LTE WIFI AP Router SC-4474-4GR

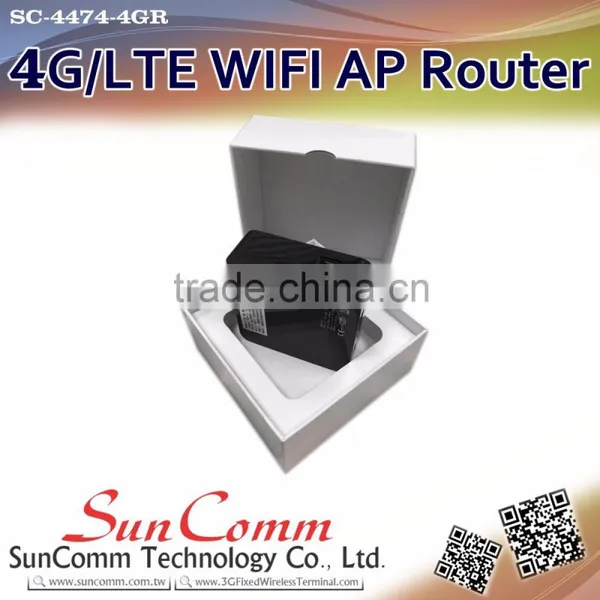

Packaging & Shipping
