Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > SC-5001-2E1 Latest Design Support H.323/SIP Protocol Trunk Gateway With 2 Port

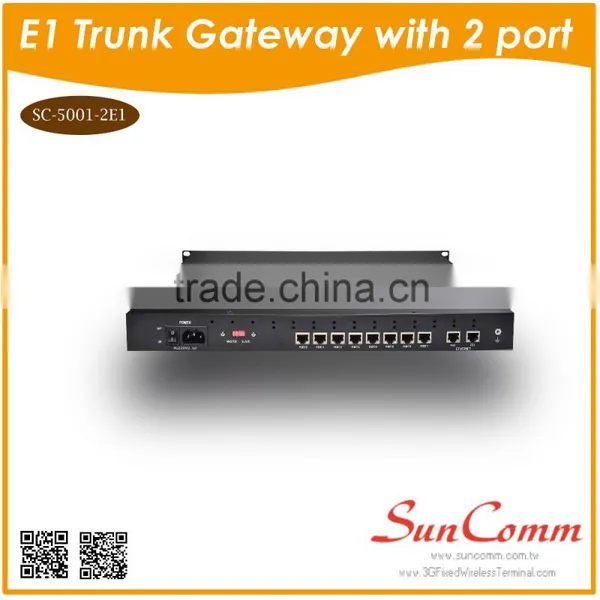

SC-5001-2E1 Latest Design Support H.323/SIP Protocol Trunk Gateway With 2 Port

Name: SC-5001-2E1 Latest Design Support H.323/SIP Protocol Trunk Gateway With 2 Port
Brand: SunComm
SKU: 133010399
Availability: InStock

SC-5001-2E1 Latest Design Support H.323/SIP Protocol Trunk Gateway With 2 Port thumbnail-1

SC-5001-2E1 Latest Design Support H.323/SIP Protocol Trunk Gateway With 2 Port thumbnail-2

SC-5001-2E1 Latest Design Support H.323/SIP Protocol Trunk Gateway With 2 Port photo-1

SC-5001-2E1 Latest Design Support H.323/SIP Protocol Trunk Gateway With 2 Port photo-2

US$ 1 - 1,230 MOQ: 10 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SunComm

Model Number:

SC-5001-2E1

Contact Supplier Request Quote Chat Now

Suncomm Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SunComm

Model Number SC-5001-2E1

SC-5001-2E1 Latest design Support H.323/SIP protocol Trunk Gateway with 2 port

Product Description

PSTN

1.ISDN PRI

23B+D (T1),30B+D (E1), NT or TE
ITU-T Q.921, ITU-T Q.931, Q.Sig

2.Signal 7/SS7

ITU-T, ANSI,ITU-CHINA

MTP1/MTP2/MTP3, TUP/ISUP

3.E1 Frame Type : DF,CRC-4,CRC_ITU

4.T1 Frame Type :
4-Frame Multi-frame (F4,FT),2-Frame Multi-frame (F12, D3/4), Extended Super-frame (F24, ESF) ,Remote Switch Mode (F72, SLC96)

5.Line Codes:

E1:NRZ,CMI,AMI,HDB3

T1:NRZ,CMI,AMI,B8ZS

6.Clock:

Local/Remote Clock Source

VoIP Protocol

SIP v2.0 (UDP/TCP),RFC3261

SDP,RTP(RFC2833), RFC3262,

3263,3264,3265,3515,2976,3311

RTP/RTCP, RFC2198, 1889
SIP-T,RFC3372, RFC3204, RFC3398
H.323
SIP Trunk Work Mode :Peer/Access
SIP/IMS Registration :with up to 256 SIP Accounts
NAT: Dynamic NAT, Rport

Software Features

Local/Transparent Ring Back Tone
Overlapping Dialing
Dialing Rules,with up to 2000
PSTN group by E1 port or E1 Timeslot
IP Trunk Group Configuration
Voice Codecs Group
Caller and Called Number White Lists
Caller and Called Number Black Lists
Access Rule Lists
IP Trunk Priority
RTP and Signaling Encryption (VOS RC4)

Maintenance

Web GUI Configuration
Data Backup/Restore
PSTN Call Statistics
SIP Trunk Call Statistics
Firmware Upgrade via TFTP/Web
SNMP v1
Syslog: Debug, Info, Error, Warning , Notice
Call History Records via Syslog
NTP Synchronization
Centralized Management System

Call Features

Flexible Route Methods

PSTN-PSTN, PSTN-IP, IP-IP, IP-PSTN

Intelligent Routing Rules
Call Routing base on Time
Call Routing base on Caller/Called Prefixes
256 Route Rules for each Direction
Caller and Called Number Manipulation

Environmental

Power Supply: 100-240VAC, 50-60 Hz
Power Consumption:25W
Operating Temperature:0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~80 ℃
Humidity:10%-90% Non-Condensing
Dimensions(W/D/H): 436*300*44.5mm(1U)
Unit Weight: 2.0kg
Compliance: CE, FCC

Series Model

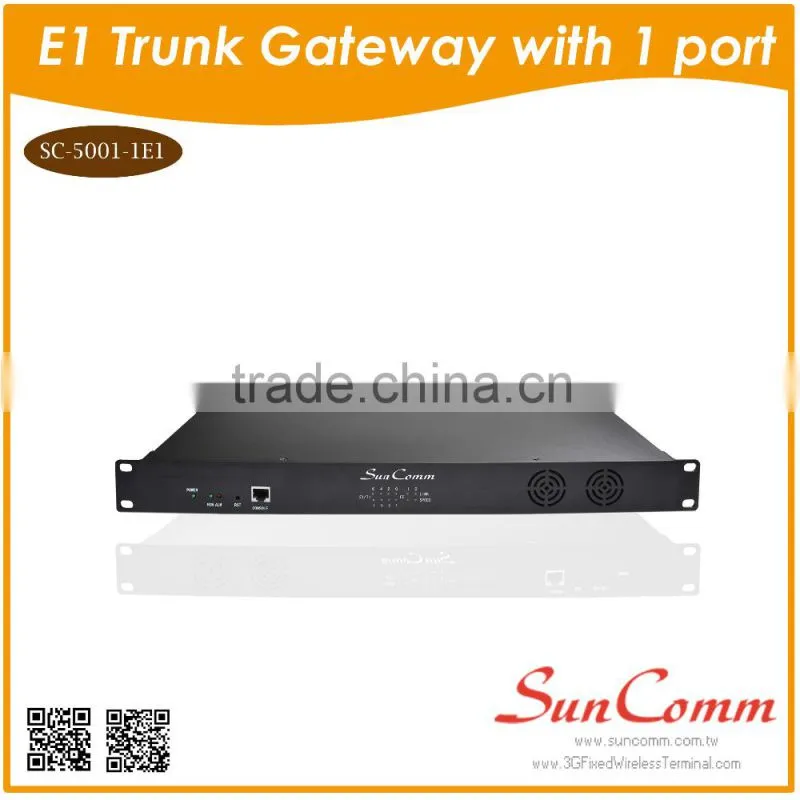

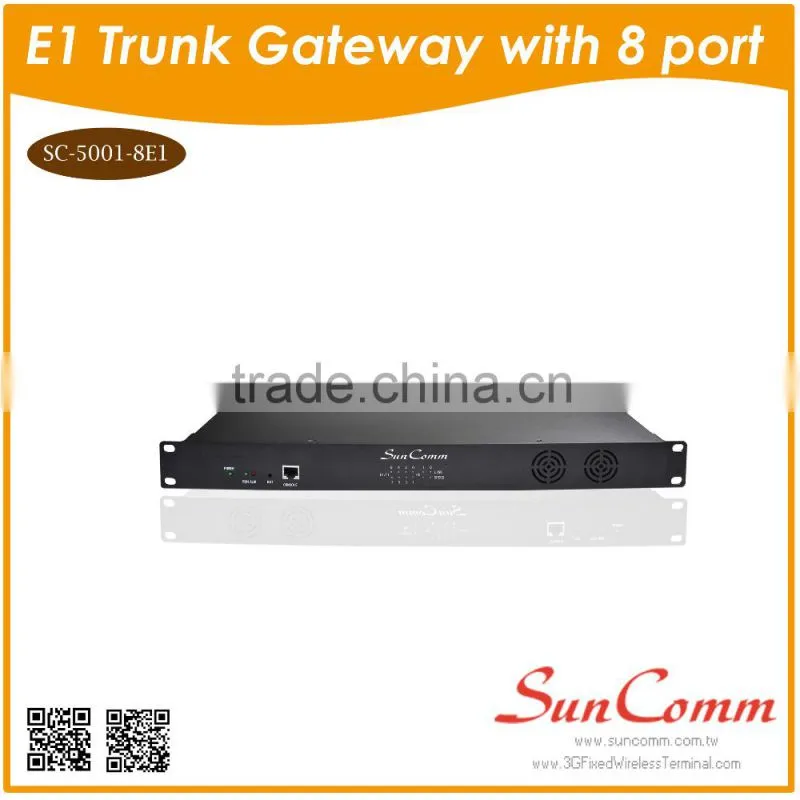

SC-5001-1E1 , SC-5001-2E1 , SC-5001-4E1 , SC-5001-8E1 Trunk Gateway support H.323/SIP protocol
