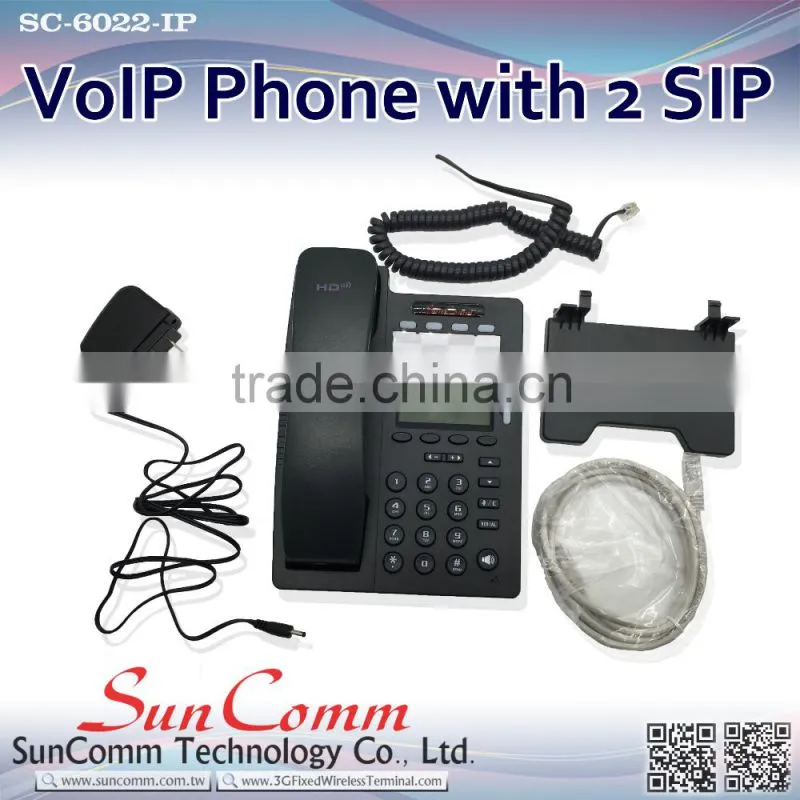

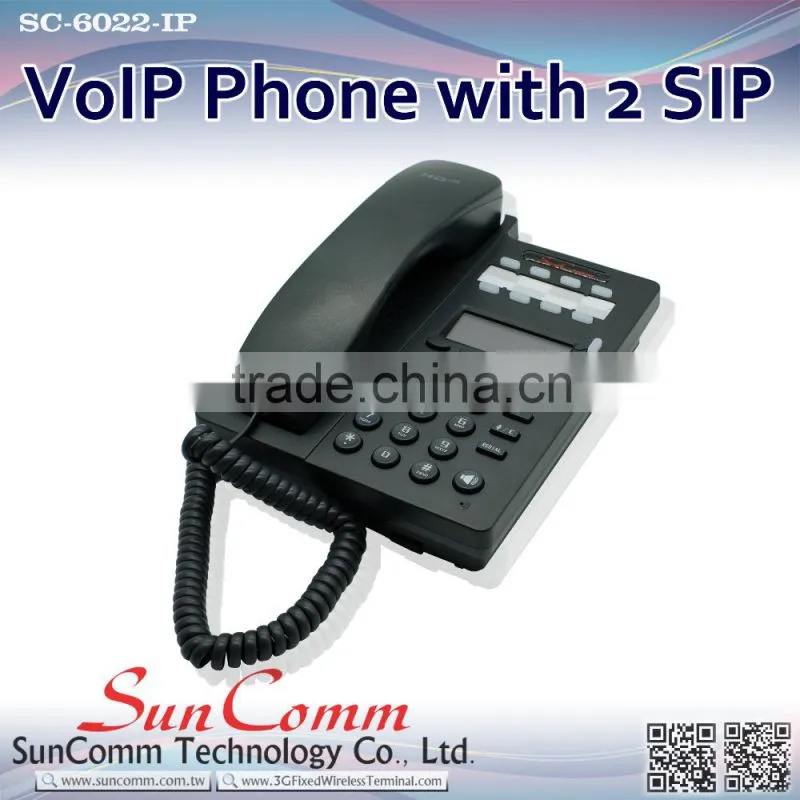

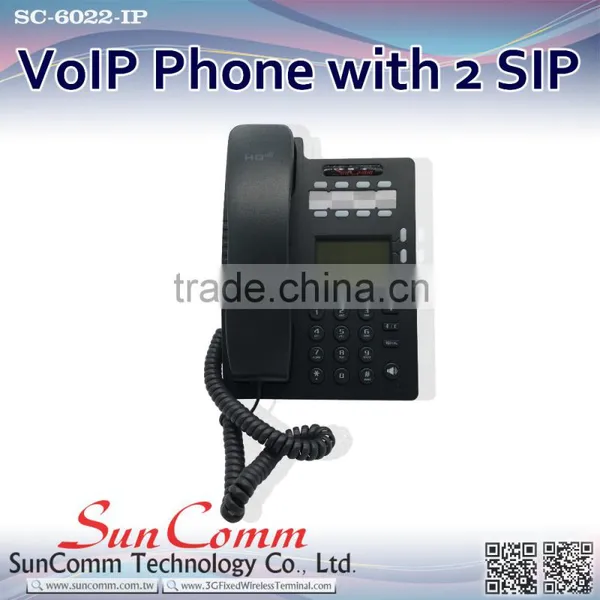

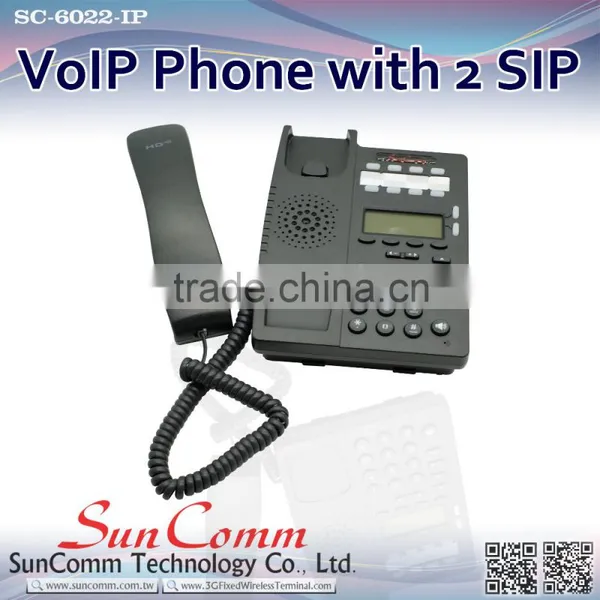

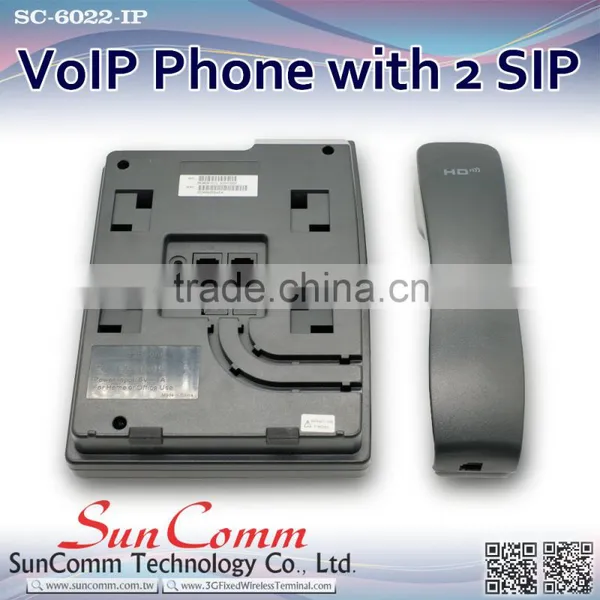

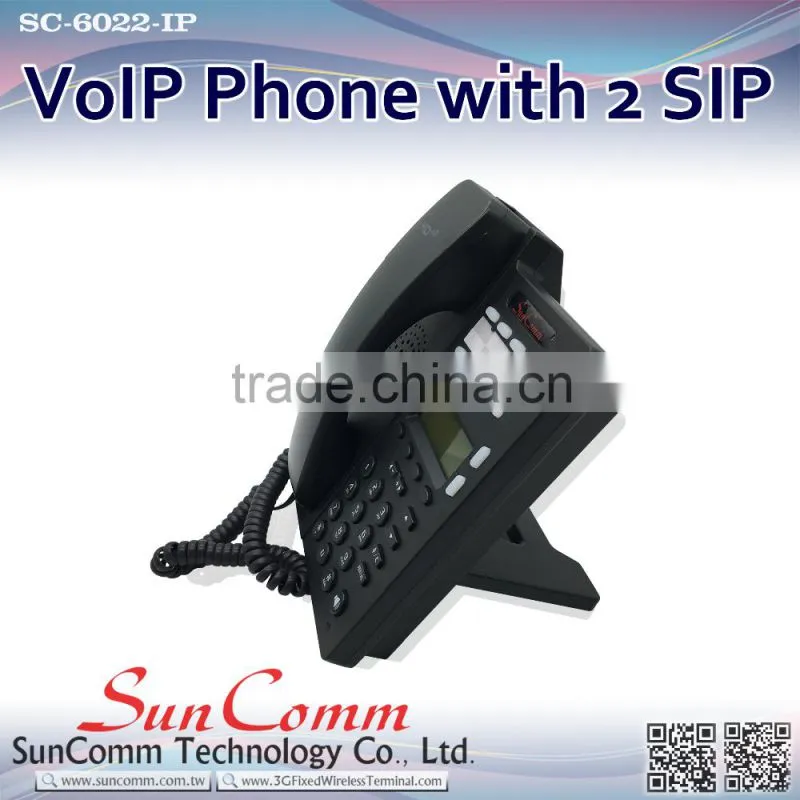

SC-6022 2 SIP line Hand-free indicator IP Phone

2 SIP accounts, Hot line

Call hold, Call waiting, Call forward, Call return; Call transfer

(blind/busy/ask)

Caller ID display, Redial, Mute, DND

Auto-answer, 3-way conferencing

Speed dial, SMS, Voicemail

Tone scheme, Volume control

Direct IP call without SIP proxy

Ring tone selection/import/delete

Black list, Hand-free indicator.

Call history: dialed/received/missed (50 -entries);

Soft keys programmable, Supports PC control

Multi-Language: Chinese,English,French,Russian,Italian,Polish,Portuguesa,Portuguesa-Brasil,Spanish,Turkish

Advanced Features

13 programmable keys

XML Phone Book search and input & output

Enterprise phone book(800 entries)

LDAP phone book

IP PBX System Integration

Busy lamp field (BLF), BLF list

Bridged line appearance (BLA)

DND & Forward synchronization

Intercom, Paging, Music on hold

Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection

Network conference, Distinctive ring tone

Codes and Voice Features

Wideband Codec: G.722

Narrowband codec: G.711μ/A, G.723.1

G.726, G.729AB,iLBC

VAD, CNG, AEC, AGC

Full-duplex,

Security

LLDP, VPN(L2TP) ,802.1x

Transport Layer Security (TLS)

Digest authentication using MD5/MD5-sess

Secure configuration file via AES encryption

Phone lock for personal privacy protection

Admin/User 2-level configuration mode

Network Features

SIP v1 (RFC2543), v2 (RFC3261)

DNS SRV (RFC3263); IPv6

NAT Traversal: STUN mode

DTMF: In-Band, RFC2833, SIP Info, Auto

HTTP/HTTPS Web Management

IP Assignment: Static/DHCP/PPPoE

Bridge/Router mode for PC port

TFTP/DHCP/PPPoE client

DNS client, NAT/DHCP server

Management

Auto-provision via FTP/TFTP/HTTP/HTTPS; PNP; SNMP V1/2 , TR069 optional

Configuration: browser/phone/auto-provision Trace package and system log export

Physical Features

128*64 graphic LCD, Backlight

33 keys, including 13 programmable keys,

3 LEDs: 2* account lights, 1*status light

1* RJ-9 handset port

1*RJ-9 headset port(Option)

1*PSTN port(Option)

2xRJ45 10/100M Ethernet ports

Power adapter: AC 100~240V input and

DC 5V/1A output

Power over Ethernet ,IEEE 802.3af,class 0(Option)

Power consumption: 1.5W

Net weight: 0.62kg

Dimension: 213*157*39mm

Operating humidity: 10~95%

Storage temperature: up to 60°C

Package Features

Qty/CTN: 10 PCS

N.W/CTN: 6.2kg

G.W/CTN: 8.5kg

Carton Meas: 430x345x250mm
