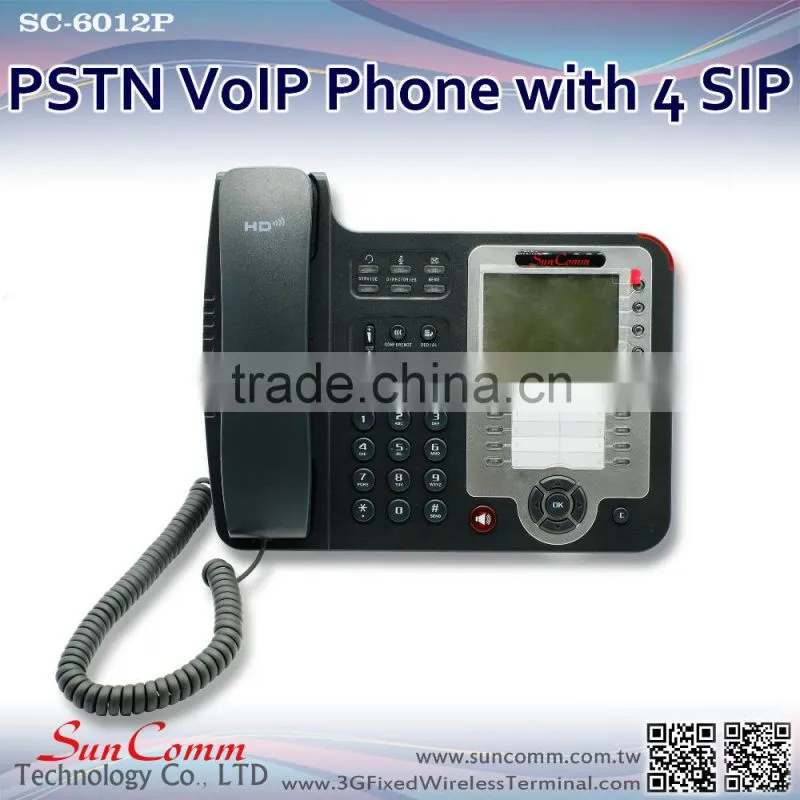

SC-6012P Professional microphone headsets IP Phone with PSTN Support 4 SIP lines

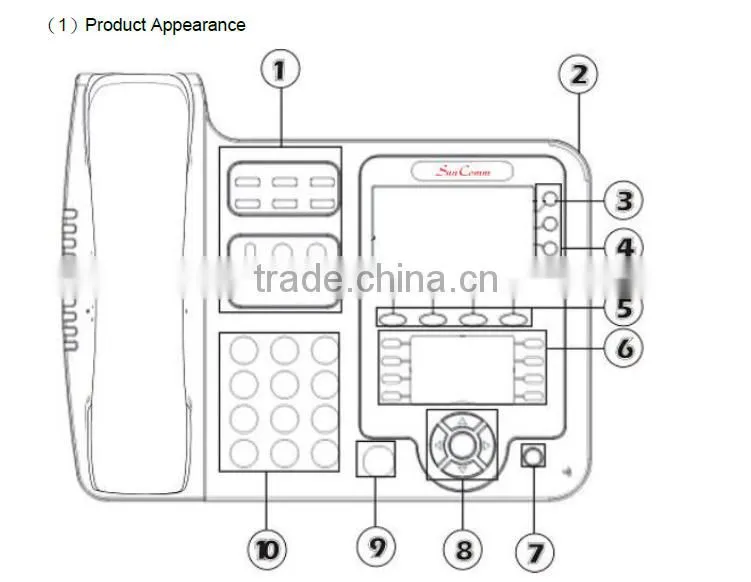

Appearance
| 1 Function Key Area (Simple, convenient, fast) |
| 2. Incoming call Indicator light |
| 3.Caller display (Support English display, Caller info, Phone status, etc) |
| 4.Line Keypad (Line Status, Line Switch, Speed Dial, Call Queuing) |
| 5.Software keypad (Operation screen shortcut, user-defined keyboard shortcuts) |
| 6.Programmable Keypad (BLF, BLA, Speed Dial) |
| 7.Delete key |
| 8.Navigation keypad arrow keys, shortcut keys, confirm key |
| 9.Hands-free key |
|
10.Dial keypad (Figures, English alphabet) (1) Function keys include: headset key, closed-tone key, message key, menu key, conference key, transfer key, redial key, maintaining key. |
Product Features
|
Dual-module(VoIP+PSTN): SC-6012P IP PHONE can provide both PSTN and VOIP network working together. |
| Clear voice |
|
Advanced Call Process: Support 4 lines bi-color indicator light circuit, managing two lines at the same time, carrying out call queuing and circuit switch, it’s also convenient for tele-conference and call transfer, meet the communication requirement at the busy time. |
|
Support 8 Programmable Keys: Programmable keys can be defined as speed call key or other functional key to the appointed contact for improving the operating efficiency. 8 pieces Programmable Keys support the indicator light in busy line. |
|
Enterprise Address Book Application: Support business contacts private phone book applications, to help with flowers quickly find the call number . |
|
Extend Modules: Supports 6 extend modules that totally contain 192 programming buttons. With the Busy Lamp Field function, operators can manage and monitor the calls more efficiently. |
| PoE Support and AC power adapter |
| Support HTTP/TFTP/FTP Auto-provision/TR069upgrade software |
Technical Features
| Item | SC-6012P |
| Screen |
Grayscale LCD with background light 240*160 pixel |
| Language | Chinese/English |
| Line | 4 lines for VoIP and 1 PSTN |
| Function Keys |
4 Soft keys 4 Line keys 6 Navigation keys (Arrow button, OK button, C button) Volume adjust , Hands-free, Mute, Headset, Message Menu, Directory, Service, Hold, Redial, Conference, Transfer |
| VoIP Protocol | SIP 2.0 |
| Network Protocol | HTTP,BOOTP,FTP,TFTP,IEEE 802.1Q,*IEEE 802.1X |
| Codec | G.723.1 (5.3K 6.4K b/S),G.729 A/B (8Kb/s),G.711 A/U (64Kb/S),G722 |
| QoS | TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms) |
| Network | 2 × RJ45 10/100M Ethernet Interfaces (LAN/PC) IP Assignment: static IP, DHCP, PPPoE DNS Client, VPN(L2TP), VLAN |
| Speech | Speech HD Codec, HD Handset Handle, Headset and Hands-free mode available Support call centre headsets and PC headsets Separated 9 Level Volume Adjustment |
| Call Processing | Line Status Indicator Multi-Account Always Forward, Busy Forward, No-answer Forward Hotline number (Immediately/Delay) Call Waiting, Call Queuing, Line Switching Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback One Key Dial, Redial Phone directly speed dial, Call record direct dial 3-way conference DnD, *Blacklist Voice mail, Voice Prompt, Voice Message BLF, BLA |
| Expansion Interface | EXT: EXT32 programmable key module *USB port |
| Application | Public phone directory Private phone directory |
| Security | Login LCD by password Login the website by password Signaling encryption Media encryption |
| Management | Upgrade: HTTP/TFTP/FTP Auto-provision/TR069 Configurations: Phone/HTTP/Auto-provision/TR069 Debug: Telnet/Phone/Web |
| Power Supply | Power adapter: AC100~240V input & DC 12V/1A output PoE (IEEE 802.af) |
| Specification |
Storage Temperature: 0℃~ 60℃ Operating Humidity: 10%~90% Size: 287mm*214mm*90mm Net weight: 1.37kg |
| Package |
Qty/CTN:10 unit N.W/CTN:13.7kg G.W/CTN:14.2kg Measurement: 0.081CBM Carton Meas: 470mm*450mm*290mm |
| Certifications | CE,FCC,RoHS |
We also have CE Certifications for SC-368W, SC-9039-3G, SC-396-GP3G/ SC-393-GP3G, SC-9068-GH3G, SCG-31/SCG-31P, SCG-4Qe/ SCG-8Qe, SC-9029-RA, SC-9079-3G
