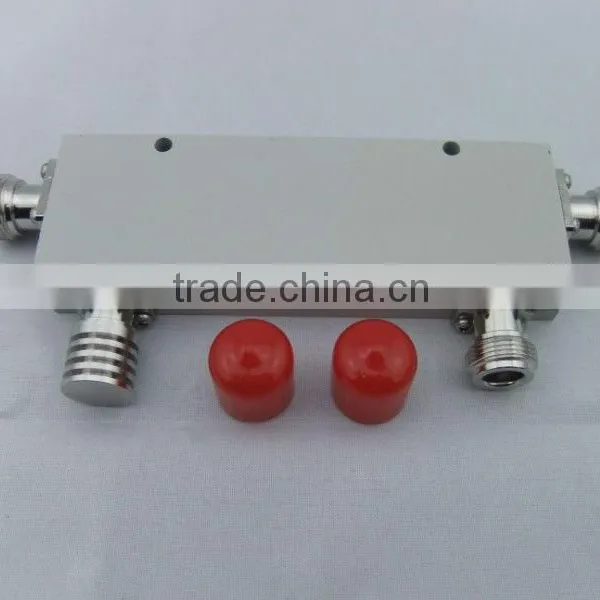

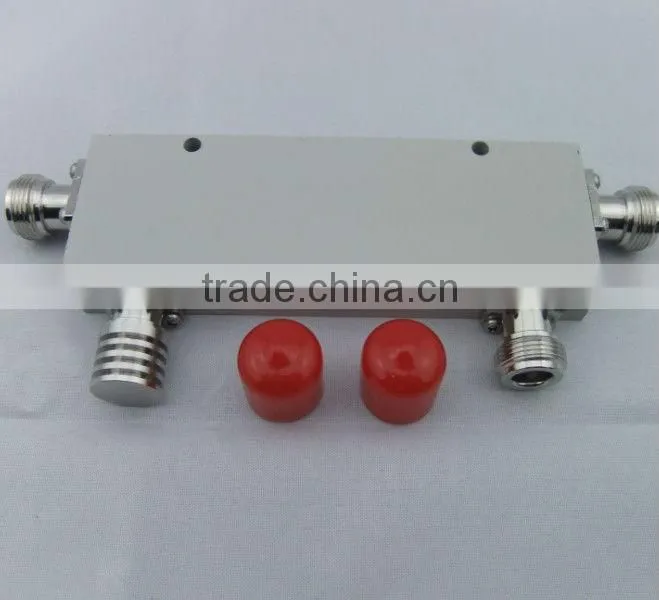

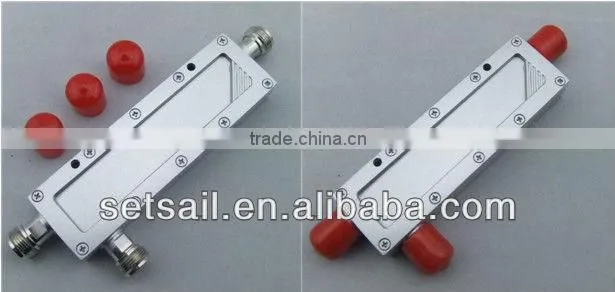

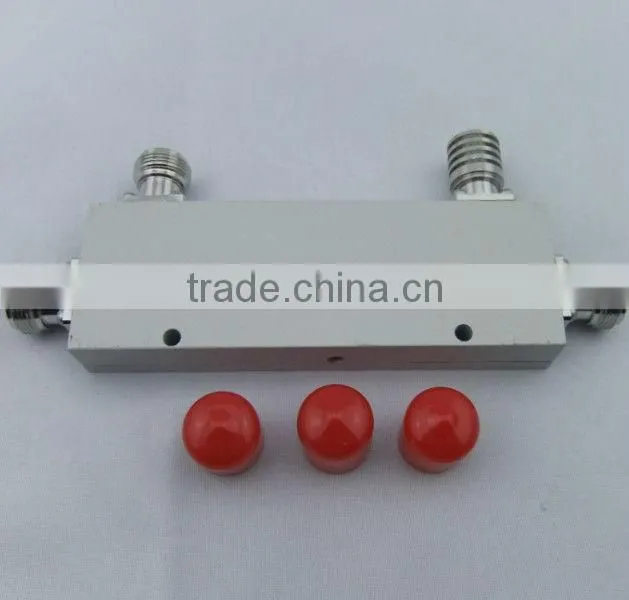

Help Center698-2700MHz, RF Power Coupler
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YF-DC-0727-XX-WF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
698-2700MHz, RF Cavity Directional CouplerUS$ 1 - 50MOQ: 1 Piece -
800-2700MHz, RF Cavity Directional CouplerUS$ 1 - 50MOQ: 1 Piece
-
Directional Coupler (670-2700MHz)NegotiableMOQ: 5 Pieces
-
800-2500MHz 40dB RF Cavity Directional CouplerNegotiableMOQ: 20 Pieces
-
0.8-2.5GHz 40dB RF Cavity Directional CouplerNegotiableMOQ: 20 Pieces
Place of Origin
Anhui, China
Brand Name
SETSAIL
Model Number
YF-DC-0727-XX-WF
Specifications
1. We are Manufacturer of RF Hybrid Coupler2. OEM Service is available
3. 500pcs in stock
4. Hybrid Coupler Best Price
Applications:
698-2700MHz, 5/6/7/8/9/10/15/20/30/40/50dB, N-female, 200W, RF Cavity Directional Coupler(Used in IBS and BTS projects)
Widely exported to USA, Australia, Middle East, India, Southeast Asia, EU.
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Directional Coupler: 800-2500MHz
Technical Specifications:
| Model Number | YF-DC-0727-06-WF | YF-DC-0727-10-WF | YF-DC-0727-15-WF | YF-DC-0727-20-WF | YF-DC-0727-30-WF |
| Frequency | 698-2700 | 698-2700 | 698-2700 | 698-2700 | 698-2700 |
| Insertion Loss | 1.7 | 0.8 | 0.5 | 0.4 | 0.3 |
| VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| Directivity | 20 | 20 | 20 | 20 | 20 |
| Power | 200 | 200 | 200 | 200 | 200 |
| Impedance | 50 | 50 | 50 | 50 | 50 |
| Coupling | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 |
| RF Connector | N-female | N-female | N-female | N-female | N-female |
| Relative Humidity | 5%-95% | 5%-95% | 5%-95% | 5%-95% | 5%-95% |
| Color | Black | Black | Black | Black | Black |
| Temperature | -35~+125 | -35~+125 | -35~+125 | -35~+125 | -35~+125 |
| Weight | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 |
| Apllication | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor |
Note: Specifications can be changed according with customers' requirements.
