Specifications
1. We are Manufacturer of RF Coupler2. OEM Service is available
3. 500pcs in stock
4. Competitive Price
5. Best Service

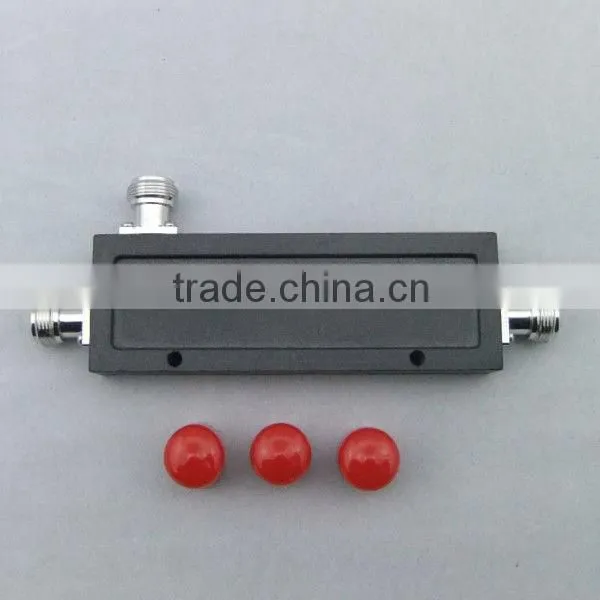

Applications: 800-2700MHz, RF Cavity Directional Coupler (3-40dB)
1. Cavity Directional Coupler is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. In 2008, Setsail has successfully exported more than 20,000 pcs to one of India customers, which is used in ZTE's IBS and BTS projects in Brazil. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of the Directional Coupler is around 50,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.
2.Cavity Directional Coupler is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
3. Cavity Directional Coupler is just one of SETSAIL's Coupler Products Line. SETSAIL is capable of manufacturing and providing 100W, 200W with frequency: 800-2500MHz, 800-2700MHz, 698-2700MHz, 350-520MHz, 350-2700MHz, 350-1000MHz, 140-150MHz.
Technical Specifications:
| Model Number | YF-DC-0827-06-NF | YF-DC-0827-10-NF | YF-DC-0827-15-NF | YF-DC-0827-20-NF | YF-DC-0827-30-NF |
| Frequency | 800-2500 | 800-2500 | 800-2500 | 800-2500 | 800-2500 |
| Insertion Loss | 1.7 | 0.8 | 0.5 | 0.4 | 0.3 |
| VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| Directivity | 20 | 20 | 20 | 20 | 20 |
| Power | 200 | 200 | 200 | 200 | 200 |
| Impedance | 50 | 50 | 50 | 50 | 50 |
| Coupling | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 |
| RF Connector | N-female | N-female | N-female | N-female | N-female |
| Relative Humidity | 5%-95% | 5%-95% | 5%-95% | 5%-95% | 5%-95% |
| Color | Black | Black | Black | Black | Black |
| Temperature | -35~+125 | -35~+125 | -35~+125 | -35~+125 | -35~+125 |
| Weight | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 |
| Apllication | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor |
Note: Specifications can be changed according with customers' requirements.

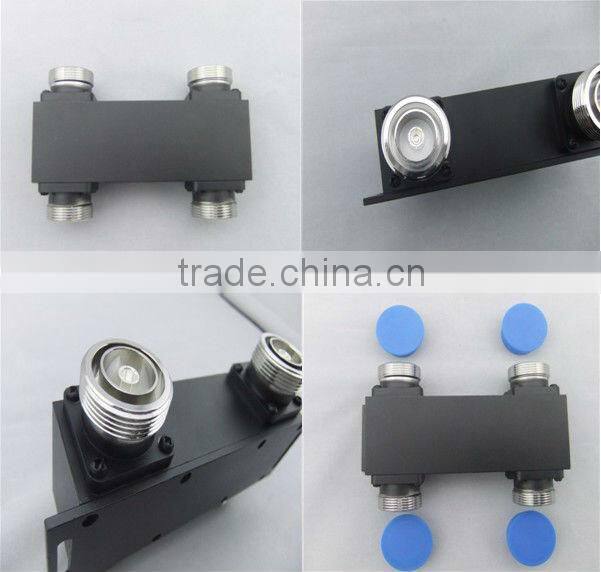

698-2700/800-2700/800-2500MHz, N-female RF 3dB Hybrid Coupler/Hybrid Combiner
698-2700/800-2700/800-2500MHz, DIN-female RF 3dB Hybrid Coupler/Hybrid Combiner

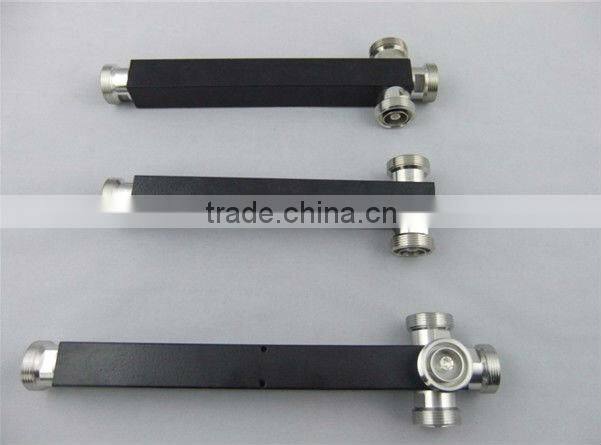

698-2700/800-2700/800-2500MHz, DIN-female RF Power Splitter/Divider (BTS used)

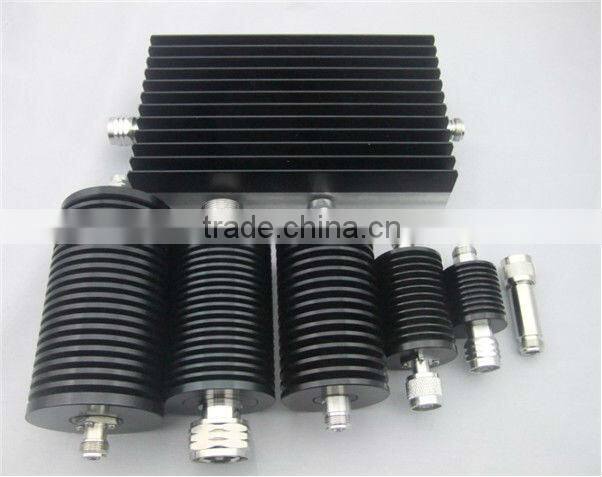

DC-3GHz, 1-200W, N/DIN Connector RF Fixed Coaxial Attenuator

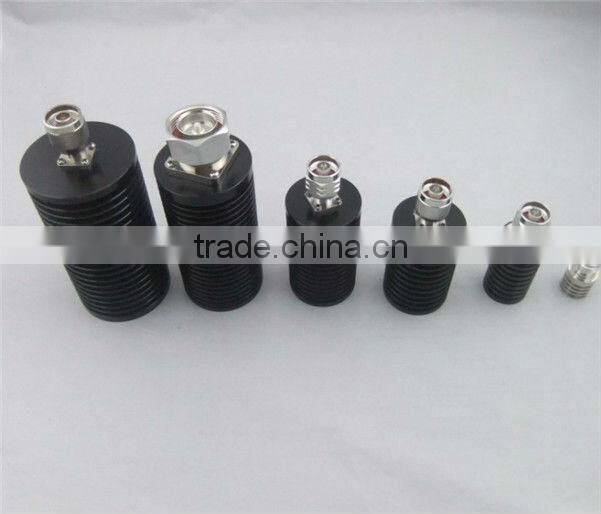

DC-3GHz, 1-200W, N/DIN Connector RF Dummy Load/Termination Load
