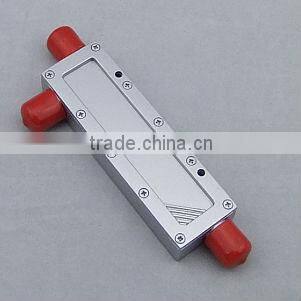

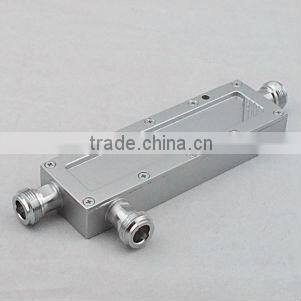

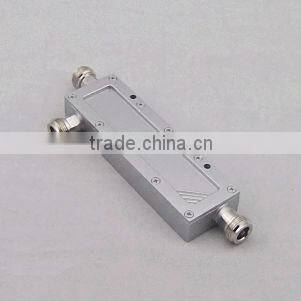

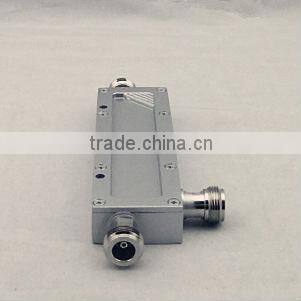

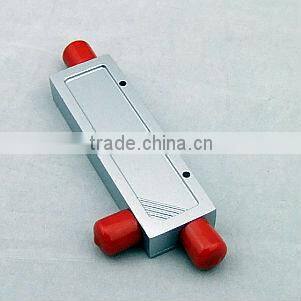

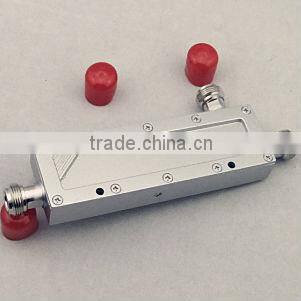

Directional Coupler (670-2700MHz)
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YF825-5-NF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
800-2500MHz 40dB RF Cavity Directional CouplerNegotiableMOQ: 20 Pieces -
0.8-2.5GHz 40dB RF Cavity Directional CouplerNegotiableMOQ: 20 Pieces
-
800-2700MHz Directional CouplerNegotiableMOQ: 10 Pieces
-
698-2700MHz, RF Directional Coupler (IBS Telecommunication)NegotiableMOQ: 1 Piece
-
30dB RF Directional Coupler 698-2700MHz, (IBS Telecommunication)US$ 1.2 - 10MOQ: 1 Piece
Place of Origin
Anhui, China
Brand Name
SETSAIL
Model Number
YF825-5-NF
Specifications
1. We are Manufacturer2. OEM Service is available
3. 1000pcs coupler in stock
4. Hybrid Coupler Best Price
800-2500MHz, 5/6/7/8/9/10/15/20/30/40/50dB, N-female, 200W, RF Cavity Directional Coupler
Used in IBS and BTS projects
Widely exported to USA, Australia, Middle East, India, Southeast Asia, EU.
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Directional Coupler: 800-2500MHz
Technical Specifications:
| Model Number | YF825-5-NF | YF825-6-NF | YF825-7-NF | YF825-10-NF | YF825-15-NF |
| Frequency | 800-2500 | 800-2500 | 800-2500 | 800-2500 | 800-2500 |
| Insertion Loss(dB) | 2.0 | 1.75 | 1.45 | 0.8 | 0.45 |
| VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| Directivity | 20 | 20 | 20 | 20 | 20 |
| Power | 200 | 200 | 200 | 200 | 200 |
| Impedance | 50 | 50 | 50 | 50 | 50 |
| Coupling(dB) | 5 | 6 | 7 | 10 | 15 |
| RF Connector | N-female | N-female | N-female | N-female | N-female |
| Relative Humidity | 5%-95% | 5%-95% | 5%-95% | 5%-95% | 5%-95% |
| Color | Slivery-white | Slivery-white | Slivery-white | Slivery-white | Slivery-white |
| Temperature(deg) | -40~+80 | -40~+80 | -40~+80 | -40~+80 | -40~+80 |
| Weight | 0.165 | 0.165 | 0.165 | 0.23 | 0.23 |
| Apllication | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor |
