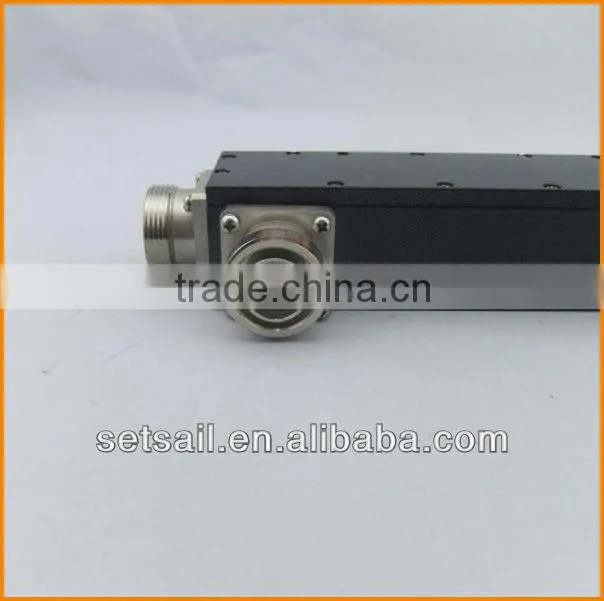

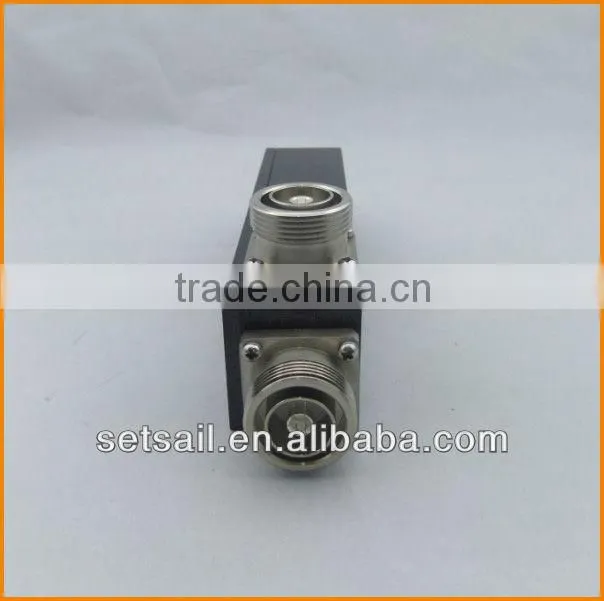

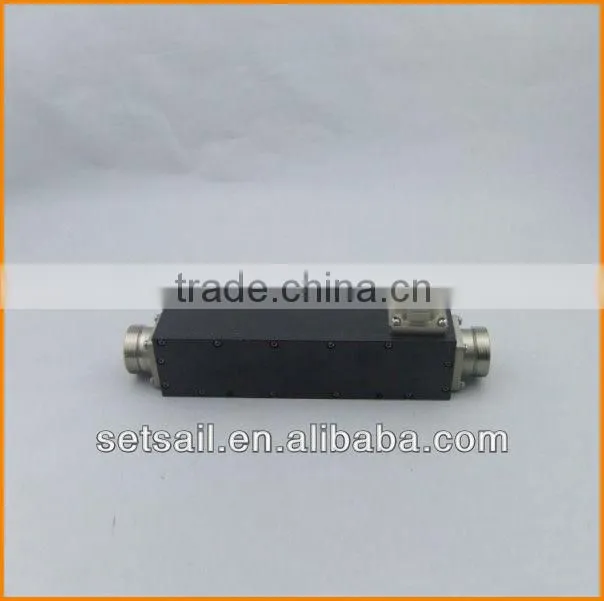

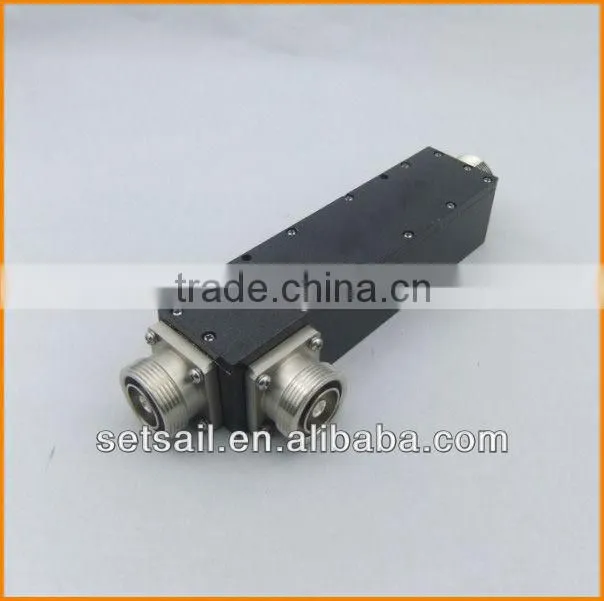

800-2500MHz 40dB RF Cavity Directional Coupler
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YFTX-RC-0825-40-DINC
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.8-2.5GHz 40dB RF Cavity Directional CouplerNegotiableMOQ: 20 Pieces -
800-2700MHz Directional CouplerNegotiableMOQ: 10 Pieces
-
698-2700MHz, RF Directional Coupler (IBS Telecommunication)NegotiableMOQ: 1 Piece
-
30dB RF Directional Coupler 698-2700MHz, (IBS Telecommunication)US$ 1.2 - 10MOQ: 1 Piece
-
670-2700MHz, RF Coupler Directional (IBS Telecommunication)NegotiableMOQ: 1 Piece
Place of Origin
Anhui, China
Brand Name
SETSAIL
Model Number
YFTX-RC-0825-40-DINC
Specifications
1. Manufacturer of Directional coupler2.Low Insertion loss for RF Directional coupler
3.OEM services
4.two years warranty
Technical Specifications
800-2200/800-2500MHz 40dB RF Cavity Directional Coupler
Product Name |
RF Cavity Directional Coupler |
Model |
YFTX-RC-0825-40-DINC |
Frequency(MHz) |
800-2500 |
Product Name |
800-2500MHz 40dB RF Cavity Directional Coupler |
Coupling(dB) |
40±1.0 |
Insertion Loss(dB) |
0.5 |
VSWR |
<=1.25:1 |
Power Capacity(W) |
500 |
Directivity(dB) |
>=20 |
RF Connector |
DIN-female (Input), DIN-male(Output) ,N-female(Coupler port) |
Impedance(ohm) |
50 |
Relative Humidity |
5%-95% |
Color |
Black-plated or Grey-plated |
Temperature(deg) |
-35~+125 |
Weight(kg) |
0.60 |
