Specifications
price concrete block machine QT10-151.Siements motor,Mitsubish PLC
2.automatic hydraulic
ild,hollow,paver
4.ISO,CE,SGS
Automatic concrete block making machine price QT10-15 Automatic paver block making machine price
Dongyue Machinery Group Co.,Ltd is a company specialized in producting Automatic block machine, aerated concrete block machine, the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, Oxygenated diesel, dimethyl ether , plant asphalt nine series,more than 60 varieties.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Block mold machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.
Screw Conveyer (Optional fitment): loading bins of the This is instrumental for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.
Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.
|
1. Detailed specification: | |||
Dimension of host machine |
3500×2220×2850mm |
control style |
PLC |
forming style |
Hydraulic |
Vibration force |
100KN |
vibrator style |
table and mould vibrate togather |
raw material feeding style |
360 degree revole |
forming hight |
40-250mm |
moulding period |
15-20S |
moulding aera |
1025×810mm |
size of pallet |
1350×900×30mm |
weight of host machine |
14ton |
Mixer style |
JS750 |
General water Consumption |
12T/day |
Voltage |
220/240/380/440V |
|
Simple block machine line area needed | |||
Workshop |
200m2 |
||
Office |
100m2 |
||
Total area |
About 2000m2 |
||
|
Worker arrangement | |||
operate |
1 |
Material loader |
1 |
Drive forklift |
1 |
Feeding pallets |
1 |
Maintain |
1 |
Total |
5 |
|
Production capacity | |||
Size(L x W x H) |
Pcs /Mould |
Pcs / Hr |
|
400X100X200 |
20 |
3000-3600 |
|
400X150X200 |
14 |
2100-2520 |
|
400X200X200 |
10 |
1500-1800 |
|
400X250X200 |
8 |
1200 |
|
3. Automatic concrete block making machine price QT10-15 Automatic paver block making machine price main advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
4 .Technical characteristics of Automatic concrete block making machine price QT10-15 Automatic paver block making machine price :
1). Automatic block production lines, includees a cluster cars, steam curing cellar of block production line , are of high degree of automation .It can bring the fully-automated production process of batch charging, stir forming , transmission and curing, palletizing and packing into practice.
2). our machine have passed Europe CE and ISO9001 standard.we use Germany SIEMENS motors,Japanese MITSUBISHI PLC control system
3).Use three same size oil cylinder,will work at the same time,to insure the same density and high quality of the blocks.
4).Use 360°revoling method to make the material more uniform.
5).Use the heat treatment technial to deal with the mould,so the useful life of the mould is more longer.
6).Install the cooling pump to cool down the oil ,so to insure the normal work of the Hydraulic System.
7).Install the waste recycling tank,could reduce the waste of materials

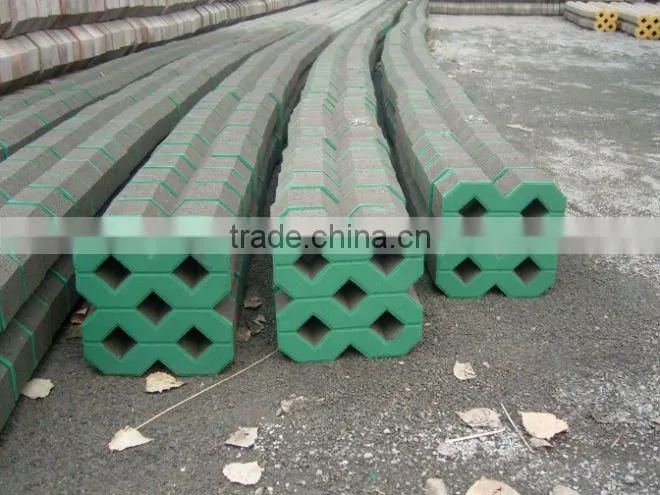

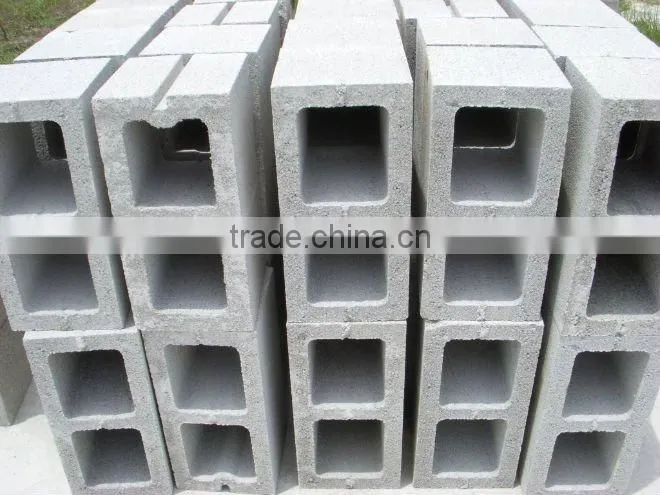

BLOCK MACHINE SAMPLES
