Specifications
automatic brick strengthening machine1.Siemens motor MITSUBISHI PLC
2.brick machine
3.Omron Travel Switch
4.ISO,CE,SGS

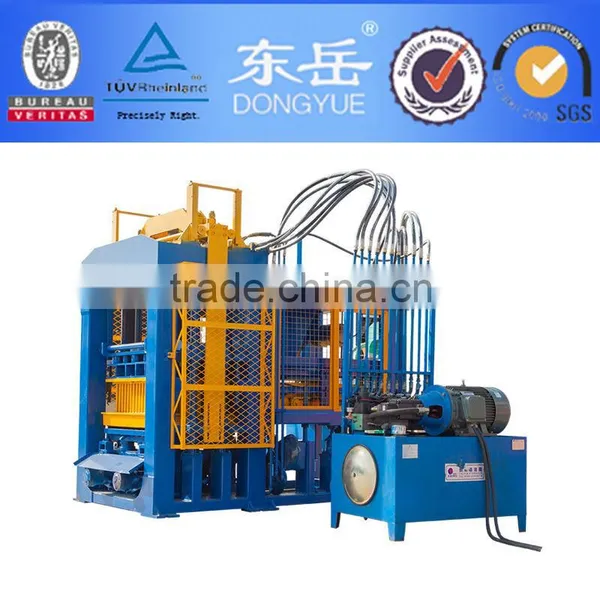

automatic hydraulic Concrete or Fly ash Brick Making Machine
automatic concrete brick making machine QT10-15 could produce many kinds of hollow block, solid brick, porous block, paver block and so on, just change the different moulds, it is economic investment for clients.
We have set up 40 sets automatic fly ash brick making machine plant in india,we also have office in Orrsia and Ahmadabad to supply the after service.
1. automatic concrete brick making machine QT10-15 main advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
2.automatic concrete block machine QT10-15 Main technical parameters
1)The workshop area: 200m2
2)The office, curing area and stacking area to arrange according your fact status.
3)Worker requirement: From loading material to transport finished block we need about 5-6 person to operate the whole line.
3.automatic concrete brick making machine QT10-15 production
4. Raw Materials, Sources and Availability.
1) Fly-Ash:
this Raw material is freely available in Thermal Power plants. There are no taxes on this itemwhatsoever. Transportation charges are only to be attended by the entrepreneur.
2)Lime/OPC:
Lime used in this process is known as Hydrated Lime, which can be obtained by Calcining Burnt Lime. One KG of Burnt Lime gives 2.2 Kgs of Hydrated Lime after Calcining. Brunt Lime can be obtained from Kuddur, Andhra Predesh where Lime Kilns and High Quality Brunt Lime are pettily available. Alternativily Hydrated lime is available as an industrial by-product of Paper Mills
This Project however aims to utilize OPC cement as a substitute for Lime. It will give faster strength to the bricks, besides giving improved consistent quality. It also ensures a better cost effectiveness for the same. Using OPC will be a standardized practice
compared to Lime, as, unlike OPC, Lime quality changes widely across suppliers and across seasons. The other prime advantages of using OPC (compared to Lime) is it’s easy availability locally through nationwide Retail Network of Cement Companies.
3)Gypsm:
This too is an industrial waste. This is available at Fertilizer Plant as in industrial wastes
4)Sand / Crusher Dust.
Sand is used as an economizer and to increase the strength of bricks to some extant. Sand is procured locally. Crusher dust can also be successfully used in place of sand.
5 automatic concrete brick making machine QT10-15 parts
(1).Cement silo (optional part, as it is hard to transport)
Freely structure, capacity 100Ton, diameter 2.3m, height 8.5-9m,weght 5T
(2).Screw conveyer
This is instrumental for transporting fly ash from the silos (optional fitting) or cement hopper (optional fitting) to the loading bins of the batching machine.
(3) PLD1200 batching machine
function: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains belt conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
(4) JS750 mixer machine
Function:All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
(5). Belt conveying machine (8m)
When the batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyor belt. The material is then carried to the mixture machine.
(6) Host machine
(7)Stacker
This lifts the pallets carrying the bricks/blocks, and stacks them on 5 to 6 layers automatically.
6.automatic concrete block machine QT10-15 production process:
(1) A mix of Fly Ash, Cement,Gypsum and Sand/Crusher Dust are blended homogenously and intimately in a semi wet form in a PAN mixture. The Water: Mix ratio to be maintained at 6 to 7 %.
(2) The loading of Fly-Ash to Pan Mixture is through screw conveyers from Silo. OPC can be charged through a similar process if Silo Loading is available or via Weigh Batch loader manually. Gypsum, the quantity being low, is loaded via Weigh Batch loader
manually. The aggregates are loaded by Front Loader Trucks through Weigh Batchers.
(3) The mix is carried to the casting machine by means of conveyer belt.
The mix is then collected fed into the machine moulds. Automatic PLC controlled Vibration and hydraulic pressure is given for a while and bricks are cast on the pallets. The pallets along with the freshly cast bricks are rolled on a roller platform to the pallet stacker.
(4) The Pallet stacker stacks the pallets along with the bricks automatically and the final stack of 5 to 10 pallets and bricks are lifted with a Fork Lifter and carried to the drying bay/room for 24 Hours for initial setting. Soon after the initial setting, the Blocks/ Bricks are stacked for curing in layers. The layers are stacked in a way to enable water and air to go all around, to ensure proper curing and drying. The curing process is continued for 7 days. The blocks are allowed to normally dry for a day. Now they are ready for dispatch.
(5) Alternatively, the blocks/bricks can be steam cures for 8 hours immediately after production, and made ready for dispatch immediately.
(6) A Compressive strength of 80 to 250 Kg/Cm2 is generally obtained from the mix design, as suggested in the “Elaborated Details Page” of this Project Profile. The resulting bricks will have around 5 % water absorption and around 1.5 Gms/CC Density.
