Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Brick Making Machine > QT40-1 Manual Hollow Block Mold Machine
QT40-1 Manual Hollow Block Mold Machine
US$ 1,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Autoclaved Plant for Fly Ash Bricks MachineUS$ 1 - 999,999MOQ: 1 Set -
Manual Concrete Block Molding Machine QT4-24BUS$ 1,000 - 9,000MOQ: 1 Set
-
Multi-function Concrete Paving Brick Machinery QT4-15CUS$ 1,000 - 30,000MOQ: 1 Set
-
Manual Concrete Brick Molding Machine QT4-24BUS$ 1,000 - 9,000MOQ: 1 Set
-
Fly Ash Brick Machine Price in Indian QT4-15CUS$ 1,000 - 30,000MOQ: 1 Set
Condition
New
Type
Hollow Block Making Machine
Brick Raw Material
Concrete
Processing
Brick Production Line
Method
Hydraulic Pressure
Automatic
Yes
Capacity
8000 blocks per shift
Place of Origin
Shandong, China
Brand Name
Dongyue manual concrete hollow block machine
Model Number
manual concrete hollow block machine price QT4-24B hollow block machin
Voltage
clients local industrial voltage
Power
8.8KW/host machine
Dimension(L*W*H)
1350*1460*1800mm
Certification
ISO,CE,SGS
Warranty
one year free gurantee
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
manual hollow block mold machine1.Siements motor
lid,hollow paver block
3.vibrate machine
4.ISO,CE,SGS

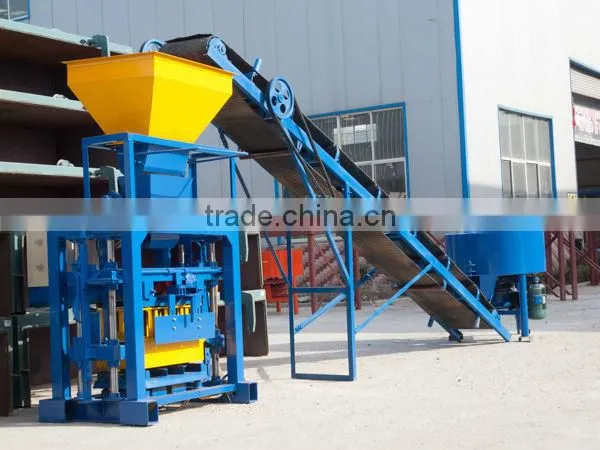

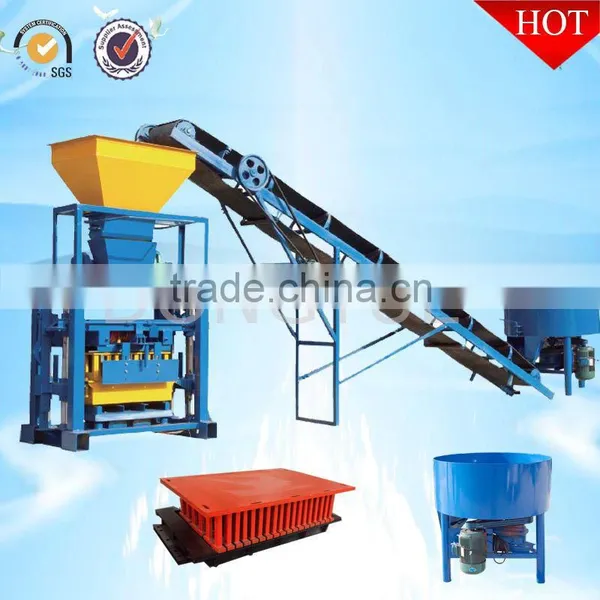

QT40-1 manual hollow block mold machine introduction
(1)QT40-1 hollow solid brick machine advantages
1.Low cost:The whole line price is 4800USD.
2.Easy operation:QT40-1 does not need engineer to install the machine,After assembling belt conveyor and connectin with power,you can use it direclty
3.Labor saving:QT40-1 needs one person to operate mixer,one peron to operate brick machine,two person to transport the block.
4.Space saving:QT40-1 occupy 60m2 workshop only.It does not have requests for brick storage area.
5.Muti function:QT40-1 can make hollow block,solid brick by changing molds.The block brick sizes are customzied.
(2) QT 40-1 hollow solid brick machine Main technical parameters
Dimension of host machine |
13500×1460×1800mm |
Host machine power |
8.8KW |
Vibration force |
33KN |
||
Moulding period |
40S |
Capacity |
17.4KVA |
The size of the pallet |
850×450×40mm |
Mixer model |
JD350 |
Weight of the machine |
About 2.5T |
||
Voltage |
as per local requests |
Theoretical workshop area : 50 m2, need about 3-5workers .the office , curing area and stacking area to arrange according your fact status.
concrete solid brick machine
(3) QT 40-1 concrete solid brick machine Production capacity
QT40-1 Theoretical Production capacity | |||
Size(LxWxH) |
Pcs/Mould |
Pcs/hour |
Pcs/ 8 Hr |
400X150X200 |
5 |
360-450 |
2880-3600 |
400X200X200 |
4 |
280-360 |
2240-2800 |

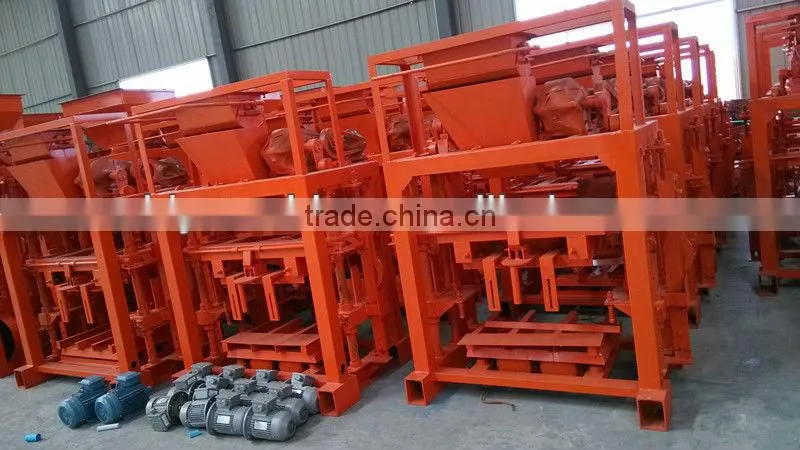

QT40-1 hollow solid brick machine stock overview

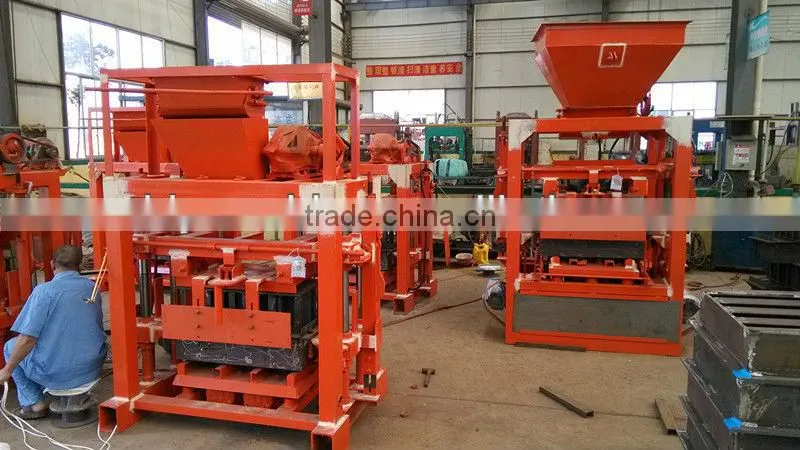

QT40-1 hollow solid brick machine prodution overview

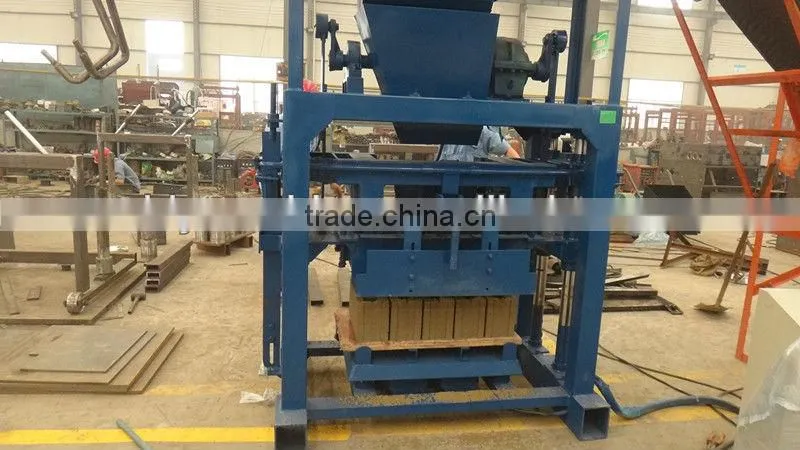

QT40-1 hollow solid brick machine test running overview

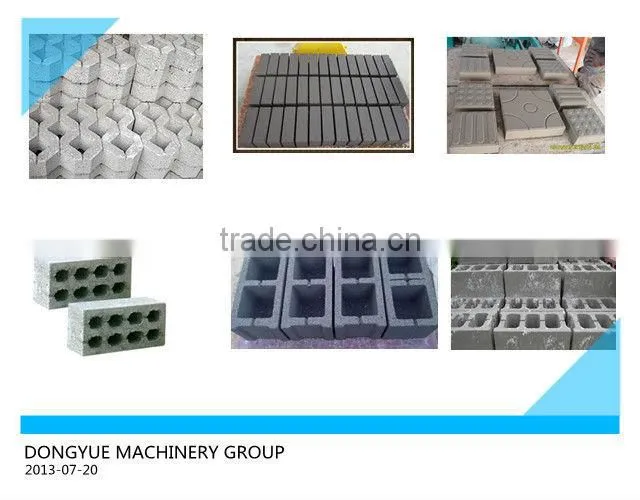

QT40-1 hollow solid brick machine finished product overview
4) Warranty:Our machine is covered with one year warranty.The spare parts will be replaced freely
5)Transportatin:QT40-1 block machine can be contained in 20Gp container with 600pcs of pallet You can also ship by LCL
6)Payment terms
a)QT40-1 block machine needs 25 days to finish production.The production cycle varys as per your mould quanitty and shape
B)30% down payment is paid before loading,70% is paid before loading.L/C is acceptable.
