Hebel Block Machine AAC Block Machine (10 Lines in Indoesnia)

Hebel Block Machine AAC Block Machine (10 Lines in Indoesnia) thumbnail-1
Hebel Block Machine AAC Block Machine (10 Lines in Indoesnia) photo-1
US$ 500,000 - 900,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, aac production line
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Dongyue Machinery Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, aac production line
Brick Raw Material Concrete
Processing Brick Production Line
Method Autoclaved Aerated Concrete
Automatic Yes
Capacity 50000/100000/150000/200000/250000/300000CM/year
Place of Origin Shandong, China
Brand Name dongyue
Model Number aac production line
Voltage clients industrial voltage
Power 300KW
Certification ISO,CE,SGS
Warranty ONE YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Hebel block machine AAC block machine (10 lines in Indoesnia)
1.Germany Technology
2.sand or fly ash
3.Siemens motors
4.ISO

   Hebel block machine AAC block machine (10 lines in Indoesnia)

1.  AAC block production line materials:



The main materials are sand/ fly ash,cement,gypsum,lime,aluminum powder





1. Sand (50-60%)



Super grade

First grade

Qualified product

SiO2

≥

85%

75%

65%

CI

≤

0.02

0.03%

0.03%

Mica

≤

0.5%

0.5%

1%

SO3

≤

1%

1%

2%

Clay

≤

3%

5%

8%

KO2 + Na2

≤

1.5%

3%

5%



2. Lime (8-25%)

Item

Grade

Super Gr.

1st Gr.

2nd Gr

A(CaO+MgO)       Quality Fraction %

≥

90

75

65

MgO               Quality Fraction %

≤

2

5

8

SiO2                       Quality Fraction %

≤

2

5

8

CO2               Quality Fraction %

≤

2

5

7

Digestion speed ,min

≤

5-15

Digestion temperature ,   °C

≥

60-90

Undigested residue quality fraction ,%

≤

5

10

15

Fineness (0.080 square hole sieve left amount) %

≤

10

15

20





3.Cement (6-15%)

SiO2

Al2O3

Fe2O3

CaO

MgO

C3S

C2S

C3A

C4AF

21-23

5-7

3-5

64-48

4-5

44-59

18-30

5-12

10-18

4. Gypsum/Plaster (3-5%)

CaSO4

>

70%

MgO

<

2%

Chloride

<

0.05%

Preferably ground residue 90µm

<

10-15%



5. Aluminium Power (about 0.08%)

Type and recommendation for supply depend on raw materials and mix formula

Metal Content

Approx.

>=65%

Powder



2.  aac block production line production process:

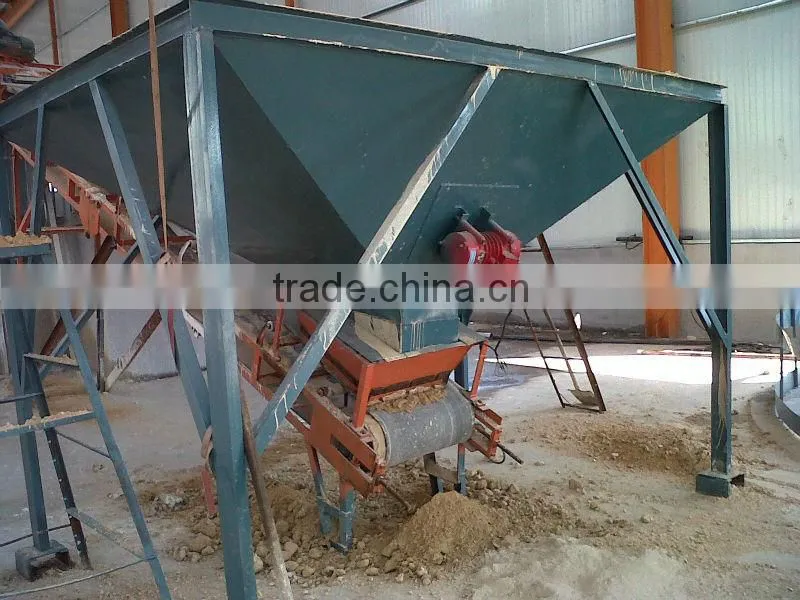

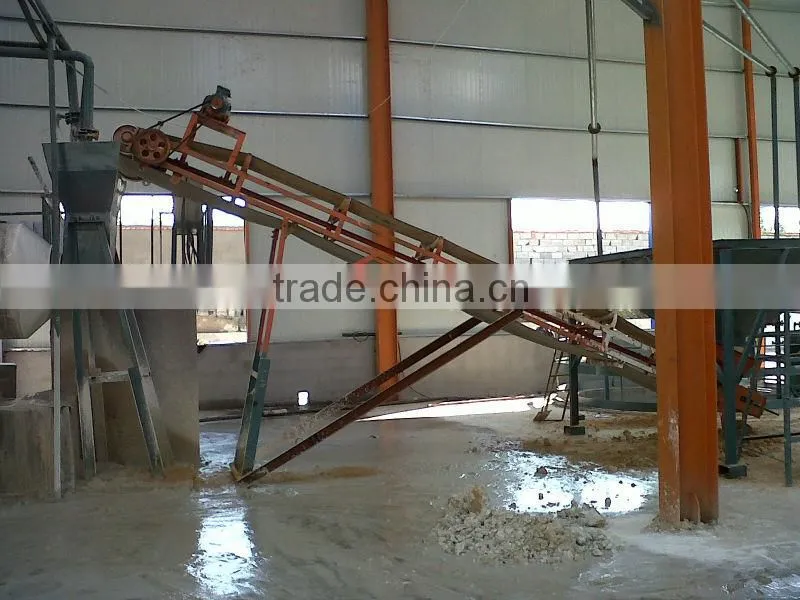

1)First, the Fly Ash is mixed with water, and made Slurry in a slurry mixture. If

Sand is used as a base material, we need a ball mill to grind the sand to fine power. The

slurry making process is same sand.

 Hebel block machine AAC block machine (10 lines in Indoesnia)Hebel block machine AAC block machine (10 lines in Indoesnia)

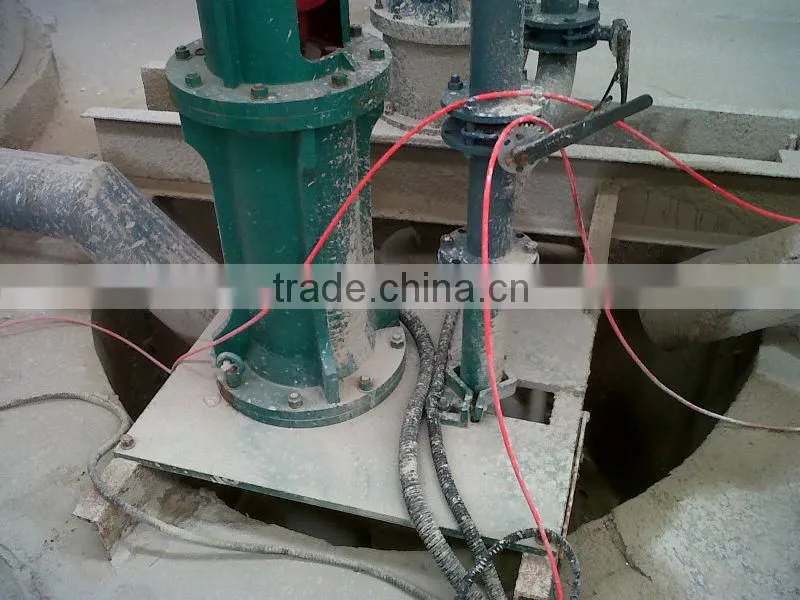

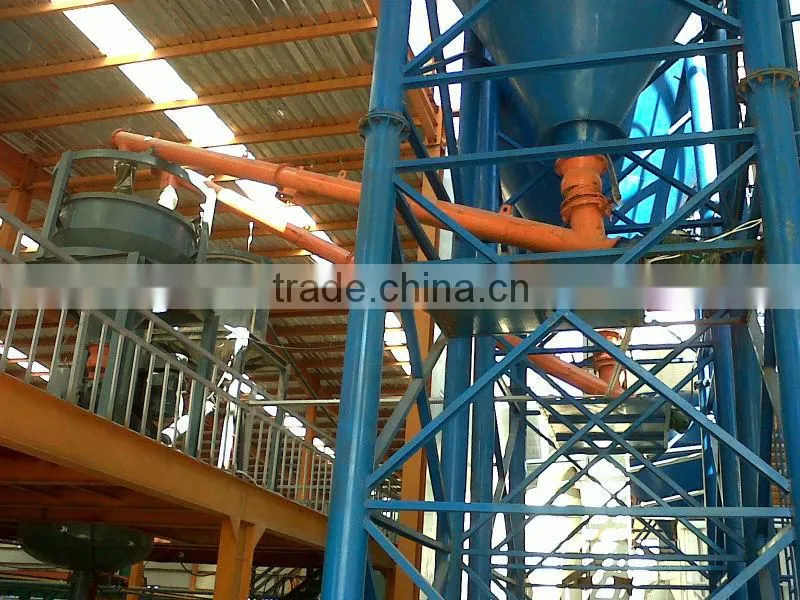

2)After Slurry is made, the slurry is stored in slurry storage tank, where the slurry is

constantly agitated. Care is taken to run the slurry storage tank all the time, so that is

never settles down the particles.

  Hebel block machine AAC block machine (10 lines in Indoesnia)

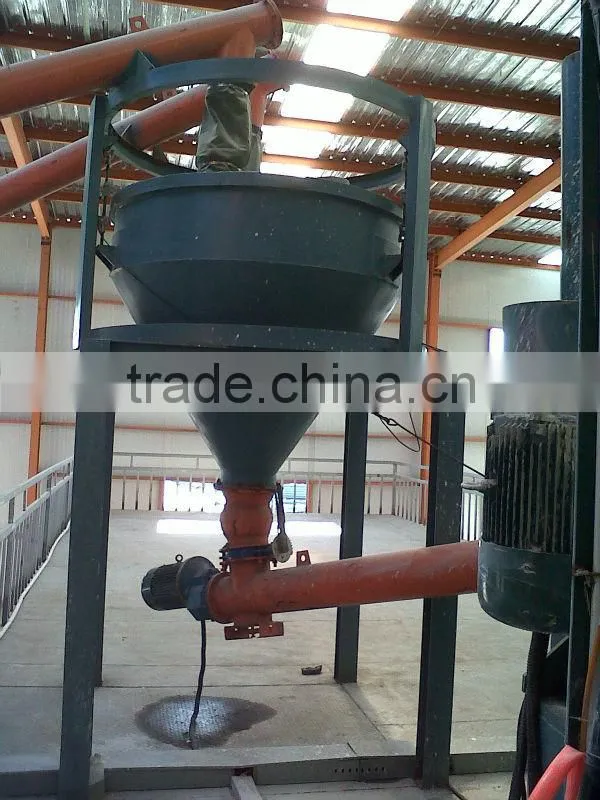

3)Then a weigh batcher weighs the Slurry, lime, OPC, Gypsum and aluminum

power in preset quantities, and mixes thoroughly. The mixture also pours the mix into the

Mould carried n the mould cart. The full pouring of the mixture is just enough to fill

around 50% of the mould.

 Hebel block machine AAC block machine (10 lines in Indoesnia)Hebel block machine AAC block machine (10 lines in Indoesnia)

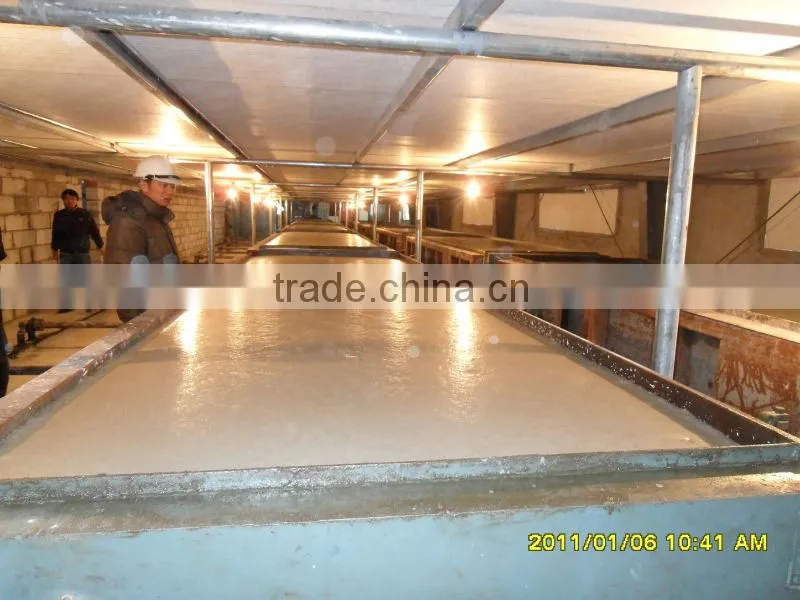

4)Then the mould is kept in a warm chamber for 2 hours, so that the aeration and the

light initial setting takes place.

 Hebel block machine AAC block machine (10 lines in Indoesnia)

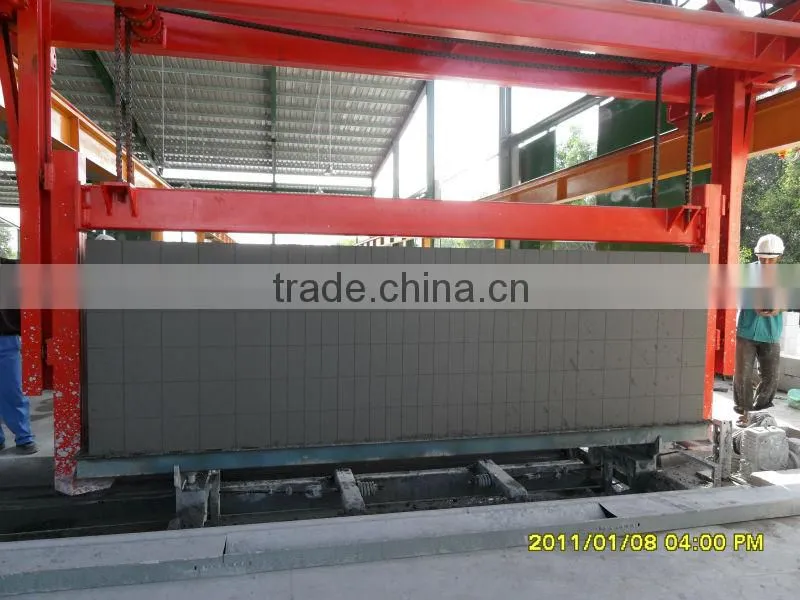

5)Next process is de-molding process of the big block, in which a sophisticated

overhead hoist takes the mould, demoulds the block.

 Hebel block machine AAC block machine (10 lines in Indoesnia)Hebel block machine AAC block machine (10 lines in Indoesnia)

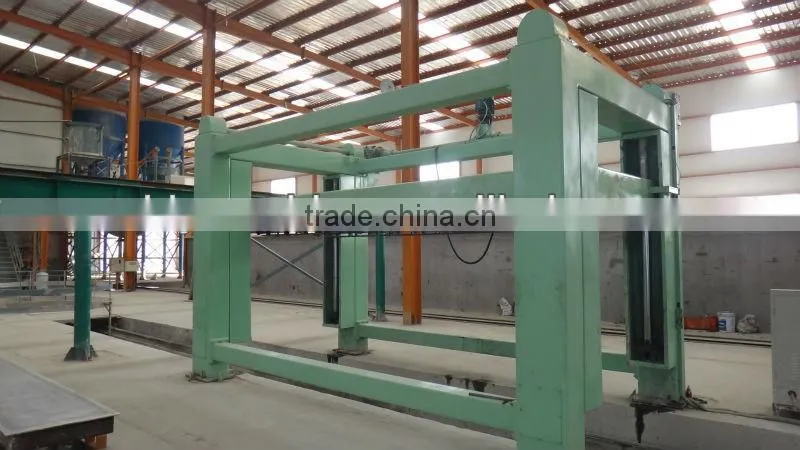

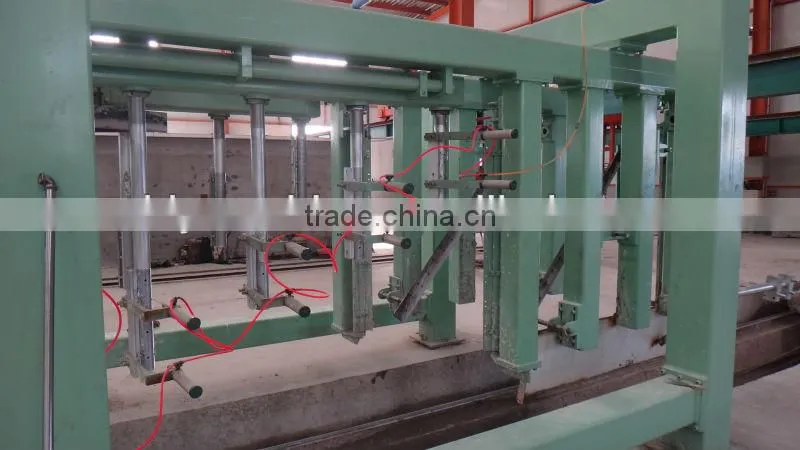

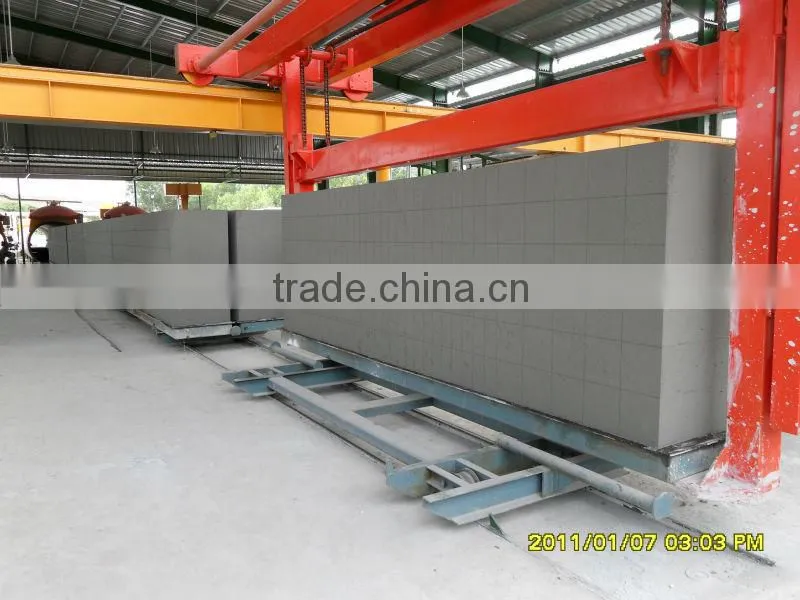

6)Next process is the level wire cutting of the Block, while the block passes on the

cutting trolley through the series of wires. This process follows a vertical wire cutting

where as the block remains stationary, and the cutter cuts the block vertically.

 Hebel block machine AAC block machine (10 lines in Indoesnia)Hebel block machine AAC block machine (10 lines in Indoesnia)

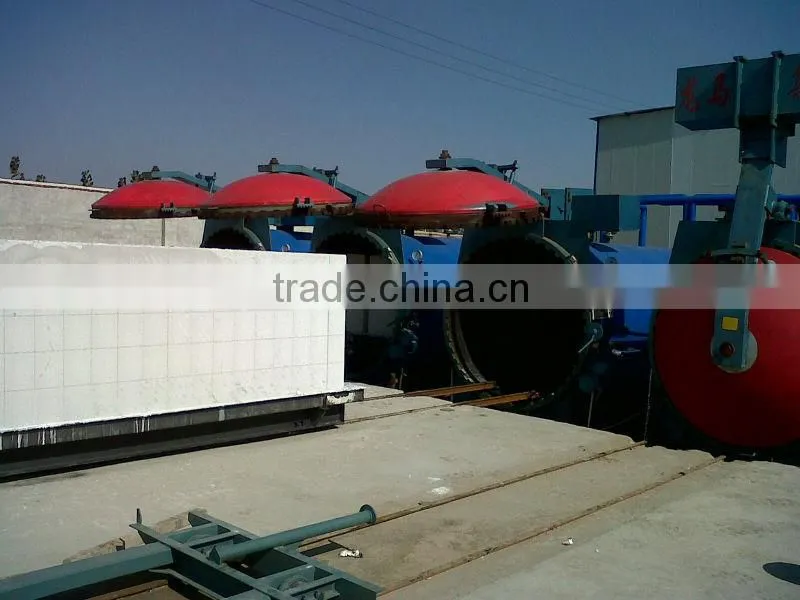

7)The final cut blocks are Steam cured in autoclaves for 8 hours at 12 KG/Sq cm

pressure, and 200D C

  Hebel block machine AAC block machine (10 lines in Indoesnia)

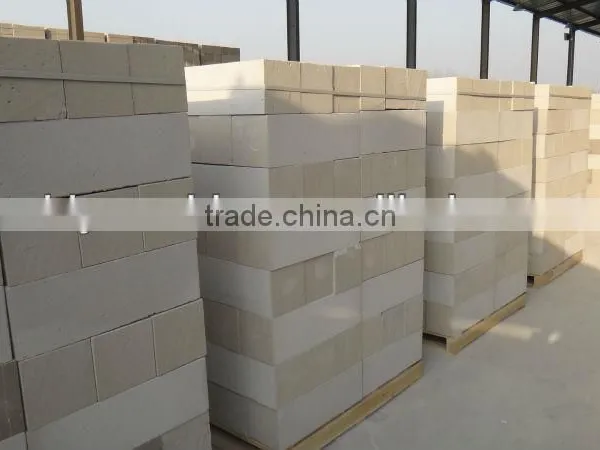

8)The product is ready on the same date to go into the market.

Hebel block machine AAC block machine (10 lines in Indoesnia)
