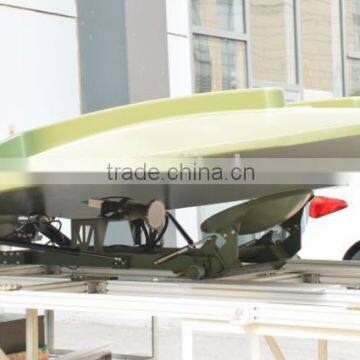

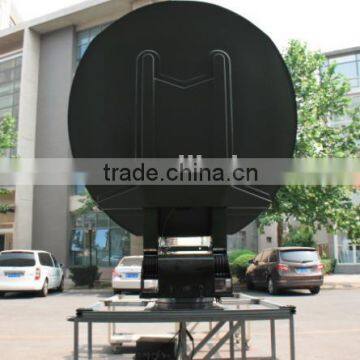

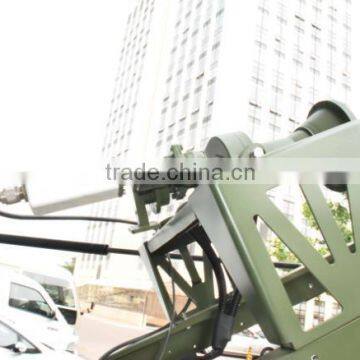

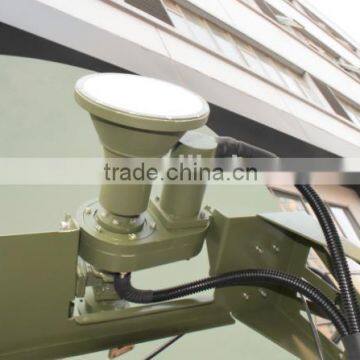

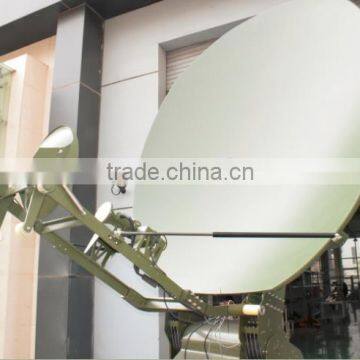

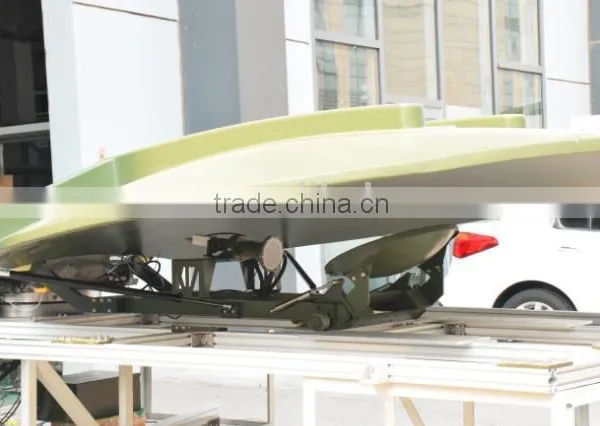

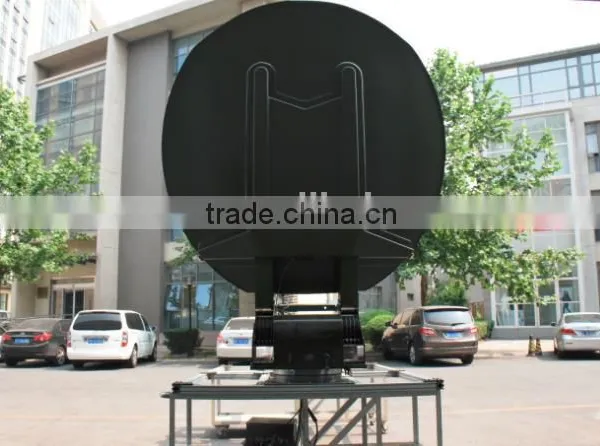

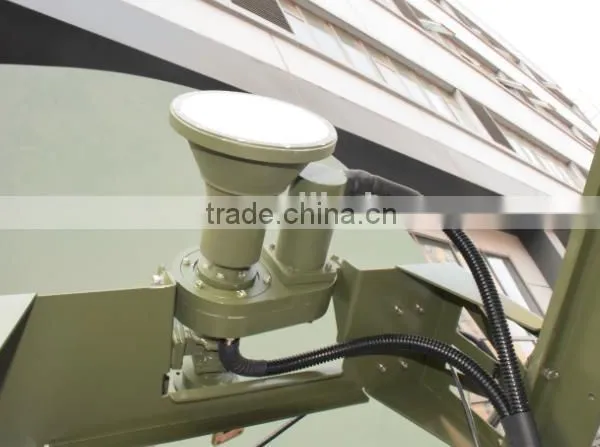

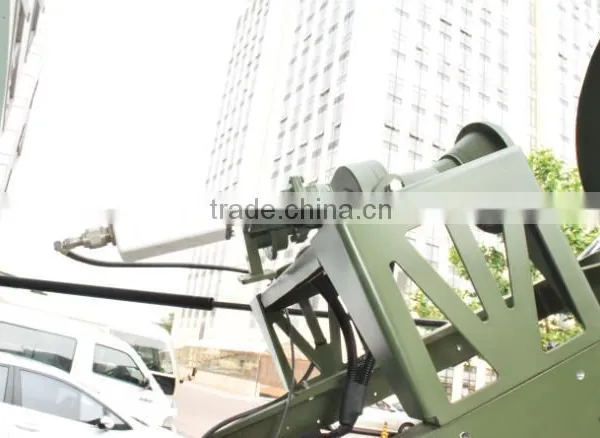

BCS2400CZ VEHICLE MOUNT ANTENNA
BCS2400CZ vehicle mount antenna is a 2.4M vehicle-mount antenna which adopts advanced technology like carbon fiber dual-feed system and rope-drive speed reducer. The antenna is compatible with satellite beacon receiver and DVB satellite signal receiver.
PRODUCTS FEATURES:
- Ø High Gearing Efficiency: Worm-gear speed reducer combined with harmonic-planetary reducer.
- Ø Accurate and fast satellite acquisition: Automatic and manual mode; Acquisition time≤3Mins,Acqusition accuracy≤1dB
- Ø Long-distance control: Antenna control unit can be connected with computer.
- Ø High reliability: Environmental adaptability indicators meet military standard with MTBF≥2000h.
PRODUCTS PARAMETERS:
ITEM |
TECHINCAL |
|
Electrical RF | ||
Reflector |
2.4m Carbon-Fiber |
|
Precision of Reflector |
RMS≤0.1mm |
|
Feed |
Linear polarization, two port, offset |
|
Frequency |
Transmit |
5.85—6.725GHz |
Receive |
3.4—4.2GHz |
|
Gain |
Transmit |
41.76dBi |
Receive |
37.38dBi |
|
Cross-Pol Isolation |
On-Axis |
≥35dB |
1 dB |
≥30dB |
|
Feed Port Isolation - TX to RX |
≥60dB |
|
VSWR |
≤1.25:1 |
|
Feed Insertion Loss |
≤0.35dB |
|
Voice Temperature |
≤45K(10°elevation) |
|
Power Capacity |
1000W |
|
RF Interface |
WR229(receive) WR137(transmit) |
|
3dB BeamWidth |
Transmit |
1.3º |
Receive |
2.2º |
|
Sidelobe |
azimuth plane 2.8-20°,29-25 log θ dBi first sidelobe <-14dB |
|
Mechanical | ||
Stowed Dimensions |
3250*1816.1*590 |
|
Total Antenna Weight |
≤240kg(without BUC) |
|
Rugged Case |
Tri-axis motor-driven |
|
|
Travel
|
Azimuth |
±270º |
Elevation |
0º—90º |
|
Polarization |
±95º |
|
Speed |
Azimuth |
0.1—3º/s Adjustable |
Elevation |
0.1—3º/s Adjustable |
|
Polarization |
1—4º/s Adjustable |
|
Controllers | ||
Power |
AC220V,50Hz |
|
Cabinet |
2U 19inch.9kg |
|
Signal Detection |
Beacon receiver, DVB receiver |
|
Interface |
English |
|
Auxiliary |
GPS,Inclinator,Electronic Compass |
|
Auto-Acquisition Time |
≤3min |
|
Acquisition Accuracy |
≤0.06°(Azimuth, elevation) |
|
≤0.8°(Polarization) | ||
Equipment Power Consumption |
≤600W(without BUC) |
|
Environmental | ||
Operating Temperature |
-40—60℃(antenna) |
|
|
-10—55℃(control unit) |
|
Survival Temperature |
-55-70° |
|
Operating Humidity |
95% |
|
Operating Altitude |
≤5000m |
|
Sand-proof |
GJB367A-2001 Military communication equipment standards |
|
Rain-proof | ||
Salt-mist test | ||
Shock resistance |
|
|
Operationing Wind Speed |
20m/s working in steady wind |
|
30m/s working in blast of wind | ||
60m/s stowed in moving vehicle | ||
MTBF |
≥2000h |
|
