3ft Flyaway Auxiliary Acquisition Dish Satellite Antenna (Manpack)
BCS900FM antenna is an individual-carriable antenna that specially designed for emergency communication, satellite news gathering and rescue communication scenarios.
BCS’s auxiliary acquisition device makes this antenna one of the most convenient and fastest antennas in acquisition.
PRODUCTS FEATURES:
- Ø Light weight

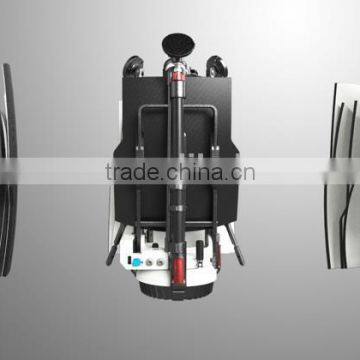

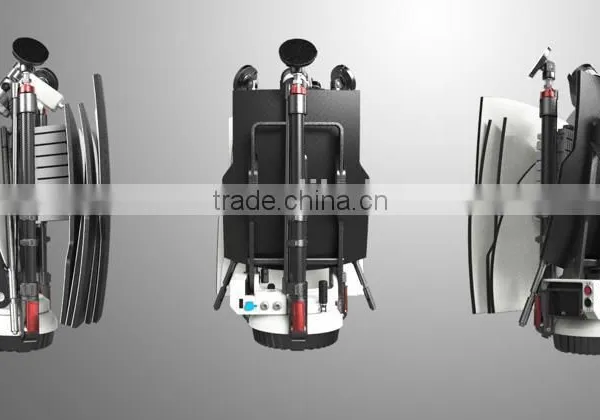

The antenna is made up of carbon-fiber. Small in size, high integration level. The antenna equipment can be stored in a back-pack.

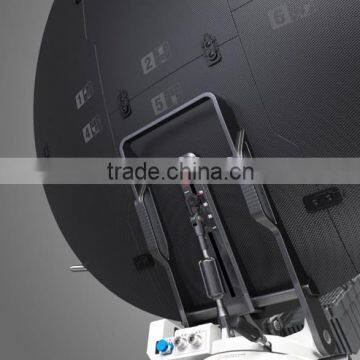

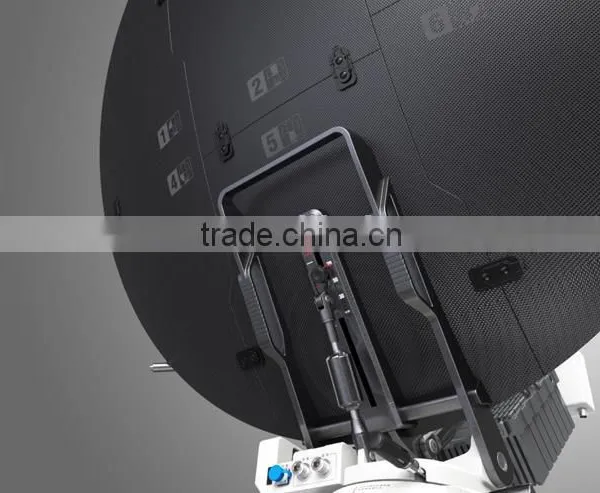

- Ø Easy disassembly and assembly:
Only antenna reflector need piece together, other parts adopt fully integrated design, with light workload.

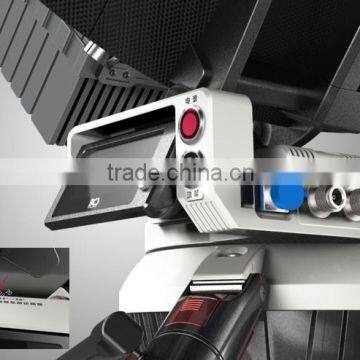

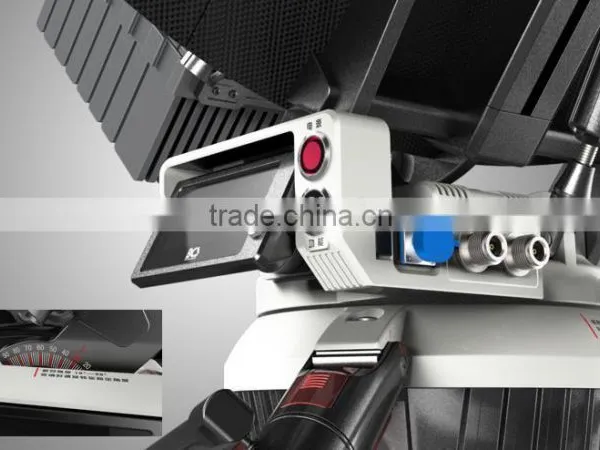

- Ø Perfect interaction between man and machine
The GUI greatly reduce the operating difficulty and makes fast satellite acquisition possible for inexperienced people.
- Ø Simple satellite acquisition
The satellite acquisition is very fast. User can complete the process in less than two minutes.
PRODUCTS PARAMETERS:
Electrical
Aperture |
0.9m |
||
Frequency Band |
Transmit |
14-14.5GHz |
|
Receive |
12.25-12.75GHz |
||
Gain |
Transmit |
≥40.34 dBi(G0 at 14.25GHz) |
|
Receive |
≥39.2 dBi(G0 at 12.5GHz) |
||
Polarization |
Liner polarization |
||
Cross-Polarization |
Receive |
39.2dBi |
|
On-Axis |
≥35dB |
||
VSWR |
≤1.3:1 |
||
3dB BeamWidth |
Transmit |
1.4º |
|
Receive |
1.6º |
||
Power Capacity |
300W |
||

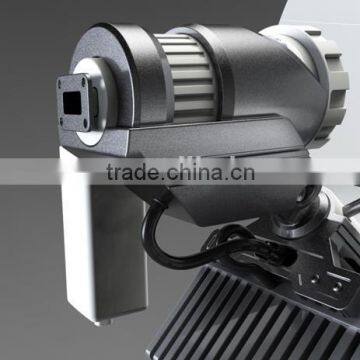

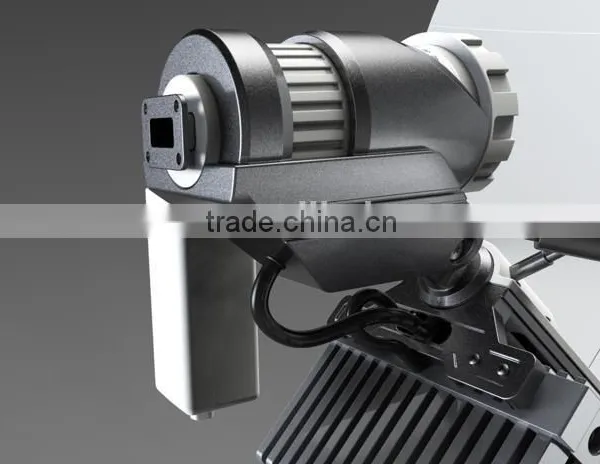

RF Interface |
WR75 |
||
Feed Port Isolation-TX TO RX |
≥85dB |
||
Side lobe |
far sidelobe29-25logθ(100λ,D)≤θ≤15° |
||
Noise Temperature |
≤45K(@10º,20°,30°,12.5GHz) |
||
G/T |
≥19dB/K (@ 30°12.5GHz) |
||
Feed Port Isolation |
Transmit |
≥85dB |
|
Receive |
≥35dB |
||
Insertion Loss |
Transmit |
≤0.3dB |
|
Receive |
≤1dB |
||
Mechanical
|
Antenna Weight
|
Antenna Dead-weight≤12kg Backpack≤2kg Total weight≤14kg(without BUC) |
Elevation |
0°—85° |
Azimuth |
±180° |
Polarization |
±95° |
Size of backpack |
400×400×700mm(L*D*H) |
Environmental
Operating Temperature |
-40—60℃ |
Survival Temperature |
-55—70℃ |
Operating Humidity |
≤95%(30°C) |
Operating Altitude |
≤4500m |
Sand-proof |
Resist dust blowing in deserts |
Rain-proof |
Not less than 60min in the rainfall intensity of 6mm/min |
Salt-mist test |
Resist corrosion in coastal area |
Operating Wind Speed |
8m/s in free working state |
11m/s in fixed work state, reduced accuracy in working |
