1.2M Driveaway Satellite Dish Antenna for Communication

FOB Price

USD $24,000 - $27,000 / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Beijing, China

Brand Name:

BCS

Model Number:

BCS 1200CZ

Product Description

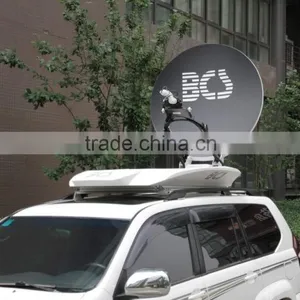

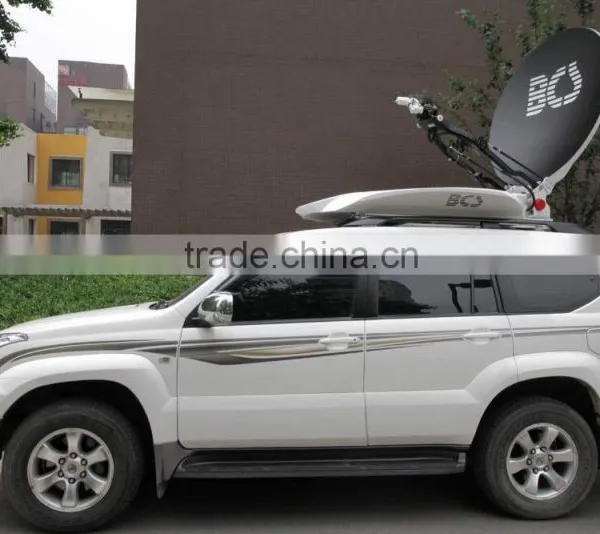

BCS1200CZ DRIVEAWAY ANTENNA

DESIGNED FOR SUV

BCS1200CZ is an auto-acquisition satellite antenna system which can be mounted on the roof of a vehicle. And it is specially designed for SUV. It has features such as easy to operate, quick start, reliable performance and more. The antenna is widely used in national security, emergency communication, telecom operators, satellite news gathering, oil exploration, scientific expedition and other fields. The new generation of patented vehicle mount antenna system has developed prominent features like high reliability, maintenance-free, convenient installation and it can be used in hostile environment.

PRODUCTS FEATURES:

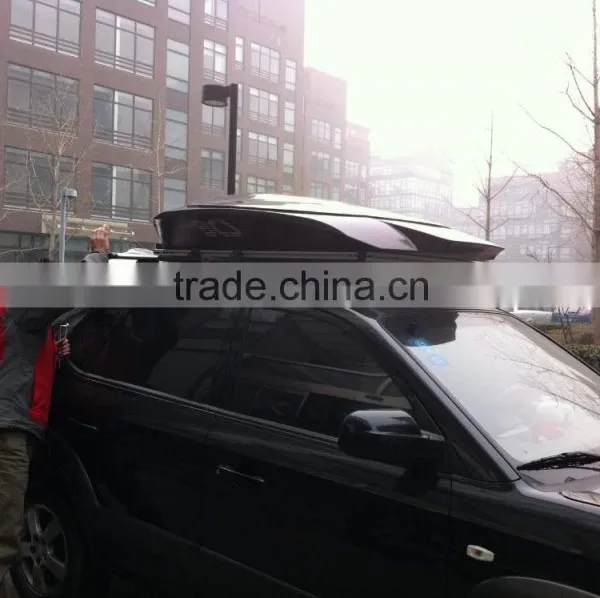

Gross weight≤65KG, stow height≤280mm, fast connect with roof rack. Installed without vehicle modification, ideally suit for SUV.
State of art rope-speed-reducer, which have no backlash and bearing. The transmission efficiency close to 100% with no need of lubrication and lifelong time maintenance-free.
Made of carbon fiber, with high precision surface, light weight, rigidity.
Streamlined design, improved the safety of vehicle driving, perfect fusion with SUV.
One-button auto-acquisition, operate easily.
Reliability: Production process and test are based on military standard, MTBF≥2000hours.

PRODUCTS PARAMETERS:

ITEM		TECHINCAL
Electrical RF
Reflector		1.2m Carbon-Fiber
Precision of Reflector		RMS≤0.1mm
Feed		Linear polarization, two-port,dual reflector,offset
Frequency	Transmit	13.75—14.5GHz
	Receive	10.95—12.75GHz
Gain	Transmit	43dBi
	Receive	41.8dBi
Cross-Pol Isolation	On-Axis	≥35dB
	1 dB	≥30dB
Feed Port Isolation - TX to RX		≥85dB
VSWR		≤1.25:1
Power Capacity		300W
RF Interface		WR75
3dB BeamWidth	Transmit	1.2º
	Receive	1.38º
Sidelobe		azimuth plane 1-20°,29-25 log θ dBi first sidelobe <-20dB
Mechanical
Stowed Dimensions		1862mm×1305mm×280mm
Total Antenna Weight		≤65kg(with radome)
Rugged Case		Tri-axis motor-driven
Travel	Azimuth	±270º
	Elevation	0º—90º
	Polarization	±95º
Speed	Azimuth	0.1—3º/s Adjustable
	Elevation	0.1—3º/s Adjustable
	Polarization	4º/s constant
Bearing Capacity	Azimuth	500Nm
	Elevation	700Nm
Controllers
Input Power		AC220V
Acquisition		satellite beacon and DVB signal
Configuration		Handheld stick within case
Cabinet		1U 19inch.6.5kg
Interface		Chinese
Auxiliary		GPS,Inclinator,Electronic Compass
Auto-Acquisition Time		≤3min
Acquisition Accuracy		≤0.5dB
Equipment Power Consumption		≤300W(without BUC)
Environmental
Operating Temperature		-40—60℃
Survival Temperature		-55—70℃
Operating Humidity		95%
Operating altitude		≤5000m
Sand-proof
Rain-proof		GJB367A-2001
Salt-mist test		Military communication equipment standards
Shock resistance
Operating Wind Speed		20m/s working in steady wind
		30m/s working in blast of wind
		60m/s stowed in moving vehicle
