4ft Vehicle Mount Driveaway Satellite Dish Antenna for Communication
- 0 per Month
- T/T Credit Card
Product Details
Place of Origin: | Beijing, China | Brand Name: | BCS | Model Number: | BCS 1200CZ |
Product Description
BCS1200CZ DRIVEAWAY ANTENNA
DESIGNED FOR SUV

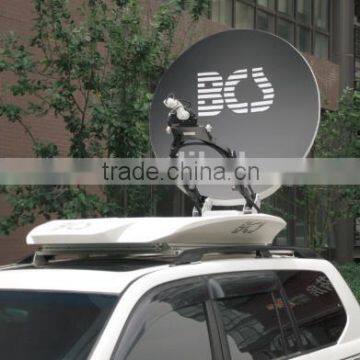

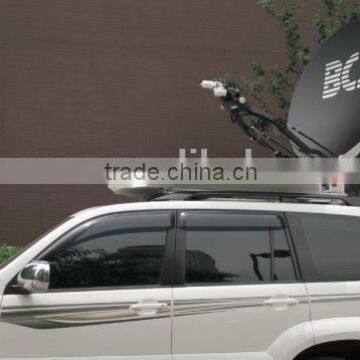

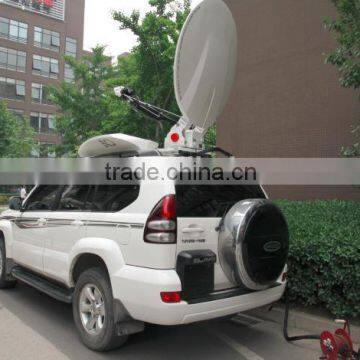

BCS1200CZ is an auto-acquisition satellite antenna system which can be mounted on the roof of a vehicle. And it is specially designed for SUV. It has features such as easy to operate, quick start, reliable performance and more. The antenna is widely used in national security, emergency communication, telecom operators, satellite news gathering, oil exploration, scientific expedition and other fields. The new generation of patented vehicle mount antenna system has developed prominent features like high reliability, maintenance-free, convenient installation and it can be used in hostile environment.
PRODUCTS FEATURES:

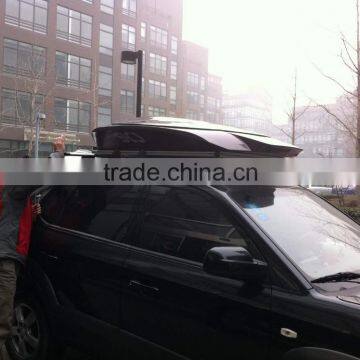

Gross weight≤65KG, stow height≤280mm, fast connect with roof rack. Installed without vehicle modification, ideally suit for SUV.
State of art rope-speed-reducer, which have no backlash and bearing. The transmission efficiency close to 100% with no need of lubrication and lifelong time maintenance-free.
Made of carbon fiber, with high precision surface, light weight, rigidity.
Streamlined design, improved the safety of vehicle driving, perfect fusion with SUV.
One-button auto-acquisition, operate easily.
Reliability. Production process and test are based on military standard, MTBF≥2000hours.
PRODUCTS PARAMETERS:
ITEM | TECHINCAL | |
Electrical RF | ||
Reflector | 1.2m Carbon-Fiber | |
Precision of Reflector | RMS≤0.1mm | |
Feed | Linear polarization, two-port,dual reflector,offset | |
Frequency | Transmit | 13.75—14.5GHz |
Receive | 10.95—12.75GHz | |
Gain | Transmit | 43dBi |
Receive | 41.8dBi | |
Cross-Pol Isolation | On-Axis | ≥35dB |
1 dB | ≥30dB | |
Feed Port Isolation - TX to RX | ≥85dB | |
VSWR | ≤1.25:1 | |
Power Capacity | 300W | |
RF Interface | WR75 | |
3dB BeamWidth | Transmit | 1.2º |
Receive | 1.38º | |
Sidelobe | azimuth plane 1-20°,29-25 log θ dBi first sidelobe <-20dB | |
Mechanical | ||
Stowed Dimensions | 1862mm×1305mm×280mm | |
Total Antenna Weight | ≤65kg(with radome) | |
Rugged Case | Tri-axis motor-driven | |
Travel
| Azimuth | ±270º |
Elevation | 0º—90º | |
Polarization | ±95º | |
Speed | Azimuth | 0.1—3º/s Adjustable |
Elevation | 0.1—3º/s Adjustable | |
Polarization | 4º/s constant | |
Bearing Capacity | Azimuth | 500Nm |
Elevation | 700Nm | |
Controllers | ||
Input Power | AC220V | |
Acquisition | satellite beacon and DVB signal | |
Configuration | Handheld stick within case | |
Cabinet | 1U 19inch.6.5kg | |
Interface | Chinese | |
Auxiliary | GPS,Inclinator,Electronic Compass | |
Auto-Acquisition Time | ≤3min | |
Acquisition Accuracy | ≤0.5dB | |
Equipment Power Consumption | ≤300W(without BUC) | |
Environmental | ||
Operating Temperature | -40—60℃ | |
Survival Temperature | -55—70℃ | |
Operating Humidity | 95% | |
Operating altitude | ≤5000m | |
Sand-proof |
| |
Rain-proof | GJB367A-2001 | |
Salt-mist test | Military communication equipment standards | |
Shock resistance |
| |
Operating Wind Speed | 20m/s working in steady wind | |
30m/s working in blast of wind | ||
60m/s stowed in moving vehicle |
