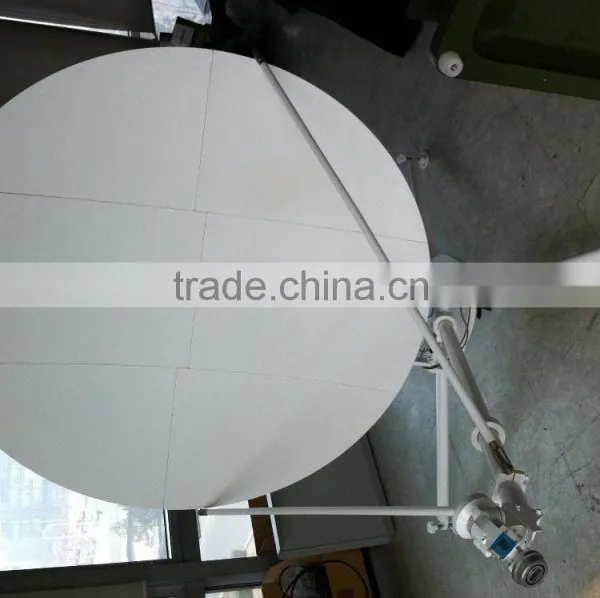

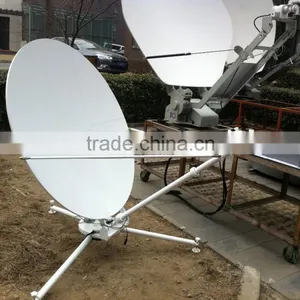

BCS1200FA 4ft Flyaway Dish Satellite Antenna
BCS1200FA is an automatic portable antenna. It has features such as easy to operate, quick start, reliable performance and more. The antenna is widely used in national security, emergency communication, telecom operators, satellite news gathering, oil exploration, scientific expedition and other fields.
PRODUCTS FEATURES:
Structure and Materials: The dual-reflector feed system reduces the length of feed bracket. The BUC and LNB are build-in, which reduces the workload for antenna expanding and stow, this also improves the positioning accuracy. Most of antenna materials are made of carbon fiber, which makes the antenna has lighter weight and stronger rigidity.
Acquisition capacity: With both automatic and manual operating mode, the antenna could deploy in minutes. The antenna is compatible with satellite beacon receiver and DVB satellite signal receiver. The acquisition and stow process can be realized by one-button. Highly reliable transmission system and antenna control system guarantee the satellite tracking precision and 100% capturing accuracy.
Highly integrated power management system: The exterior of antenna is designed with unified power port. The total power consumption of antenna system (without BUC) is less than 65W.
Reliability:
The whole antenna is designed and manufactured by military standard. The MTBF is up to 2000h.
Related Parameters
Electrical | ||
Reflector |
1.2m Carbon-Fiber |
|
Precision of Reflector |
RMS≤0.1mm |
|
Feed |
Linear polarization, two-port,dual reflector,offset |
|
Frequency |
Transmit |
13.75—14.5GHz |
Receive |
12.25—12.75GHz |
|
Gain |
Transmit |
≥43dBi |
Receive |
≥41.8dBi |
|
Cross Polarization Isolation |
On-Axis |
≥35dB |
1 dB |
≥30dB |
|
Feed Port Isolation - TX to RX |
≥85dB |
|
VSWR |
≤1.25:1 |
|
