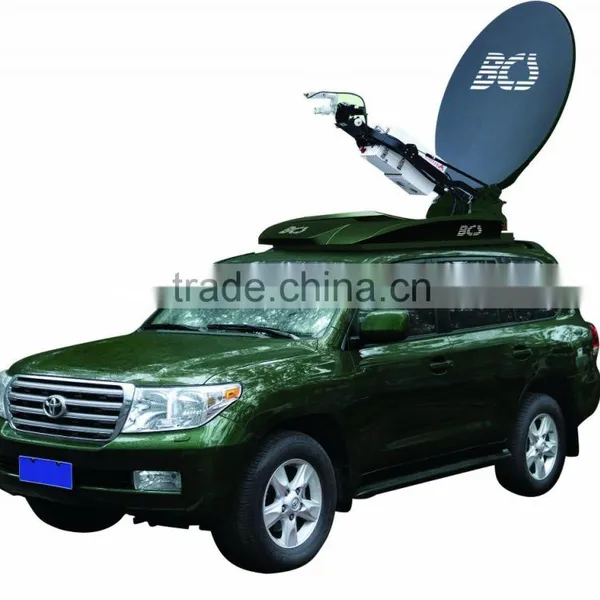

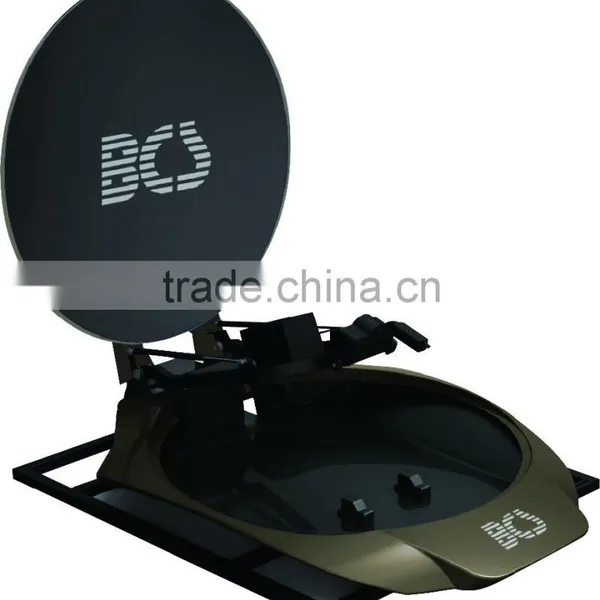

BCS1200CZ DRIVEAWAY ANTENNA (DESIGNED FOR SUV)
BCS1200CZ is an auto-acquisition satellite antenna system which can be mounted on the roof of a vehicle. And it is specially designed for SUV. It has features such as easy to operate, quick start, reliable performance and more. The antenna is widely used in national security, emergency communication, telecom operators, satellite news gathering, oil exploration, scientific expedition and other fields. The new generation of patented vehicle mount antenna system has developed prominent features like high reliability, maintenance-free, convenient installation and it can be used in hostile environment.
PRODUCTS FEATURES:
Gross weight≤65KG, stow height≤280mm, fast connect with roof rack. Installed without vehicle modification, ideally suit for SUV.
State of art rope-speed-reducer, which have no backlash and bearing. The transmission efficiency close to 100% with no need of lubrication and lifelong time maintenance-free.
Made of carbon fiber, with high precision surface, light weight, rigidity.
Streamlined design, improved the safety of vehicle driving, perfect fusion with SUV.
One-button auto-acquisition, operate easily.
Reliability. Production process and test are based on military standard, MTBF≥2000hours.
Electrical RF | ||
Reflector |
1.2m Carbon-Fiber |
|
Precision of Reflector |
RMS≤0.1mm |
|
Feed |
Linear polarization, two-port,dual reflector,offset |
|
Frequency |
Transmit |
13.75—14.5GHz |
Receive |
10.95—12.75GHz |
|
Gain |
Transmit |
43dBi |
Receive |
41.8dBi |
|
Cross-Pol Isolation |
On-Axis |
≥35dB |
1 dB |
≥30dB |
|
Feed Port Isolation - TX to RX |
≥85dB |
|
VSWR |
≤1.25:1 |
|
