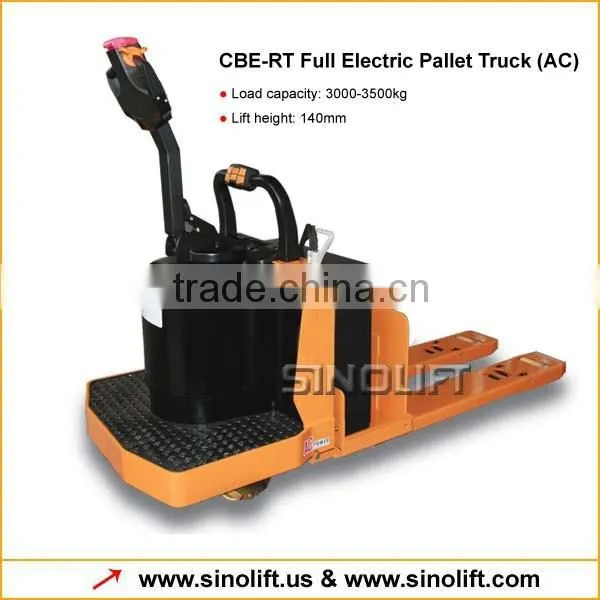

CBE-RT Full Electric Pallet Truck (AC)

Specifications

CBE-RT Full Electric Pallet Truck (AC)
1.Load capacity: 3000-3500kg
2.Lift height: 140mm

CBE-RT Full Electric Pallet Truck (AC) CBE-RT Full Electric Pallet Truck (AC)



1) Features

Our 3000kg/3500kg capacity AC pallet truck has been designed to provide high productivity, reliability and low operating cost. Powered by a large AC drive motor that can propel the unit to 9mph, the CBE30RT/CBE35RTwill allow operators to move more product per hour, and since there are no moving parts in the drive motor... many maintenance expenses are eliminated over the equipment's lifecycle.

With it's heavy duty steel construction and the use of best of breed non-proprietary parts the CBE30RT/CBE35RT delivers exceptional value. If you’re looking for a powered pallet truck that is tough and highly productive select our CBE30RT/CBE35RTfor your facility.

Our CBE30RT/CBE35RT 0 Rider Pallet Trucks include:

• 24volt ZAPI AC transistor control

• Large high torque AC drive motor.

• Heavy duty Comer transmission

• Shaft mounted electromechanical brake

• Ergonomic handle with lift, lower, and infinitely variable speed control

• Ergonomic high-speed bar with lift, lower, horn and high speed controls

• Safety reversing switch, dual horn controls and tiller realease brake

• Battery discharge indicator with hour meter

• Key switch to limit access to approved personnel



2) Specification Data

1.1	Manufacturer		SINOLIFT
1.2	Moder designation		CBE30RT(S)	CBE35RT(S)
1.3	Moder designation		Battrey	Battrey
1.4	Drive unit		Ride	Ride
1.5	Load capacity	Q(kg)	3000	3500
1.6	Load center	C(mm)	600	600
Weights
2.1	Service weight(Incl.battery)	kg	570	690
Wheels, chassis
3.1	Tyre type, operator side/load side		PU/PU	PU/PU
3.5	Wheels, number operator/load side(X=drive)		2001-2-2	2001-2-2
Dimensions
4.4	Lift height	h3(mm)	140	140
4.15	Fork height, lowered	h13(mm)	82.5	82.5
4.19	Overall length	l1(mm)	2325	2325
4.21	Overall width	b1/b2(mm)	915	915
4.22	Fork dimensions	s/e/l(mm)	60/230/1190	60/230/1190
4.25	Fork spread, min/max	b5(mm)	685	710
4.33	Aisle width, 1000x1200 pallet crossways	Ast(mm)	2555	3765
4.35	Outer turning radius	Wa(mm)	2064	2590

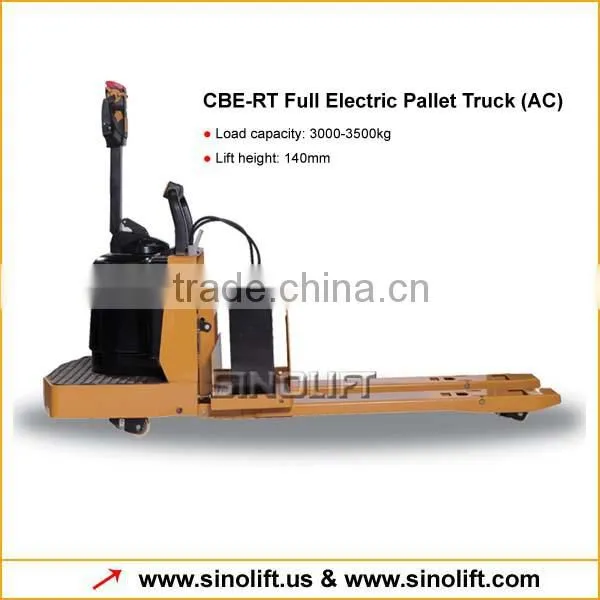

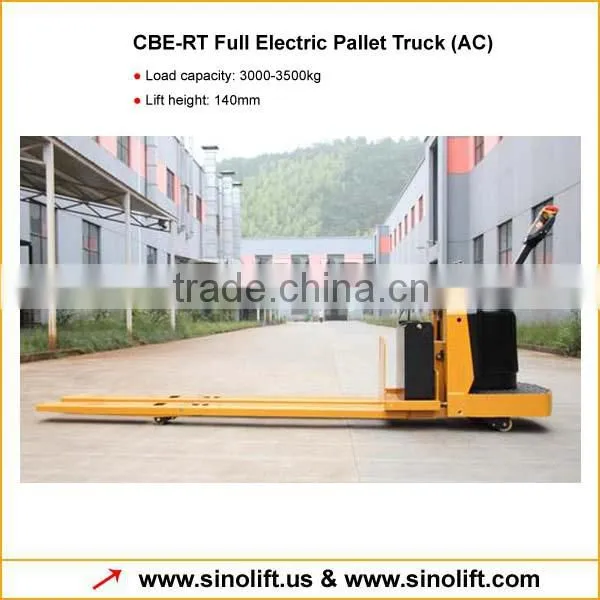

3) Photos





 4) workshop:





5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.



6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.





7) Why choose us?



1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.







2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.







3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.







4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.







5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.







6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
