LPT Series Electric Power Pallet Truck

Specifications

LPT Series Electric Power Pallet Truck
1.Capacity:2000/2200kg
2.Lift height:120mm

LPT Series Electric Power Pallet Truck



1)Features

1.With DANFOSS driving wheels
2.With DANFOSS controller
3.Heavy duty design
4.This 2200kgs poweer truck has been designed with new technology be compact.
5.Equipped with paltform and arm protection make the operator feel more comfortable, and also improve the working efficiency;
6.Comforms to EN1726 and EN1175-1

7. Starting performance(starts steadily)
8. Climb performance (very easy to climb at 8% slope)
9. Save energy (when decelerate, drive on slope or applies the brake, it can recover
energy)
10. Province electricity (105-15% energy saved than DC type)
11. Economic at service cost (free maintenance for the motor and electronic controls)
12. Easy to operate and reliable at work



2)Specification Date



Model of manufacture		LPT20		LPT22 (AC)
Power supply(electric,diesel, petrol,gas,mains electric)		electric		electric
Type of operation(hand,pedestrian,stand on,rider seated, order picker)		pedestrian		Pedestrian
Capacity /rated load	Q Kg	2000		2200
Load center distance	C mm	600		600
Load distance	X mm	963/1033		963/1033
Wheelbase	y mm	1368/1428		1368
Weight(including battery)	Kg	520		512
Axle loadings laden	Kg	1040/1480(982/1538)		1082/1630
drive end/load end
Axle loadings unladen	Kg	405/115(410/110)		399/113
drive end/load end
Tyres(rubber, Vulkollan, pneumatic, polyurethane)		polyurethane		polyurethane
Tyre size drive end	mm	Φ230x75		Φ230x75
Tyre size load end	mm	Φ84x70/Φ84x93	Φ74x70/Φ74x93	Φ84x70/Φ84x93
Castor wheels(dimensions)		Φ100x40		Φ100x40
Wheels, number(x=drive wheel)drive end/load end		1x -2/4 or 1x -2/2		1x -2/4 or 1x -2/2
Track width(front) drive end	b10mm	540		540
Track width(rear) load end	b11mm	380/525		380/525
Lift height	h3 mm	120		120
Tiller height in neutrality position	h14mm	1323		1323
Fork height lowered	h13mm	85	75	85
Overall length	l1 mm	1815/1885		1815/1885
Length to front face of fork	l2 mm	665		665
Overall width	b1 mm	726		726
Fork dimensions	s/e/l mm	60/160/1150(1220)		60/160/1150(1220)
Overall fork width	b5 mm	540/685		540/685
Floor clearance, center of wheelbase	m2 mm	25	20	25
Working aisle with 800x1200 pallet lengthwise	Ast mm	2105/2144		2105/2144
turning radius	Wa mm	1640/1710		1640/1710
Travel Speed laden/unladen	km/h	5.0/5.2		5.8/6.0
Lifting speed laden/unladen	mm/s	27/35		19/35
Lowering speed laden/unladen	mm/s	42/27		30/27

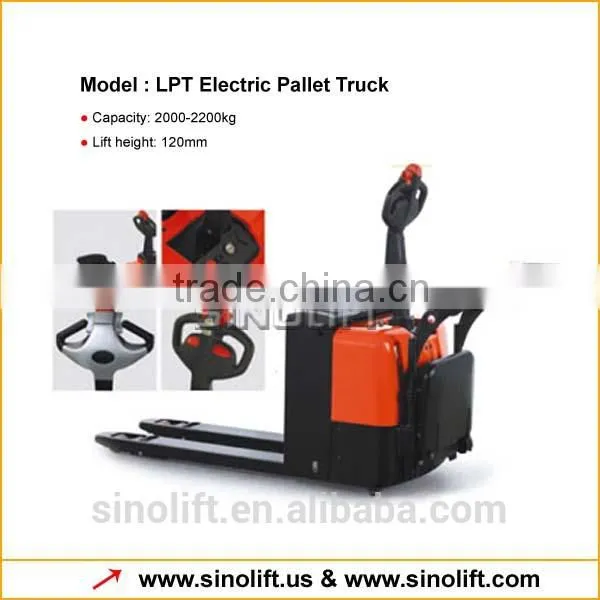

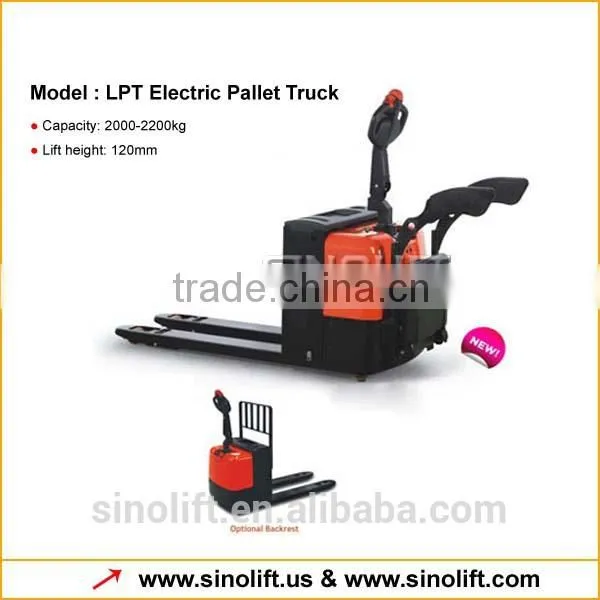

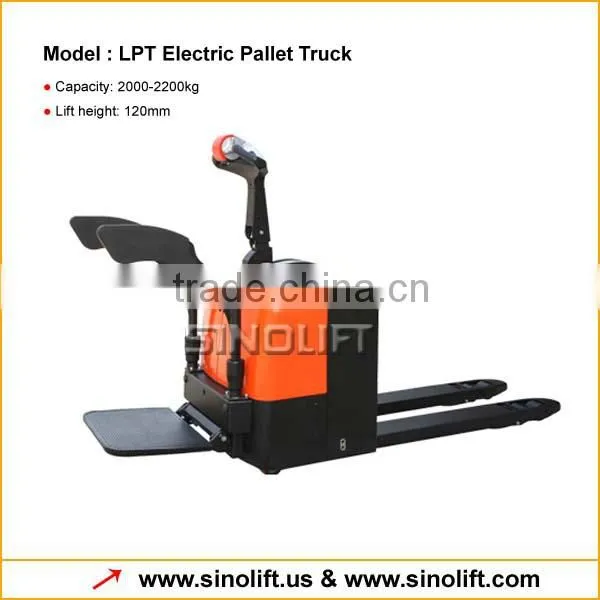

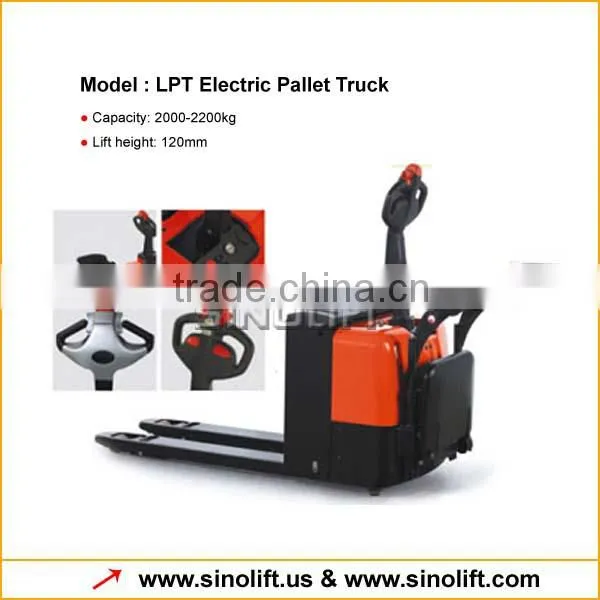

3)Photos



4)Workshop







5)Certificate

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.



6)Terms and Service



Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express



7) Warranty Policy and Service Program



SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.



SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
