CBD-B Series Semi-Electric Pallet Truck

Specifications

CBD-B Series Semi-Electric Pallet Truck
1.Capacity:1000/1500/2000/3000kg
2. Battery:60/24-120/24An/V

CBD-B Series Semi-Electric Pallet Truck



1)Features

1.Electric-powered travel, hydraulic lift

2.Top-quality electric control system, operates easily and responds well

3.Heavy duty design with high-quality, small weight and dimension make it smart

4.With large volume of battery, makes the machine long-time working



2)Specification Date

Model		CBD-1.0B*	CBD-1.5B	CBD-2.0B	CBD-3.0B
Capacity Q (Kg)	Kg	1000	1500	2000	3000
overall width  B	mm	600	600	720	720
Fork overall width  m	mm	520/680
Front wheel	mm	Φ85×75 (tandem) or Φ140×80 (single)
Balance wheel	mm	Φ100×45
Drive wheel	mm	φ260×90
Turing Radius	mm	1350
Battery	An/V	60/24	120/24	120/24	120/24
Traveling Speed (Unloaded/loaded)	km/h	6.7/4.5	6.5/4.2	6.3/4.0	6.0/3.8
Net Weight	Kg	223	273	285	285
Overall Dimension	mm	1530x600x1240	1530x600x1240	1530x720x1240	1530x720x1240

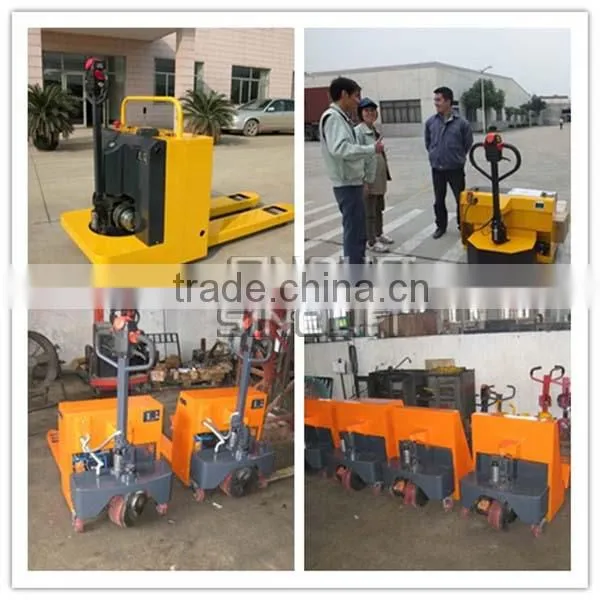

3)Photos



4)Workshop



5)Certificate

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.



6)Terms and Service

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express



7) Warranty Policy and Service Program

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.



SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items





8) Why choose us?



1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.







2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.







3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.







4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.







5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.







6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
