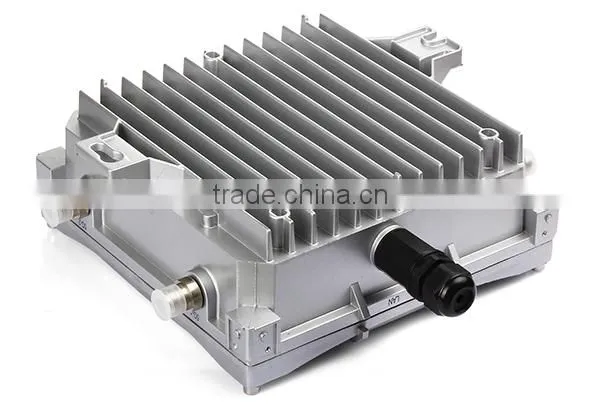

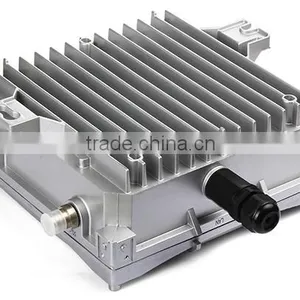

300Mbps outdoor Wireless access point AP-S1
|
||||||
Hardware Specifications |
|
|||||
Features |
Instructions |
|
||||
Chipset |
CPU:AR9341 RF:AR9341 |
|
|
|||
Ethernet |
IEEE802.3u MDI / MDIX 10/100 IEEE802.11a Wireless LAN Port IEEE 802.11n Wireless LAN |
|
|
|||
DDR |
64Mbyte |
|
|
|||
Flash Memory |
8Mbyte |
|
|
|||
PoE Power |
48V, support 802.3af/at |
|
|
|||
CPU Frequency |
535MHz |
|
|
|||
Gain |
Skyworks 2576*2,2*N-K antenna interface |
|
|
|||
Ethernet Interface |
2 *100Base Ethernet Ports |
|
|
|||
Ethernet Physical Rate |
10/100Mbps |
|
|
|||
Reset Button |
The device to restore factory settings |
|
|
|||
Way of system upgrade |
Supporting upgrade through the web page by cable or wireless devices |
|
|
|||
Physical specifications |
210*130*60mm; 2.5kg |
|
|
|||
Power Supply |
48V<12w |
|
|
|||
|
Environment |
Work Tem: -10℃--65℃ Work Hum:10%-90%(RH) Store Tem: -40℃-70℃ Store Hum:5%-95%RH |
|
||||
Data Rate |
11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps HT20:6.5M, 13M, 19.5M, 26M, 39M, 52M, 58.5M, 65M,13M,26M,39M,52M,78M,104M,117M 81M, 104M, 108M, 117M,130M HT40:13.5M,27M,40.5M,54M,81M,108M,121.5M,135M,27M,54M,81M,108M ,162M,216M,243M,270M |
|
|
|||
Transmission Mode |
DSSS |
|
|
|||
Modulation |
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
|
|
|||
Frequency Range |
China : 2412 GHz - 2484 GHz (Chanel1 -- Chanel13) |
|
|
|||
RF Power at25℃(±1.5dB) |
|
|
||||
802.11b |
28.5±2dBm |
|
|
|||
802.11g |
6-24Mbps 36-48Mbps 54Mbps |
28.0±2dBm 27.0±2dBm 26.0±2dBm |
|
|
||
|
||||||
|
||||||
802.11n |
HT20 |
MCS 0-3 |
27 ± 2dBm |
|
|
|
MCS 4 |
26 ± 2dBm |
|
|
|||
MCS 5 |
25.5 ± 2dBm |
|
|
|||
MCS 6 |
25 ± 2dBm |
|
|
|||
MCS 7 |
24.5 ± 2dBm |
|
|
|||
HT40 |
MCS 0-3 |
27 ± 2dBm |
|
|
||
MCS 4 |
26± 2dBm |
|
|
|||
MCS 5 |
25± 2dBm |
|
|
|||
MCS 6 |
25 ± 2dBm |
|
|
|||
MCS 7 |
24.5 ± 2dBm |
|
|
|||
Sensitivity |
IEEE802.11b 1Mbps < -93dBm11Mbps< -87dBm |
IEEE 802.11a 6Mbps<=-89dBm 54Mbps<=-73dBm |
IEEE 802.11n HT 20 MCS 0<=-86dBm MCS 7<=-68dBm HT 40 MCS 0<=-83dBm MCS 7<=-65dBm |
|
||
- Ø 300Mbps:wireless transmission max up to 300Mbps, meeting high speed data,voice and video transmission requirement.
- Ø Ceiling install designed,beautiful, simple, easy to install.
- Ø Smart antenna:Built-in original high-gain smart antenna, wireless superior performance, greatly reduce blind spots.
- Ø High power:external high power PA and LNA design,support wide range wifi coverage.
- Ø POE power supply:support standard 802.3af power supply over Ethernet.
- Ø WDS function:Easy to extend the wireless network.
- Ø Complete wireless encryption technology :Support WEP,WPA-PSK,WPA2-PSK,WPA,WPA2,MAC certification etc variety of encryption/security Settings.
- Ø Advanced function:support AP,AP Client,WDS and Universal Repeater work mode,support multi-SSID(max 3 SSID)
Feature
- Ø Compliant with IEEE802.3AF/AT power supply(PD)standard.
- Ø Compliant IEEE802.11b/g/n
- Ø Support max up to 300Mbps wireless transmission
- Ø Good receiving sensitivity and high transmission power, greatly extend the wireless coverage
- Ø Support ACL(access control list) based MAC
- Ø Support SSID hidden function
- Ø Support multi-SSID function
- Ø Support firmware upgrade via WEB
- Ø 2*10/100Mbps Ethernet interface,support auto MDI/MDIX
- Ø Supports automatic adjustment of wireless transmission rate
- Ø Support 64/128bit WEP encryption,WPA, WPA2, WPA-mixed encryption and security mechanism, ensure the safety of data transmitted in wireless network.
- Ø Support SSID broadcast control,Effectively prevent the SSID broadcasting leaks
- Ø Support configure based Web.
- Ø Support WMM, Voice and video more fluent
- Ø Support software control, work status LED enable/disable function
Specification
Hardware | |
Chip |
Atheros 9341 |
memory |
64MB DDR |
Flash |
8MB 20MHz |
Main frequency |
535MHz |
Dual PA design |
Skyworks 2576 |
Protocol&standard |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;IEEE802.3af/802.3at IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Interface |
2*10/100Mbps RJ45 ports,support Auto MDI/MDIX; |
Reset |
Back to factory default: (press 10s) |
LED(green) |
Power / LAN / WLAN |
Antenna |
Built-in 4dBi antenna |
Power supply |
DC 12V/1.5A &PoE, support IEEE802.3af/802.3at standard |
Wireless | |
Basic function |
Wireless ON/OFF;SSID broadcast ON/OFF;support 11b only,11g only, 11n only, 11b/g mixed only, 11b/g/n mixed only mode work channel:1-14 bandwidth:20MHz,40MHz;multi-SSID configure/hidden/isolation |
Frequency |
2.412----2.4835GHz |
Transmit rate |
IEEE 802.11b: 1, 2, 5.5,11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 150,300Mbps (typical) |
Transmit power: |
27dBm (Max) (dual PA) |
|
Receiving sensitivity (typical) |
IEEE802.11n: MCS8 at -90dBm MCS15 at -70dBm IEEE802.11g : 6Mbpsat -92dBm 54Mbpsat -72dBm EEE802.11b : 1Mbpsat -93dBm 11Mbpsat -89dBm |
Work mode |
AP AP Client WDS Universal Repeater + AP (scan) |
Wireless security |
MAC access control(ACL) 64/128 bit WEP encryption ;WPA-PSK/WPA2-PSK,WPA/WPA2 Mixed WPS(PBC,PIN) 802.1x |
Power optional |
FULL power and EU STANDARD optional |
Software | |
System tools |
Traffic statistics ;Client list software control the AP; work instructions LED opening and closing; time zone set up; local WEB management control; configuration file import and export ;WEB software upgrades |
Others | |
Package |
300Mbps wireless high power ceiling AP |
Size |
Φ150 * 150 * 18mm |
Environment |
Work Temp:0℃ to 45℃(32°F to 113°F) Store temp::-20℃to 70℃(-4°F to 158°F) Work Hum.:10% to 90%RH No condensation Store Hum:5% to 90%RH No condensation |
