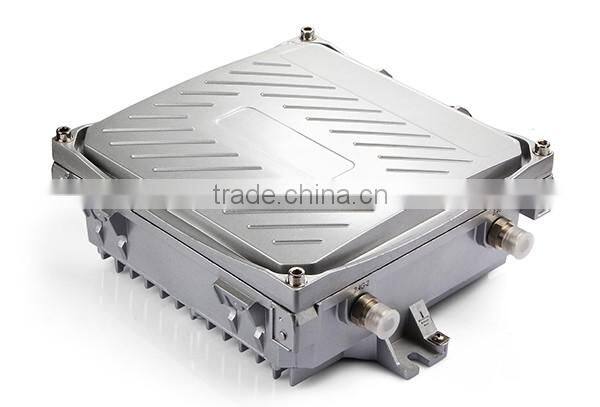

AR9344 Dual Band Outdoor AP Base Station

HARDWARE SPECIFICATION

Item

Specification

Chipset:

CPU:AR9344;RF:AR9344(2.4G)+AR9382(5.8G)

Standards:

IEEE802.3ab MDI / MDIX 10/100/1000Mbps

IEEE802.11a/n

IEEE 802.11b/g/n

DDR:

128Mbyte

Flash:

16Mbyte

Powe Supply:

IEEE802.3AT standard POE or DC 12V

CPU Frequency:

533MHz

Wired Port:

1 LAN port

Data Rate:

10/100/1000Mbps

Reset:

Restore to factory default settings

5.8G Specification

Wireless Data Rate:

11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps

HT20:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4M

HT40:15M,30M,45M,60M,90M,120M,135M,150M,30M,60M,90M,120M,180M,240M,270M,300M

Transmission Method:

DSSS

Modulation Mode:

OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK

RF Frequency:

China : 5.725 GHz ~ 5.850 GHz (Channel149 ~ 165)

RF Power:

802.11a

6-24Mbps

23 ±2dBm

36-48Mbps

22 ±2dBm

54Mbps

20± 1.5dBm

802.11n

HT20

MCS 0-3

23 ± 2dBm

MCS 4

22 ± 2dBm

MCS 5

21 ± 1.5dBm

MCS 6

20 ± 2dBm

MCS 7

19 ± 2dBm

HT40

MCS 0-3

23 ± 2dBm

MCS 4

22± 2dBm

MCS 5

21± 1.5dBm

MCS 6

20.0 ± 2dBm

MCS 7

19.0 ± 2dBm

Sensitivity:

IEEE 802.11a

6Mbps<=-89dBm

54Mbps<=-70dBm

IEEE 802.11n

HT 20

MCS 0<=-83dBm

MCS 7<=-65dBm

HT 40

MCS 0<=-80dBm

MCS 7<=-62dBm

2.4G Specification

Data Rate:

11b: 11M, 5.5M, 2M, 1Mbps

11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps

HT20:6.5M, 13M, 19.5M, 26M, 39M, 52M, 58.5M, 65M,13M,26M,39M,52M,78M,104M,117M 81M, 104M, 108M, 117M,130M

HT40:13.5M,27M,40.5M,54M,81M,108M,121.5M,135M,27M,54M,81M,108M,162M,216M,243M,270M,300M

RF power(± 2dbm)

11b       1-11Mbps:23.0dBm

11g       6-24Mbps:23dBm 54Mbps:20dBm

11n HT20  MCS0-4:23dbm  MCS7:20dbm

11n HT40  MCS8-12:23dbm MCS15:20dbm

Sensitivity:

IEEE 802.11b                 1Mbps<=-90dBm

11Mbps<=-84dBm

IEEE 802.11g                 6Mbps<=-89dBm

                             54Mbps<=-70dBm

IEEE 802.11n      HT 20      MCS 0<=-83dBm

MCS 7<=-65dBm

HT 40      MCS 0<=-80dBm

MCS 7<=-62dBm

Environmental Requirement

Item

Requirement

Working Temperature:

-10~+50°C

Working Humidity:

10%~95%(non-condensing) RH

Storage Temperature:

-40~+85°C

Storage Humidity:

10%~95%(non-condensing) RH

Envirommental Standards:

RoHs compliance
