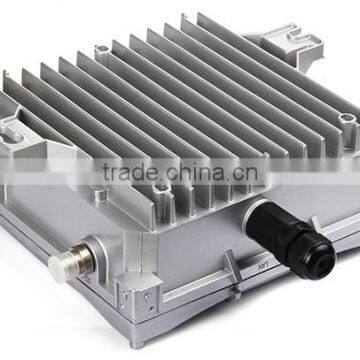

802.11n 300Mbps outdoor wireless access point work at 2.4GHz high power output wifi coverage
300Mbps outdoor Wireless access point AP-S1
| ||||||
Hardware Specifications |
| |||||
Features | Instructions |
| ||||
Chipset | CPU:AR9341 RF:AR9341 |
|
| |||
Ethernet | IEEE802.3u MDI / MDIX 10/100 IEEE802.11a Wireless LAN Port IEEE 802.11n Wireless LAN |
|
| |||
DDR | 64Mbyte |
|
| |||
Flash Memory | 8Mbyte |
|
| |||
PoE Power | 48V, support 802.3af/at |
|
| |||
CPU Frequency | 535MHz |
|
| |||
Gain | Skyworks 2576*2,2*N-K antenna interface |
|
| |||
Ethernet Interface | 2 *100Base Ethernet Ports |
|
| |||
Ethernet Physical Rate | 10/100Mbps |
|
| |||
Reset Button | The device to restore factory settings |
|
| |||
Way of system upgrade | Supporting upgrade through the web page by cable or wireless devices |
|
| |||
Physical specifications | 210*130*60mm; 2.5kg |
|
| |||
Power Supply | 48V<12w |
|
| |||
Environment | Work Tem: -10℃--65℃ Work Hum:10%-90%(RH) Store Tem: -40℃-70℃ Store Hum:5%-95%RH |
| ||||
Data Rate | 11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps HT20:6.5M, 13M, 19.5M, 26M, 39M, 52M, 58.5M, 65M,13M,26M,39M,52M,78M,104M,117M 81M, 104M, 108M, 117M,130M HT40:13.5M,27M,40.5M,54M,81M,108M,121.5M,135M,27M,54M,81M,108M ,162M,216M,243M,270M |
|
| |||
Transmission Mode | DSSS |
|
| |||
Modulation | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
|
| |||
Frequency Range | China : 2412 GHz - 2484 GHz (Chanel1 -- Chanel13) |
|
| |||
RF Power at25℃(±1.5dB) |
|
| ||||
802.11b | 28.5±2dBm |
|
| |||
802.11g | 6-24Mbps 36-48Mbps 54Mbps | 28.0±2dBm 27.0±2dBm 26.0±2dBm |
|
| ||
| ||||||
| ||||||
802.11n | HT20 | MCS 0-3 | 27 ± 2dBm |
|
| |
MCS 4 | 26 ± 2dBm |
|
| |||
MCS 5 | 25.5 ± 2dBm |
|
| |||
MCS 6 | 25 ± 2dBm |
|
| |||
MCS 7 | 24.5 ± 2dBm |
|
| |||
HT40 | MCS 0-3 | 27 ± 2dBm |
|
| ||
MCS 4 | 26± 2dBm |
|
| |||
MCS 5 | 25± 2dBm |
|
| |||
MCS 6 | 25 ± 2dBm |
|
| |||
MCS 7 | 24.5 ± 2dBm |
|
| |||
Sensitivity | IEEE802.11b 1Mbps < -93dBm11Mbps< -87dBm | IEEE 802.11a 6Mbps<=-89dBm 54Mbps<=-73dBm | IEEE 802.11n HT 20 MCS 0<=-86dBm MCS 7<=-68dBm HT 40 MCS 0<=-83dBm MCS 7<=-65dBm |
| ||
- Ø 300Mbps:wireless transmission max up to 300Mbps, meeting high speed data,voice and video transmission requirement.
- Ø Ceiling install designed,beautiful, simple, easy to install.
- Ø Smart antenna:Built-in original high-gain smart antenna, wireless superior performance, greatly reduce blind spots.
- Ø High power:external high power PA and LNA design,support wide range wifi coverage.
- Ø POE power supply:support standard 802.3af power supply over Ethernet.
- Ø WDS function:Easy to extend the wireless network.
- Ø Complete wireless encryption technology :Support WEP,WPA-PSK,WPA2-PSK,WPA,WPA2,MAC certification etc variety of encryption/security Settings.
- Ø Advanced function:support AP,AP Client,WDS and Universal Repeater work mode,support multi-SSID(max 3 SSID)
Feature
- Ø Compliant with IEEE802.3AF/AT power supply(PD)standard.
- Ø Compliant IEEE802.11b/g/n
- Ø Support max up to 300Mbps wireless transmission
- Ø Good receiving sensitivity and high transmission power, greatly extend the wireless coverage
- Ø Support ACL(access control list) based MAC
- Ø Support SSID hidden function
- Ø Support multi-SSID function
- Ø Support firmware upgrade via WEB
- Ø 2*10/100Mbps Ethernet interface,support auto MDI/MDIX
- Ø Supports automatic adjustment of wireless transmission rate
- Ø Support 64/128bit WEP encryption,WPA, WPA2, WPA-mixed encryption and security mechanism, ensure the safety of data transmitted in wireless network.
- Ø Support SSID broadcast control,Effectively prevent the SSID broadcasting leaks
- Ø Support configure based Web.
- Ø Support WMM, Voice and video more fluent
- Ø Support software control, work status LED enable/disable function
Specification
Hardware | |
Chip | Atheros 9341 |
memory | 64MB DDR |
Flash | 8MB 20MHz |
Main frequency | 535MHz |
Dual PA design | Skyworks 2576 |
Protocol&standard | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;IEEE802.3af/802.3at IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Interface | 2*10/100Mbps RJ45 ports,support Auto MDI/MDIX; |
Reset | Back to factory default: (press 10s) |
LED(green) | Power / LAN / WLAN |
Antenna | Built-in 4dBi antenna |
Power supply | DC 12V/1.5A &PoE, support IEEE802.3af/802.3at standard |
Wireless | |
Basic function | Wireless ON/OFF;SSID broadcast ON/OFF;support 11b only,11g only, 11n only, 11b/g mixed only, 11b/g/n mixed only mode work channel:1-14 bandwidth:20MHz,40MHz;multi-SSID configure/hidden/isolation |
Frequency | 2.412----2.4835GHz |
Transmit rate | IEEE 802.11b: 1, 2, 5.5,11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 150,300Mbps (typical) |
Transmit power: | 27dBm (Max) (dual PA) |
Receiving sensitivity (typical) | IEEE802.11n: MCS8 at -90dBm MCS15 at -70dBm IEEE802.11g : 6Mbpsat -92dBm 54Mbpsat -72dBm EEE802.11b : 1Mbpsat -93dBm 11Mbpsat -89dBm |
Work mode | AP AP Client WDS Universal Repeater + AP (scan) |
Wireless security | MAC access control(ACL) 64/128 bit WEP encryption ;WPA-PSK/WPA2-PSK,WPA/WPA2 Mixed WPS(PBC,PIN) 802.1x |
Power optional | FULL power and EU STANDARD optional |
Software | |
System tools | Traffic statistics ;Client list software control the AP; work instructions LED opening and closing; time zone set up; local WEB management control; configuration file import and export ;WEB software upgrades |
Others | |
Package | 300Mbps wireless high power ceiling AP |
Size | Φ150 * 150 * 18mm |
Environment | Work Temp:0℃ to 45℃(32°F to 113°F) Store temp::-20℃to 70℃(-4°F to 158°F) Work Hum.:10% to 90%RH No condensation Store Hum:5% to 90%RH No condensation |
