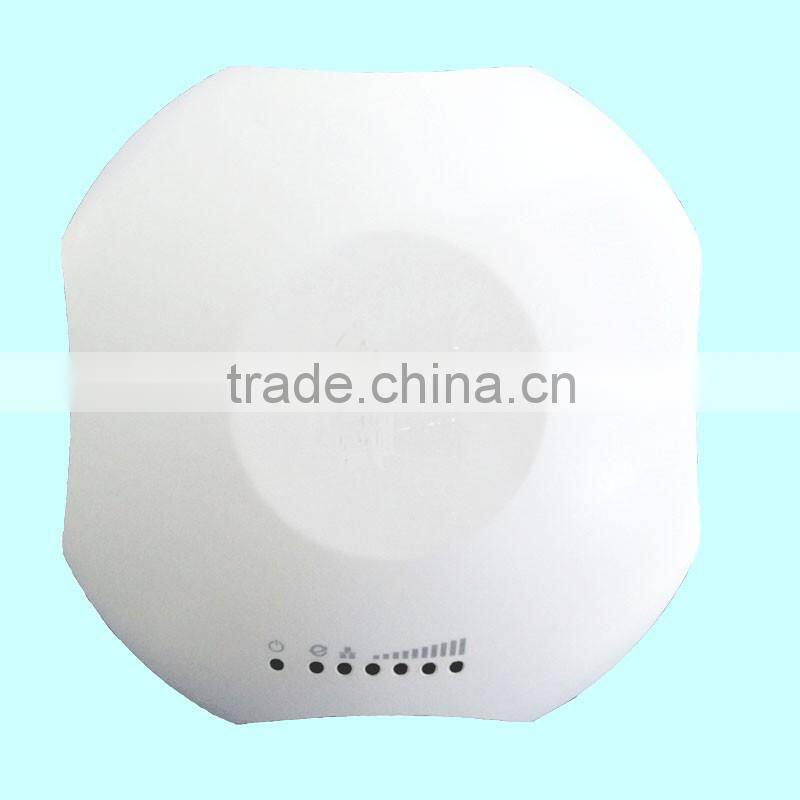

Ceiling wireless AP dualband support OEM&ODM complex brand good quality
High grade Dualband wireless ap ceiling model
Features
IEEE 802.11ac compliantand backward compatiblewith 802.11abgn
Atheros 533MHz Networking Processor AR9344
2.4G/5G concurrentradios,2.4G 26dBm and 5G 30dBmaggregate power
Data rates of up to 867Mbps in802.11ac 80 MHz channels
Enhanced sensitivity performance

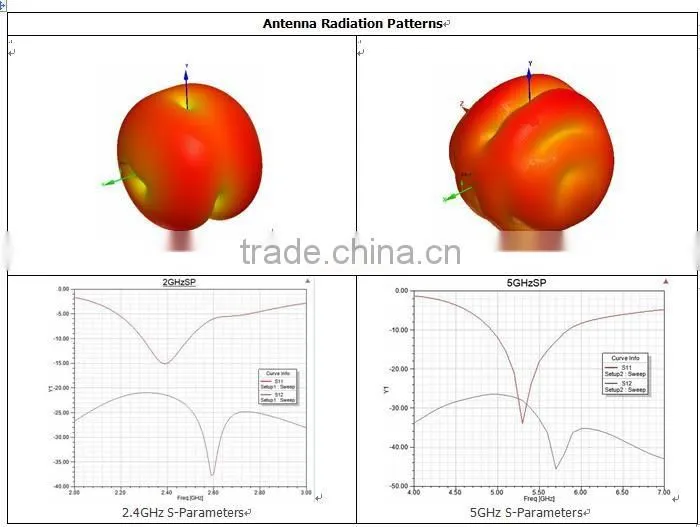

Built-in 4Bi 2.4GHz & 5dBi 5GHz pyramidlomni smart antenna
Antenna Alignment SiteSurvey - LEDs
Integrated Power-over-Ethernet
Support Wall-mounted orCeiling-mounted
Applications
Dual band,Dual concurrent AP
802.11ac+802.11bgn AP / 802.11an+802.11bgn AP
Point to Point / Point to MultiPoint
CPE
Technical Specifications
System Information | ||||||
Processor |
Qualcomm-Atheros AR9344 |
|||||
Memory Size |
128MB DDR2 |
|||||
NOR Flash |
16MB |
|||||
Antenna |
Integrated 4Bi 2.4GHz & 5dBi 5GHz pyramidal omni smart antenna |
|||||
Ethernet |
2 GE ports with Auto-MDI/X |
|||||
Power Solution |
DC Jack Input:24-56V, Passive PoE: 36-56V, IEEE 802.3af/at PoE |
|||||
Power Consumption |
18W |
|||||
RoHS Compliant |
Yes |
|||||
|
Humidity |
Operating: 5% to 95% (non-condensing) Storage: Max.90% (non-condensing) |
|||||
|
Temperature Range |
Operating:-20ºC to 70ºC Storage: -40ºC to 90ºC |
|||||
Dimensions (H x W x D) |
161.5 x 161.5 x 80 (mm) |
|||||
Transmit Power & Receiver Sensitivity | ||||||
|
2.4G On-board Radio |
Transmit Power |
Data Rate |
Aggregate Power |
|||
6M |
26dBm |
|||||
54M |
22dBm |
|||||
HT20 MCS0 |
26dBm |
|||||
HT20 MCS7 |
20dBm |
|||||
HT40 MCS0 |
26dBm |
|||||
HT40 MCS7 |
20dBm |
|||||
|
Receiver Sensitivity |
Data Rate |
Sensitivity |
||||
6M |
-90dBm |
|||||
54M |
-75dBm |
|||||
HT20 MCS0 |
-90dBm |
|||||
HT20 MCS7 |
-72dBm |
|||||
HT40 MCS0 |
-88dBm |
|||||
HT40 MCS7 |
-70dBm |
|||||
|
Max of concurrent associations |
Encryption |
Client Latency |
TCP [each client upload and download randomly from 384Kbps to 768Kbps] |
UDP [each client upload and download 2Mbps] |
||
|
WPA2-PSK |
<100ms |
Single radio |
Dual radio |
Single radio |
Dual radio |
|
|
40 clients |
70clients (35 per radio) |
20 clients |
30clients (15 per radio) |
|||
Firmware Features
1.Multiple SSID
Supports up to 16 virtualaccess points (VAP) per radio, with uniqueBSSID. Each VAP can configure their own security
2.Long Range Support
Suitable for long range wireless deployment with Proprietary Long Distance Algorithm for ACK and CTS timeout adjustment support. Provides recommendedvalues for theparameters as well as allow for manual fine-tuning foroptimal performance. 3.Selectable Spectrum Bandwidth Support
Options to selectoperation over 20MHz and 40MHz spectrum bandwidth
Firmware Information | |
|
Operating Modes |
|
|
WAN Type |
|
|
Device Management |
|
Data Capture & Notification |
|
|
Advanced Features |
|
Other Prominent Features |
Description |
Long Range Parameter Settings |
Suitable for Long Range wireless deployment with high receiver sensitivity |
CPE Point-to-Point (PtP) |
Ideal as CPE device connecting PtP with a central AP |
IEEE 802.11h (DFS & TPC) |
Enables worldwide operation through support for standards-based Dynamic Frequency Selection (DFS) and Transmission Power Control (TPC) |
SNMP |
For multiple SSID, firmware upgrades. Easy for customers to integrate with SNMP-based controller |
Signal Strength LEDs Indicators |
4 Step Progressive Bars. Each bar represents a progressive increase in Signal strength, with 4 bars representing maximum signal strength (100%) |
VLAN Management |
Can manage the AP through VLAN ID |
VLAN Ethernet Trunk |
Map VLAN IDs to multiple SSID |
Chillispot (Hotspot) |
Can use with/without Radius Server |
OpenWRT-derived |
Easy to add in features from OpenWRT |
Customization (with SDK) |
Customers can add in packages of OpenWRT, and also modify webpages on their own, with SDK upon approval |
