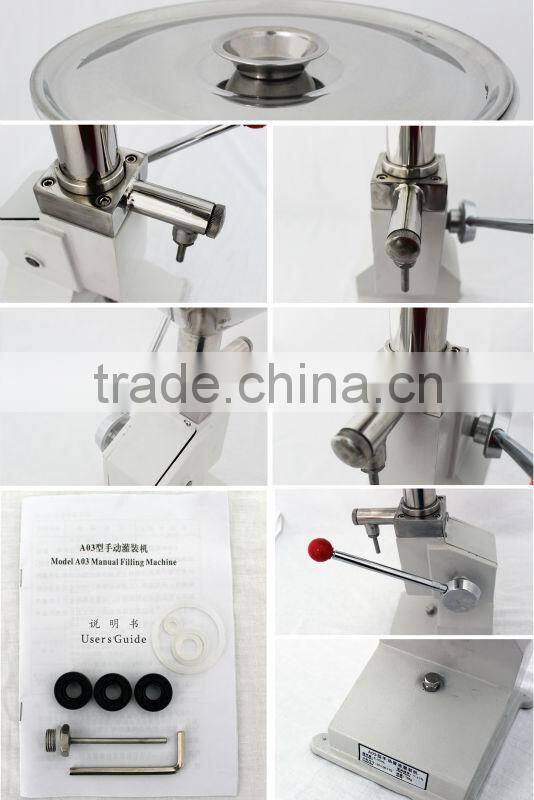

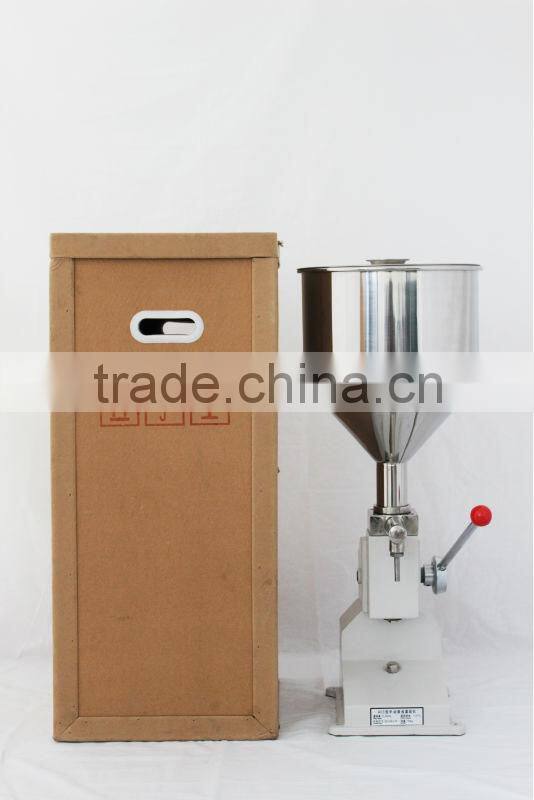

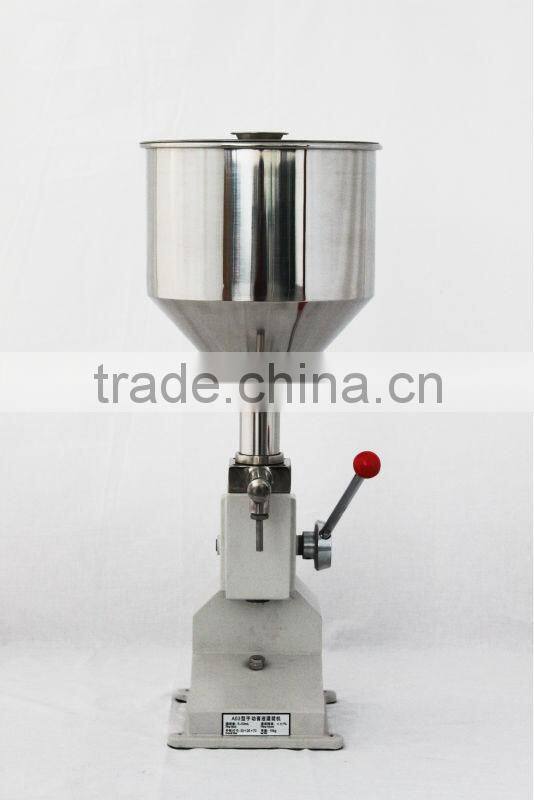

Manual Paste Filling Machine

Specifications

Manual paste filling machine

Description

A03 type manual paste and liquid filler adopt piston structure, it can fill paste and liquid quantified from 5-50ml. The filler can fill liquid medicine , fluid food, lubricating oil, shampoo, cosmetic and so on.

It used widely in the field of pharmaceutical, cosmetic, food, pesticide and special field. It can also fill into tube sealed, The filler is ideal paste and liquid filler

Feature

1.This machine structure is simple and reasonable, manual easy operation, without any energy.

2.Equipped with filling quantity adjusting device knob, quantitative filling, quantitative filling and filling speed all can manually control.

3.The manual filling machine is specially designed by our factory for medium or small size enterprises, lab, hospital or beauty parlor in daily use chemical section. Its configuration is compact ,acts agility and easy to use.

all the parts which dip in the material l are made of stainless steel.

Technological parameter

Material of machine Stainless steel 304

Filling Range5-50 ml

Capacity of Hopper10 kg

Filling speed 20-30times/min (It varies from person to person)

Net weight:13 kg

Gross weight:20 kg

Machine size:270x270x700 mm

Packing size: 340×360×790 mm

 Spare parts

1 Nozzles2 pcs

2 0-Ring2 pcs

3 Guide Manual1 pcs

4 Hexagon2 pcs

5 Screwdriver 1 pcs
