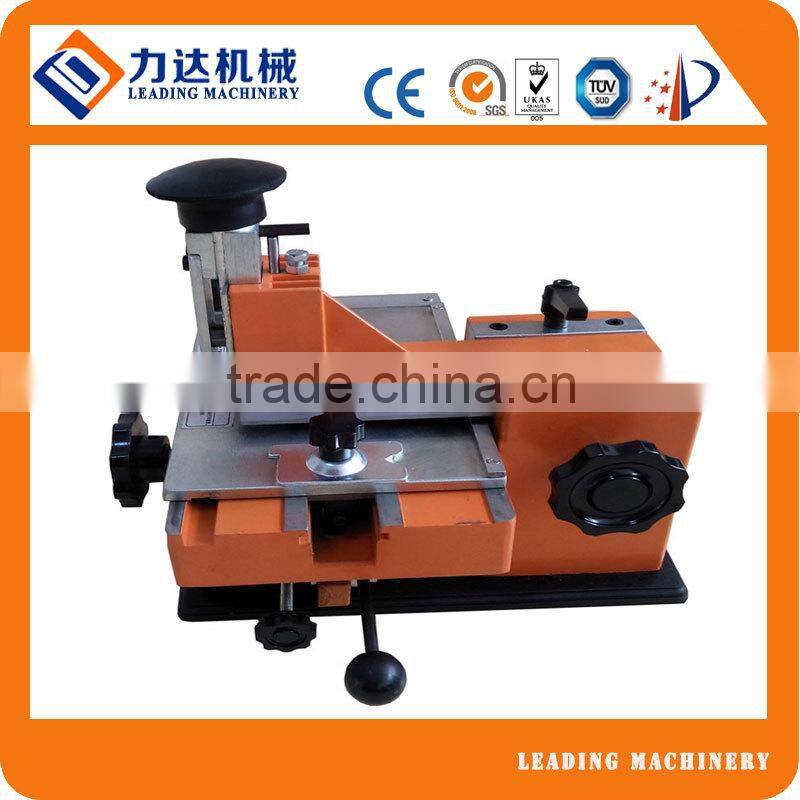

Help CenterMetal Tag Printing Machine
Related Products
-
Metal Surface Printing MachineUS$ 200 - 300MOQ: 1 Set -
MT-50P Automatic Round Bottle Labeling Machine With Code PrinterUS$ 700 - 1,200MOQ: 1 Set
-
MT-50P Automatic Automatic Round Bottle Labeler Machine With Code PrinterUS$ 700 - 1,200MOQ: 1 Set
-
MT-50P Automatic Round Bottle Labeler MachineUS$ 700 - 1,200MOQ: 1 Set
-
MT-50P Automatic Round Bottle Label Sticker MachineUS$ 700 - 1,200MOQ: 1 Set
Product Application
Applied in all metallic or nonmetallic nameplate printing, such as aluminum, copper, stainless steel, plastic. It is mainly used in machinery, electric, valve, pump, car, motor, etc.
Main Usage
Printing contents: model number, date, batch number, serial number,etc
Requires: nameplates or tags can be printed by holding when its size range is less than 200m*130mm.
Working Principle
When the alloy steel character plate, which is already from high frequency quenching heat treatment , receives a force (such as manually pressed or pounded with a rubber hammer) , the letters or numbers will be printed with the depth of 0.1m-0.3m on the nameplates.
It is easy to operate and print whatever content or position you want by turning the character plate.
Besides, different character size can be achieved by replacing the different plate.
Technical Parameters
Character plate Material |
Imported CR TOSG |
Character plate Hardness |
HV58 |
Character plate outside diameter |
80mm |
Character plate inside diameter |
14mm |
Character plate thickness |
6mm |
Letter size |
2mm-6mm |
Objective materials |
Iron, aluminum, copper, stainless steel, plastic,etc |
Marking Content |
Letter: A B C D E F G H I J K L M N 0 P Q R S T U V W X Y Z Number: 1 2 3 4 5 6 7 8 9 0 Symbols:·× / - |
Life of Character plate |
more than 200,000 times continuously printing on steel nameplate |
Letter Size
Please inform us the size you need before you place the order.
Character plate letter size |
Height*width |
2.0mm character plate |
2.0mm*1.1mm |
2.5mm character plate |
2.5mm*1.3mm |
3.0mm character plate |
3.0mm*1.6mm |
4.0mm character plate |
3.0mm*2.1mm |
5.0mm character plate |
5.0mm*2.6mm |
6.0mm character plate |
6.0mm*2.8mm |
