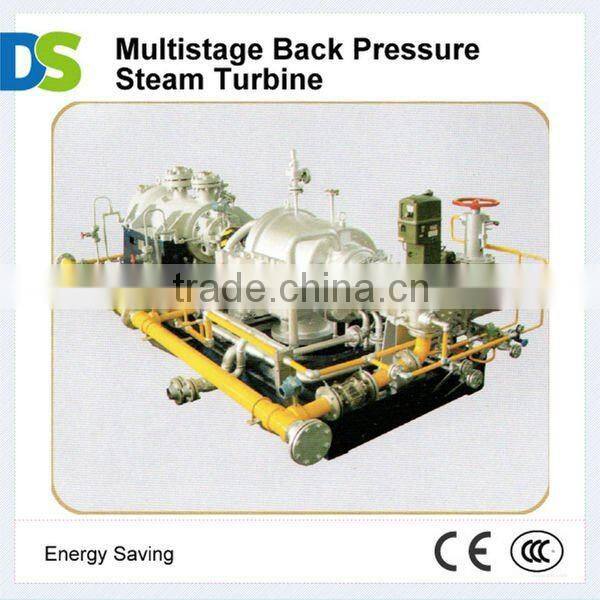

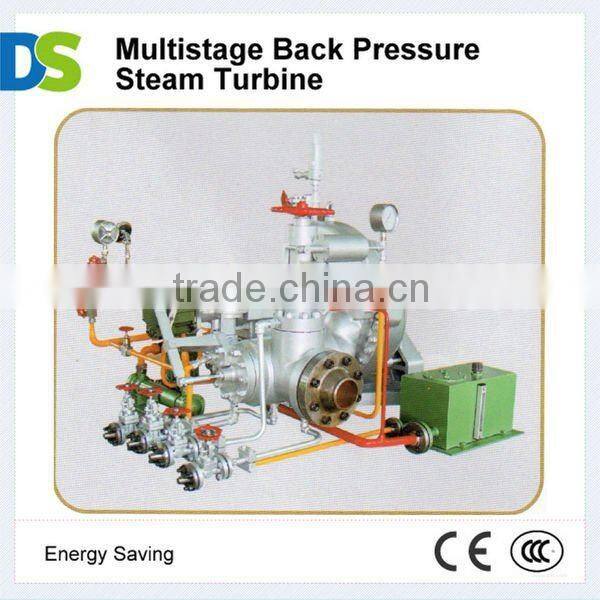

Multistage Back Pressure Steam Turbine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1 Set / Sets per Month
Port ShangHai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	D&S
Output Power	15 ~ 1000KW

Product Description

Specifications

1.Output power: up to 10000KW
2.Max Speed: under13020r/min
3.Inlet pressure: up to 4.9MPa
4.Inlet temperature: up to 455deg

Name:Multistage Back Pressure Steam Turbine

Performance range:

Output power: up to 10000KW

Max Speed: up to 13000r/min
Inlet pressure: up to 4.9MPa

Outlet pressure: up to 2.1MPa

Maximum Output:up to 10MW

Inlet temperature: up to 455degree

Maximum Stage: 7

Summary

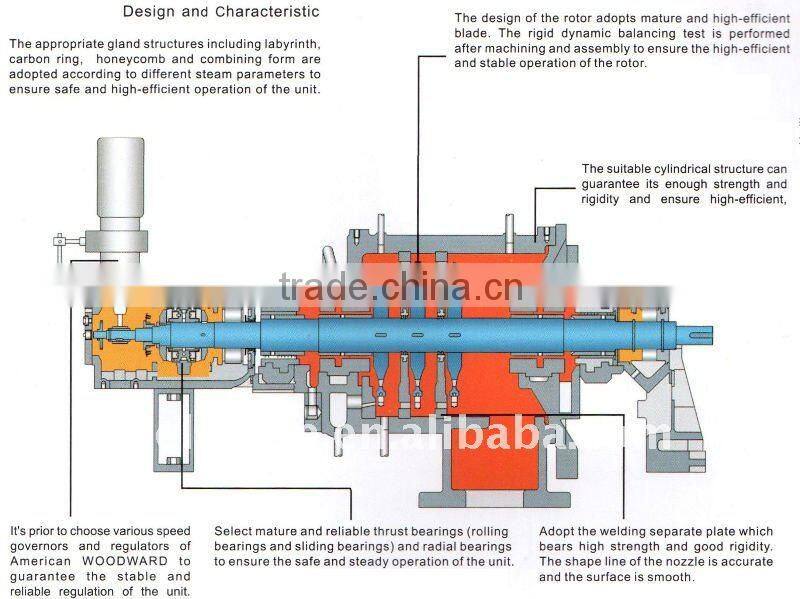

Multi-stage back pressure steam turbine (equipped with gear reduction unit) is mainly used in industrial driving air-blower, compressor, pump and so on, and can also be used to drag generating set. It adopts various optional modes of regulation, such as electrohydraulic control system, machinery hydraulic pressure system and so on. And also, it is equipped withsome safe facilities of different functions. Wha't more, according to the terse construction and high efficiency.

Application

Mainly used in driven pumps, compressors, blowers and small generators of electric power, petroleum, chemical, paper-making and other industries, and it can be used for electric power production by waste heat recovery.
