Specifications
1) Low noise and safety2) Efficient and clean
3) Long serve life (15-20 years)
4) CE certification
Parameter:
Rated power | 3kw | Class of insulation | B |
Max power | 4kw | Material of enclosure | 20# seamless tube |
Blades diameter | 4.5m | Material of magnet steel | neodymium-iron-boron 38sh |
Max start torsional moment n/m | 1.0 | Material of stator | QZY-2/180/470 |
Rated revolution (r/min) | 240 | Corrosion prevention | Zinc coated,painting |
Rated wind speed | 9(m/s) | Blades shape | 3 FRP blades |
Star wind speed | 3(m/s) | Over speed protection | Yaw automatically ,electromagnetism protection |
Working wind speed | 3-25(m/s) | Suggest batteries | 10pcs 12v200ah |
Security wind speed | 50(m/s) | Service life | > 15 years |
Ideal wind speed | 4-14(m/s) | Support loads | Air conditioner,refrigerator,washing machine,water pump,electric cooker,color TV,lighting,electric fan,charging,warming,induction cooker,computor,communication equipment,electric tools. |
Output voltage(DC) | 120v | ||
Height of tower(m) | 9 | ||
Top weight (kg) | 120 | ||
Output Control system | Wind solar hybrid controller,inverter | ||
Mated solar panel | 120v600w-1200w |
|
|
Summary:
The vertical axle start up by breeze,the advanced "Z"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power:
Air-conditioning, refrigerator, washing machine, water pump, rice cooker color TV, lighting, electric fan, charger etc.

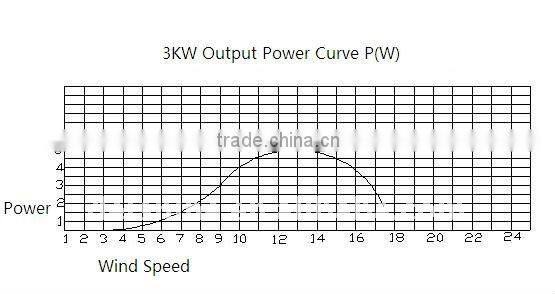

Power diagram:
Connecting:
Other schemes of commutation of the wind turbine generators are possible
Spare parts:
Certificate:
Connecting with solar system:

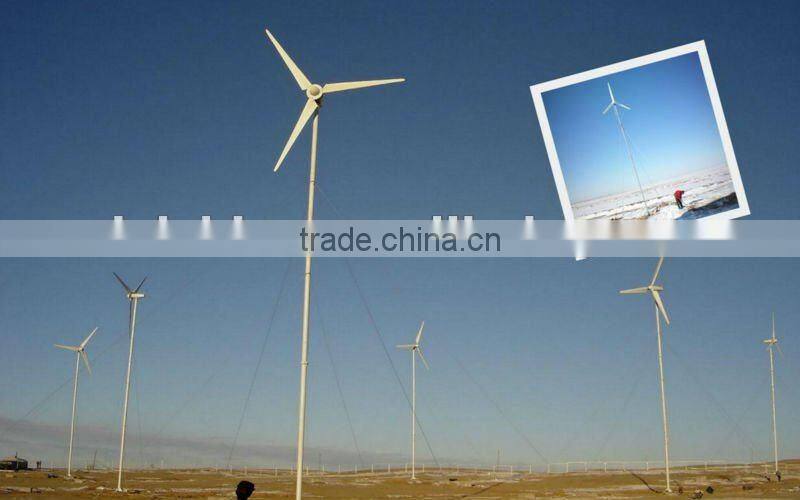

Wind turbine:
