Help CenterH 280V 5KW Horizontal Wind Micro Turbine Generator
Related Products
-
H 280V 5KW Horizontal Wind Turbine Engine GeneratorNegotiableMOQ: 1 Set -
V 10KW Vertical Axis Low Rpm Wind GeneratorNegotiableMOQ: 1 Set
-
V 10KW Vertical Axis Low Rpm Wind Turbine GeneratorNegotiableMOQ: 1 Set
-
V 10KW Vertical Axis Low Rpm Wind Turbine GeneratorNegotiableMOQ: 1 Set
-
V 10KW Vertical Axis Wind Power GeneratorNegotiableMOQ: 1 Set
Specifications
1) Low noise and safety2) Efficient and clean
3) Long serve life (15-20 years)
4) CE certificate
Parameter
Rated power |
5kw |
Class of insulation |
B |
Max power |
6kw |
Material of enclosure |
20# seamless tube |
Blades diameter |
5m |
Material of magnet steel |
neodymium-iron-boron 38sh |
Max start torsional moment n/m |
1.2 |
Material of stator |
QZY-2/180/470 |
Rated revolution (r/min) |
220 |
Corrosion prevention |
Zinc coated,painting |
Rated wind speed |
9(m/s) |
Blades shape |
3 FRP blades |
Star wind speed |
3(m/s) |
Over speed protection |
Yaw automatically ,electromagnetism protection |
Working wind speed |
3-25(m/s) |
Suggest batteries |
16pcs 12v200ah |
Security wind speed |
50(m/s) |
Service life |
> 15 years |
Ideal wind speed |
4-15(m/s) |
Support loads |
Air conditioner,refrigerator,washing machine,water pump,electric cooker,color TV,lighting,electric fan,charging,warming,induction cooker,computor,communication equipment,electric tools. |
Output voltage(DC) |
192v |
||
Height of tower(m) |
9 |
||
Top weight (kg) |
180 |
||
Output Control system |
Wind solar hybrid controller,inverter |
||
Mated solar panel |
192v1000w-2400w |
|
|
Summary
The vertical axle start up by breeze,the advanced "C"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power
Air-conditioning, refrigerator, washing machine, water pump, rice cooker color TV, lighting, electric fan, charger etc.
Power diagram
Connect with the net:
Wind and solar systems:
Certificates:

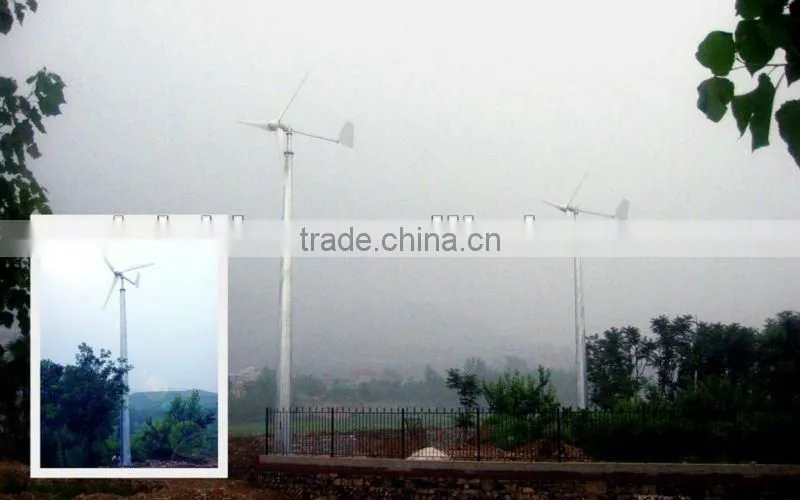

The turbine:
Spare parts:
