Help CenterV 3KW Vertical Axis Wind Power Generator
Related Products
Specifications
-- no noise-- safety
-- Efficient and clean
-- Long serve life (15-20 years)
-- CE
Working Condition:
Rated Power |
3000w |
Insulation |
B |
Maximum power |
3600w |
Housing Material |
20 # seamless steel pipe |
The length of the wind wheel |
3m |
Magnet material |
NdFeB 38sh |
Maximum starting torque n / m |
1.1 |
The stator material |
QZY-2/180/470 |
Maximum starting torque n / m |
120 |
Anti-corrosion measures |
Galvanized, spray paint |
Rated speed (r / min) |
12(m/s) |
Leaves in the form |
5 high-strength glass fiber reinforced blades |
Rated wind speed |
3(m/s) |
Over-speed protection |
Electromagnetic protection |
Start up wind speed |
3-25(m/s) |
Suggested supporting battery |
12v100ah10pcs |
Safty wind speed |
50(m/s) |
Life |
15years |
Ideal wind speed |
4-15(m/s) |
Can supply power |
Air conditioners, refrigerators, washing machines, water pumps, rice cooker, color TV, lighting, fans, charging, heating, cooker, base stations, computers, power tools and so on. |
Output voltage |
120v |
||
Tower height (m) |
10 |
||
The top mass (kg) |
190 |
||
Output Control |
Controllers, inverters |
||
Reasonable supporting solar panels |
120v 600w-1200w |
|
|
Summary:
The vertical axle start up by breeze,the advanced "V"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power:
Air-conditioning, refrigerator, washing machine, water pump, rice cooker color TV, lighting, electric fan, charger etc.
Power diagram:
Solar and wind system:
Connecting with the net:
Certificate:

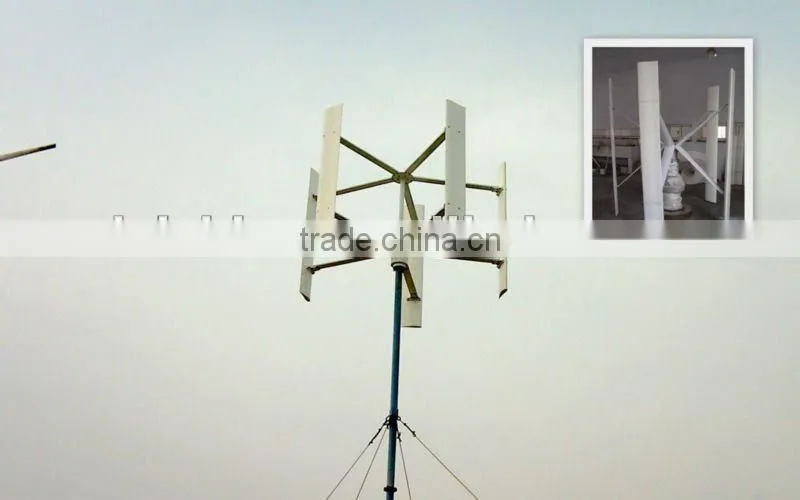

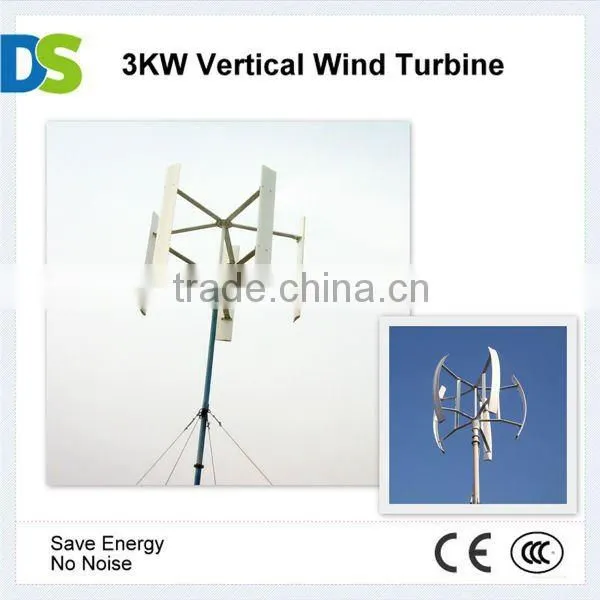

Wind turbine:
In package:
