Specifications
1) Low noise and safety2) Efficient and clean
3) Long serve life (15-20 years)
4) CE certificate
Parameter:
Type | 5000W |
Blade diameter | 3.7m |
The number of leaves | 5 |
Blade length | 3.7 |
Material of the blades | Fiberglass-Reinforced Plastic |
Rated rotor speed | 120r/min |
Rated speed | 12m/s |
Rated Power | 5000W |
Max Power | 6000w |
Max start torsional moment n/m | 1.6 |
Output voltage | 192V |
Start up wind speed | 3(m/s) |
Work speed | 3-25(m/s) |
Security wind speed | 50(m/s) |
Generator style) | 3-phase AC PM |
Top quality except tower | 400kg |
Service life | 15 years |
Output controller system | On--controller,On--grid inverter |
Class of insulation | B |
Material of enclosure | 20# seamless tube |
Material of magnet steel | N38SH neodymium-iron-boron 38sh |
Material of stator | QZY-2/180/470 |
Corrosion prevention | Zinc coated,painting |
Blades shape | 3 FRP blades |
Over speed protection | electromagnetism protection |
Summary:
The vertical axle start up by breeze,the advanced "V"type blades,exert the "wind force theory" completely,flexible "wind hole"device,make the wind energy transform rate achieve the maximal use.
Supply Power:
Air-conditioning, refrigerator, washing machine, water pump, rice cooker color TV, lighting, electric fan, charger etc.
Power diagram
Connecting:
Drawing:
Certificate:
Connecting with solar system:

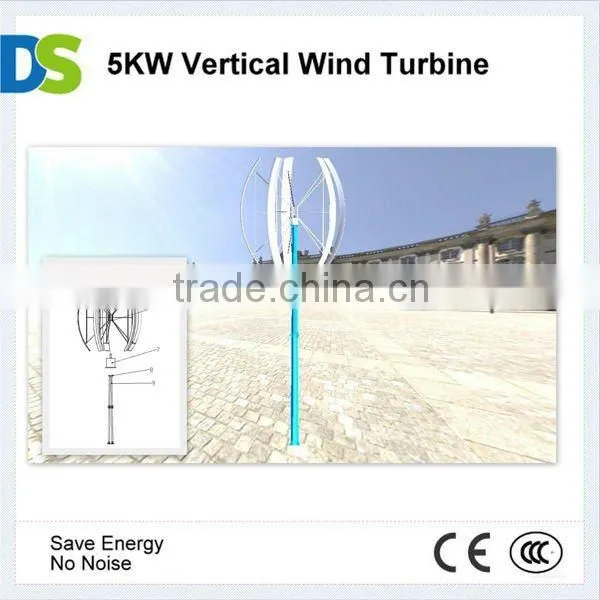

Wind turbine:
