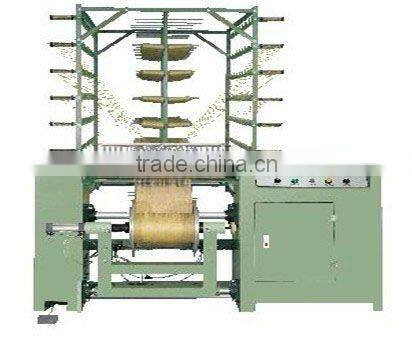

Yarn Pneumatic Warping Machine

Specifications

 Product name: Pneumatic Warping Machine/Yarn warping machine

2). Function: Be used in warping kinds of unelastic yarn in high quality. Such as terylene, spandex, nylon, pp yarn and so on.

3). Feature:
a) With pneumatic device.the creel positions can be changed.

b) Applicable in materials: Terylene, Spandex, Nylon, PP etc.

c) Applicable beam size: Φ350x255mmΦ400x255mm

d) Reliable and efficient after-sales service

e) Full-year parts warranty period and prompt supply

f) Free-charge technical training

g) Whole-plant equipment export and technology transfer.

h) We can provide R&D services as per customers' requests

4) Technical Parameter:
   MACHINE NAME                                           CREEL PLACE      H.P.MOTOR        MAX.R.P.M.
HKT-W301 Pneumatic Warpping Machine               128                     1.5HP                600m/min
HKT-W302 Pneumatic Warpping Machine               154                     1.5HP                600m/min
HKT-W303 Pneumatic Warpping Machine               196                     1.5HP                600m/min


The yarn warping machine series can warping kinds of unelastic yarn in high
quality.Materials:terylene,spandex,nylon.pp and so on.
Aplicable beam size: Φ Φ350*225  Φ400*225
HKT-W Series Specification
Model 301 302 303
Ccreel Place 128 154 196
Motor 2 Hp
Max Warping Speed 600 m/min
Max Dia of Beam  Φ 400
Max Length of Beam 300
Normal Attatchment Yarn passing device,yarn automatic stop devic,counter,transducer
Optional Attatchment Oil pressure yarn passing device,air compressor,other beam sizes,creel places
