vertical injection molding machine
USD $3,500 - $10,000
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Tube Shoulder Injection | |
| Style | Vertical | Brand Name | zhiteng | |
| Model Number | HKT-35T | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | No | |
| Injection Weight | 65g/s ~ 83g/s | Injection Rate | 48cm3/sec ~ 68cm3/sec | |
| Clamping Force | 35T | Opening Stroke | 125mm | |
| Power(W) | 4kw | Certification | ISO 9001:2008 ce | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

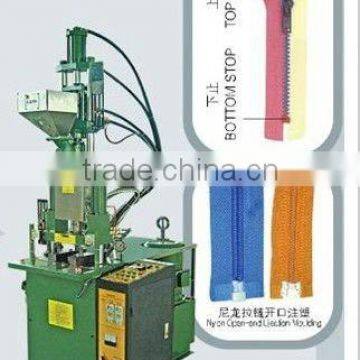

vertical injection molding machine
FEATURES:
1.vertical mould opening/closing,vertical injeciong,suitable for plastic injection with embedded parts
2.fast closing mould,safe low-pressure clamping mould,automatically opening mould at abnormality
3.automatic display of error,easy to maintain
4.famous brands for the components of electric and hydraulic systems,quiet delicate,durable
5.multi-stage control of temperature and injection pressure,injection speed and back pressure infinitely variable,suitable for delicate product.
6.Ejector as standard layout
OPTIONAL DEVICE:
1.Infrared safety device
2.Mould automatically thermostatic device
3.Leak-proof spring nozzle
4.Automatic material dryer and feeder
5.Sliding dieholder
6.Full-computerized screen display
7.Double proportion hydraulic control
SPECIFICATIONS:
| Model | Unit | HKT-35T | |||
INJECTION UNI | Screw Diameter | Mm | φ26 | φ28 | φ30 |
| Injection Pressure | Kg/cm2 | 1540 | 1446 | 1230 | |
| Theoretical shot Volume | Cm3 | 60 | 64 | 74 | |
| Max.Shot Weight(ps) | g/0z | 65/2.3 | 72/2.5 | 83/2.9 | |
| Injection Rate | cm3/sec | 48 | 56 | 68 | |
| Screw Stroke | mm | 125 | |||
| Max Screw Speed | rpm | 0-125 | |||
| Nozzle Contact Force | Tons | 4.5 | |||
| Nozzle Retraction Stroke | mm | 170 | |||
| Stages of temperature control | 3 | ||||
CLAMPING UNIT | Clamping Force | Tons | 30 | ||
| Platen Size | mm | 500*340 | |||
| Distance between columns | mm | 360*200 | |||
| Min.mould thickness | mm | 145/60 | |||
| Opening Stroke | mm | 215 | |||
| Max.mould Opening Distance | mm | 360/275 | |||
| Ejector force | Tons | 1.7 | |||
| Ejector stroke | mm | 35 | |||
ELECTRIC UNIT | Max.Hydaulic Pressure | Kg/cm2 | 140 | ||
| Oil pump output | L/min | 31 | |||
| Cooling Water Consumption | L/h | 500-700 | |||
| Pump Motor | kw | 3.75(5HP) | |||
| Barrel heating power | kw | 2.4 | |||
| Total wattage | kw | 6.2 | |||
| OTHER | Machine Weight Net | kg | 1150 | ||
| Machine Dimensions(L*W*H) | M | 1.2*0.8*2.3 | |||
| Shipping Weight Gross | kg | 1350 | |||
| Shipping dimensions(L*W*H) | m | 1.5*1.0*2.3 | |||
