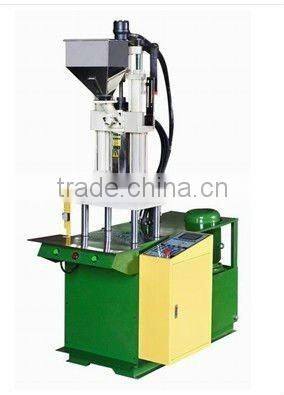

injection molding machine
machine information :
1. The clamping force: 15 T-55 T
2. Shoot dosage: 35 g-155 g
3. Can be suitable for all kinds of AC, DC, fire cows, acoustics, plug class, the film, zipper piece etc products series molding operation.
4. Electricity burger screw, PVC acid.
5. Lower die fixed, the upper die activities, suitable for embedded a injection molding.
6. Nitriding steel screw, feed tube, high torque hydraulic motor drive, more paragraphs of injection pressure, plasticizing good performance.
7. Direct pressure clamping cylinder zimu design, high speed low voltage molmerged, multiple pressure control and improve the service life of die, high safety.
8. Electrical protection device, and correct action happens, maintenance personnel security operation.
9. Shoot a can be easily lift, convenient mould, raw material replacement.
machine parameter:
| INJECTION UNIT | Screw Diameter | mm | Φ25 | Φ28 | Φ30 | |
| Theoretical Injection Volume | cc | 54 | 68 | 78 | ||
| Injection Weight(PS) | g(oz) | 49(1.7) | 62(2.2) | 71(2.5) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 178(1814) | 142(1442) | 123(1260) | ||
| Injection Rate | cc/sec | 51 | 63 | 73 | ||
| Injection Speed | mm/s | 103 | ||||
| Screw Speed Rotation | r.p.m | 10-300 | ||||
| Nozzle Out From Platens | mm | 110 | ||||
| CLAMPING UNIT | Clamping Force | KN(tf) | 343(35) | |||
| Clamping Stroke | mm | 180 | ||||
| Min.Mold Thickness | mm | 150/210 | ||||
| Max.Opening | mm | 330/390 | ||||
| Distance Between Tie Bars | mm | 355*205 | ||||
| Max Mould Size | mm | 350*300 | ||||
| Ejector Force | KN(tf) | 13.2(1.35) | ||||
| Ejector Distance | mm | 35 | ||||
| System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 130 | ||||
| Electric Power | KW(HP) | 5.5(7.5) | ||||
| Heater Power | KW | 2.7 | ||||
| Machine Dimensions (L*W*H) | m | 1.6*1.1*2.8 | ||||
| Machine Weight | tf | 1.3 | ||||
