Specifications

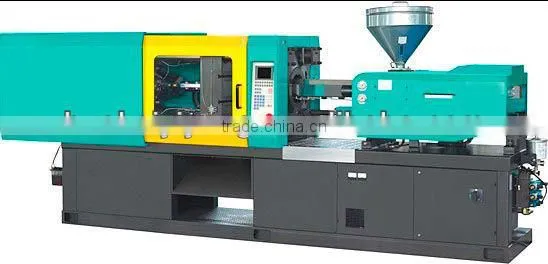

Plastic Injection MachineHKT Series plastic injection molding machines able to save 30%-50% electric power consumption
technical parameters
HKT-M6/90T | ||||
International size rating | 275/90 | |||
INJECTION | A | B | C | |
Shot volume | cm3 | 113 | 154 | 181 |
Shot weight | G | 106 | 144 | 170 |
OZ | 3.7 | 5.1 | 5.9 | |
Screw diameter | mm | 30 | 35 | 38 |
Injection pressure | mpa | 243 | 179 | 152 |
Screw L:D ration | 20:1 | 20:1 | 18:1 | |
Screw stroke | mm | 160 | ||
Screw speed(stepless) | r/min | 0-180 | ||
CLAMPING UNIT |
| |||
Clamping force | kn | 900 | ||
Opening stroke | mm | 320 | ||
Platen size | mm×mm | 540×540 | ||
Space between fie bars | mm×mm | 360×360 | ||
Mold fhickness(Min-Max) | mm | 150-360 | ||
Max.daylingt | mm | 680 | ||
Hydraulic ejection stroke | mm | 100 | ||
Hydraulic ejection force | kn | 31 | ||
POWER UNIT |
| |||
Hydraulic system pressure | mpa | 16 | ||
Pump motor | kw | 9 | ||
Heating capacity | kw | 6.5 | ||
Number of femp confrol zones |
| 3+ nozzle | ||
GENERRL |
| |||
Dry-cycle fime | sec | 1.1 | ||
Oil fank capacify | λ | 160 | ||
Machine dimensions | m×m×m | 4.5×1.1×1.7 | ||
Machine weight | kg | 3500 | ||
DENOMINATION | MANUFACTURER OR BRAND | PLACE OF ORIGIN |
PROPORTIONAL VARIABLE PUMP | YUKEN | JAPAN |
OIL MOTOR | INTERMOT | ITALIAN JOINT VENTURE |
DIECTION VALVE | VICKERS | AMERICA |
COMPUTER | TECHMATION 9118 | TAIWAN |
AUTOMATIC SWITCH | SCHNEIDER | FRANCE SCHNEIDER |
THERMALRELAY,PROXINITY SWITCH | SCHNEIDER | FRANCE SCHNEIDER |
AC CONTACTOR | SCHNEIDER | SHANGHAI SCHNEIDER |
POSITION SWITCH | SCHNEIDER | FRANCE SCHNEIDER |
ELECTRONIC RULER | NOVO | GERMANY |
SINGLE-POLE,DOUBLE-POLE SWITCH | ABB | BEIJING ABB |
SEALING ELEMENTS | HALLITE | UK |
THREE-POLE SWITCH | SHINEIER | FRANCE |
PRESSURE GAGE | DMASS | GERMANY |
LUBICATION PUMP | HERG | JAPANESE JOINT VENTURE |
General special engineering items:
1,core pull fittings;
2,special screw(bimetal, chroming,special materials );
3,air blowing valve;
4,large pump;
5,large condenser;
6,various computer model for choosing;
7,proportional back pressure adjusting device;
8,hydraulic protection;
9,large motor;
10,cooling water distributor;
11,nozzle shield and senor;
12,automatic safety door;
13,extended nozzle
More special engineering items will be designed according to clients’ different requirements.
