Double Glue Groove Laminating Machine

Name: Double Glue Groove Laminating Machine
Brand: EOMAE
SKU: 131675161
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Medical, Chemical, Textiles

Packaging Type:

Case

Yancheng Xinzhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Medical, Chemical, Textiles

Packaging Type Case

Packaging Material Wood

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage Customizable

Power 35.5 KW

Place of Origin Jiangsu, China

Brand Name EOMAE

Model Number LN-Double Glue Groove

Dimension(L*W*H) 8800mm x 2700 x 2600 mm

Weight 3600 KGS

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

* Double Glue Groove
* Water based glue
* Easy to operate
* Superb processing
* Thoughtful after-sales service

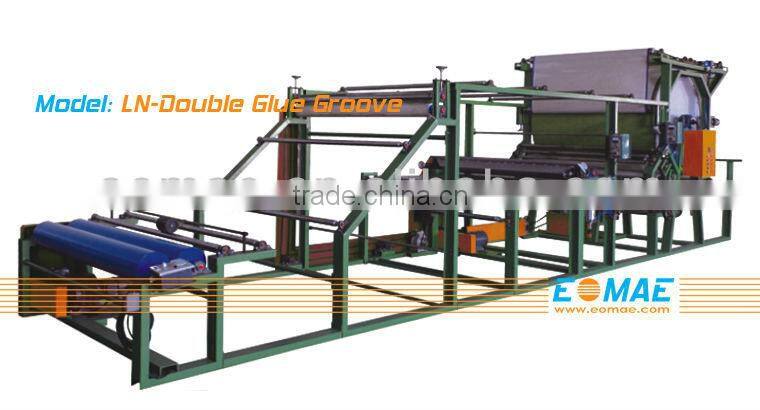

LN - Double Glue Groove Laminating Machine

Applications

Used for gluing material and laminating with other materials, suitable for laminating sponge, cloth, nonwoven, plastic, leather, synthetic leather...
Gluing two layers of material at the same time;
Laminating 3 layers of thin material at the same time;
Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.

Key Features

Applicable to water-based glue;
Equipped with double glue groove, can glue two layers of material at the same time, so as to enhance adhesive fastness. It can also be used for laminating 3 layers of thin material at the same time;
Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness;
Equipped with two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs;
Surface of the drying cylinder is coated with Teflon to avoid glue;
Pneumatically controlled or handwheel controlled clamp roller;
Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life;
Efficient cooling unit is suitable for various materials;
Low maintenance cost and simple to maintain.

Options

Main Technical Data

Model:	LN- Double Glue Groove
Working Width:	1800 mm
Drying Cylinder Diameter:	1500 mm
Drying Cylinder Width:	2000 mm
Heating Tube Inside Drying Cylinder:	30 PCS x 1.0 KW
Running speed:	1-40 m/min
Power:	35.5 KW
Net Weight:	3600 KGS
Dimension:	8800 x 2700 x 2600 mm
